Siemens 6ES7193-6BP00-0DA0 Overview

The 6ES7193-6BP00-0DA0 is a high-performance BaseUnit belonging to Siemens’ SIMATIC ET 200SP product series, engineered for seamless integration into distributed I/O systems in industrial automation environments. Classified as Type A0, this base unit features push-in terminals that enable fast, tool-free wiring, significantly reducing installation time and labor costs for on-site technicians.

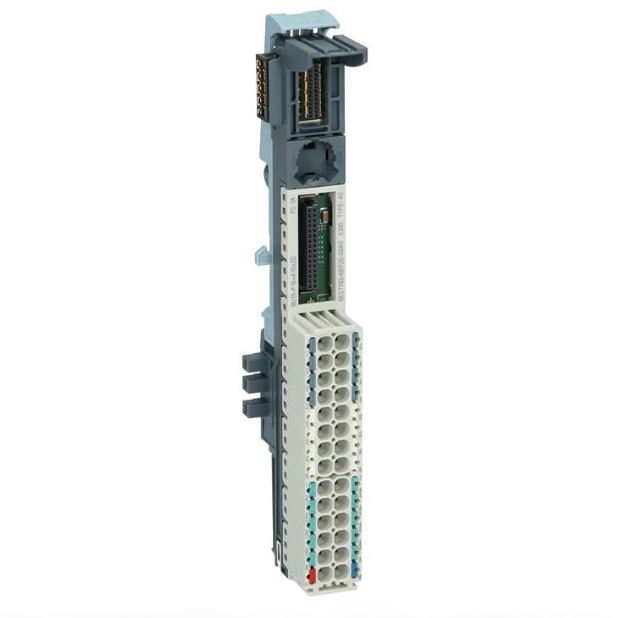

Figure 1 shows the front panel of 6ES7193-6BP00-0DA0.

6ES7193-6BP00-0DA0 SIMATIC ET 200SP BaseUnit Type A0, Push-in Terminals, 15×117mm









6ES7193-6BP00-0DA0 SIMATIC ET 200SP BaseUnit Type A0, Push-in Terminals, 15×117mm















Quick Specs.

Table 1 shows the Quick Specs.

Item Specification
Product Model 6ES7193-6BP00-0DA0
Product Type SIMATIC ET 200SP BaseUnit, Type A0
Terminal Type Push - in, no AUX terminals
Max Current(P1/P2 Bus) 10 A
Max Current(Process Terminal) 2 A
Dimensions(W×H×D) 15×117×35 mm
Supply Voltage 24 V DC




Detailed Specifications
Category Parameters
Product Identification Order Number: 6ES7193-6BP00-0DA0

Product Name: SIMATIC ET 200SP BaseUnit BU15-P16+A0+2D, BU type A0, push-in terminals, without aux. terminals, new load group, WxH: 15x 117 mm
Basic Characteristics Product Series: SIMATIC ET 200SP

Base Unit Type: A0

Terminal Type: Push - in

Auxiliary Terminals: None

Load Group: New load group
Electrical Specifications Supply Voltage: 24 V DC

External Protection: 24 V DC/10 A miniature circuit breaker (type B or C tripping characteristic)

Current Carrying Capacity(P1/P2 Bus): 10 A (max)

Current Carrying Capacity(Process Terminals): 2 A (max)

Isolation: Tested with 707 V DC (type test)

Mains Filter: Integrated
Hardware Configuration Number of Slots: 1 (Type A0)

Potential Groups: New potential group, potential separation between groups

Potential Group Continuation: No (cannot continue from the left)
Mechanical Specifications Dimensions(W×H×D): 15×117×35 mm

Weight: 0.048 kg
Environmental Conditions Operating Ambient Temperature (Horizontal Installation): -30°C to +60°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% - 95% (non - condensing)
Connection Wire Range: 26-14 AWG

Connection Method: Push - in wire clamp
