Specifications
Brand Name :
Siemens
Model Number :
CP1L-EM30-DT1-D
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
CP1L-EM30-DT1-D
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
CP1L-EM30-DT1-D
Description
Siemens CP1L-EM30-DT1-D Overview

The Omron CP1L-EM30-DT1-D is a high-performance compact PLC CPU unit belonging to the Sysmac CP1L-EM series, engineered for industrial automation control applications. It integrates 18 digital inputs and 12 PNP digital outputs with a 24VDC power supply, and features a built-in Ethernet TCP/IP port for seamless high-speed communication and remote access, supporting Modbus-RTU protocol for flexible connection with industrial devices like inverters.

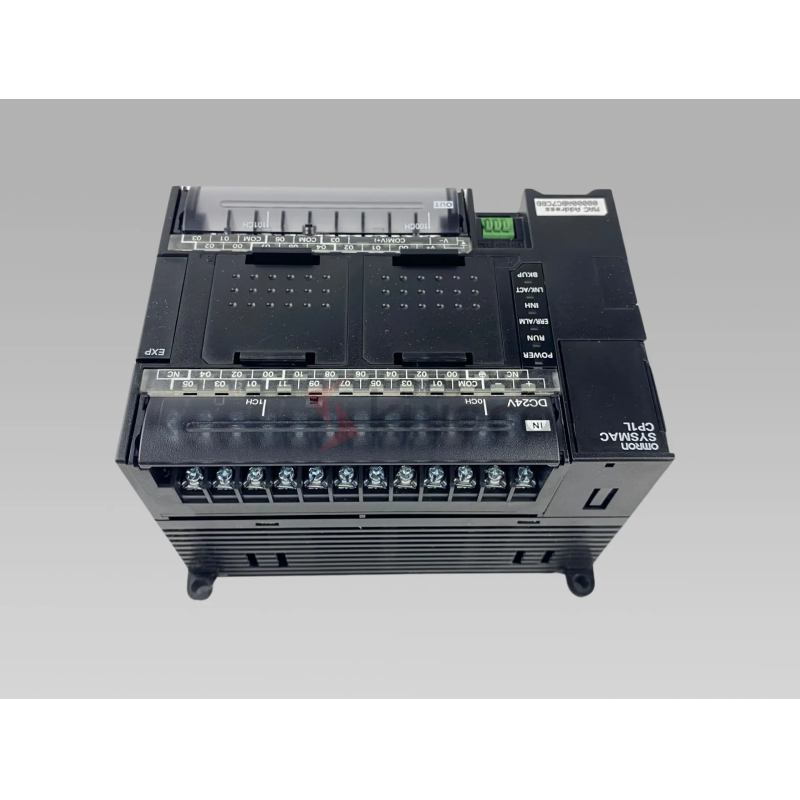

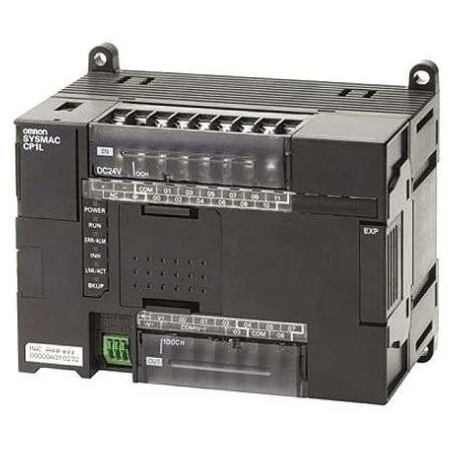

Figure 1 shows the front panel of CP1L-EM30-DT1-D.

Omron CP1L-EM30-DT1-D PLC CPU Unit 24VDC 18 Input 12 PNP Output with Ethernet








Omron CP1L-EM30-DT1-D PLC CPU Unit 24VDC 18 Input 12 PNP Output with Ethernet










Quick Specs.

Table 1 shows the Quick Specs.


Parameter Specification
Supply Voltage 24VDC (20.4-26.4VDC)
Digital Inputs 18 x 24VDC (PNP/NPN)
Digital Outputs 12 x PNP (0.3A)
Communication 1 x Ethernet TCP/IP Port
Program Capacity 20K Steps





Detailed Specification
Category Item Specification
Power Supply Supply Voltage Type DC

Voltage Range 20.4 ~ 26.4 VDC
I/O Configuration Digital Inputs 18 points, 24VDC (PNP/NPN compatible)

Digital Outputs 12 points, PNP type, 0.3A output current

High-speed Counter Inputs 4 channels, max 100kHz

Pulse Outputs 2 axes, max 100kHz
Memory Program Capacity 20K steps

Data Memory Capacity 32K words

Memory Backup Battery-free + Battery backup
Communication Main Port 1 x Ethernet TCP/IP

Optional Serial Ports RS-232C, RS-422, RS-485

Communication Protocol Modbus-RTU, Ethernet TCP/IP
Performance Logic Execution Time 0.55 µs (basic instructions)

PTP Axes Max 2 axes

Analog I/O Max Channels 34 channels (with option boards)
Physical Dimensions (W×H×D) 130×90×85 mm

Weight 455g (unpacked)

Mounting Type DIN Rail
Operation Operating Temperature 0 ~ 55 °C

Expansion Units Max 3 units

Local I/O Points Max 150 points
Functional Features Real-time Clock Built-in

Programming Language Ladder Diagram, Function Block

Display 7-segment display (built-in)
