Fanuc A06B-6102-H206 CNC Spindle Servo Amplifier 200-240V AC High Precision
Fanuc A06B-6102-H206 CNC Spindle Servo Amplifier 200-240V AC High Precision
Fanuc A06B-6102-H206 CNC Spindle Servo Amplifier 200-240V AC High Precision
Fanuc A06B-6102-H206 CNC Spindle Servo Amplifier 200-240V AC High Precision
Fanuc A06B-6102-H206 CNC Spindle Servo Amplifier 200-240V AC High Precision
Fanuc A06B-6102-H206 CNC Spindle Servo Amplifier 200-240V AC High Precision
Specifications
Brand Name :
Siemens
Model Number :
A06B-6102-H206 CNC
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
A06B-6102-H206 CNC
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
A06B-6102-H206 CNC
Description
Siemens A06B-6102-H206 CNC Overview
The Fanuc A06B-6102-H206 is a high-performance spindle servo amplifier module, the core power unit of Fanuc AC servo drive system for CNC equipment. It features advanced IGBT PWM control and high-precision vector control algorithm, which can realize independent and accurate control of motor torque and magnetic field, providing stable, high-torque and fast-response power output for AC servo motors. With 27A rated output current and 6.8KW rated power, it supports high-resolution serial pulse encoder feedback and high-speed serial bus communication with CNC controller, ensuring precise execution of motion instructions and realizing complex trajectory interpolation and accurate position control.

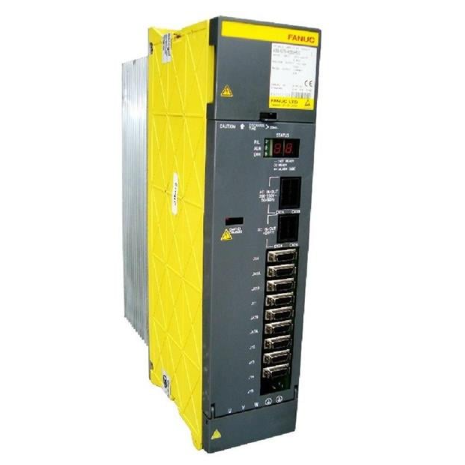

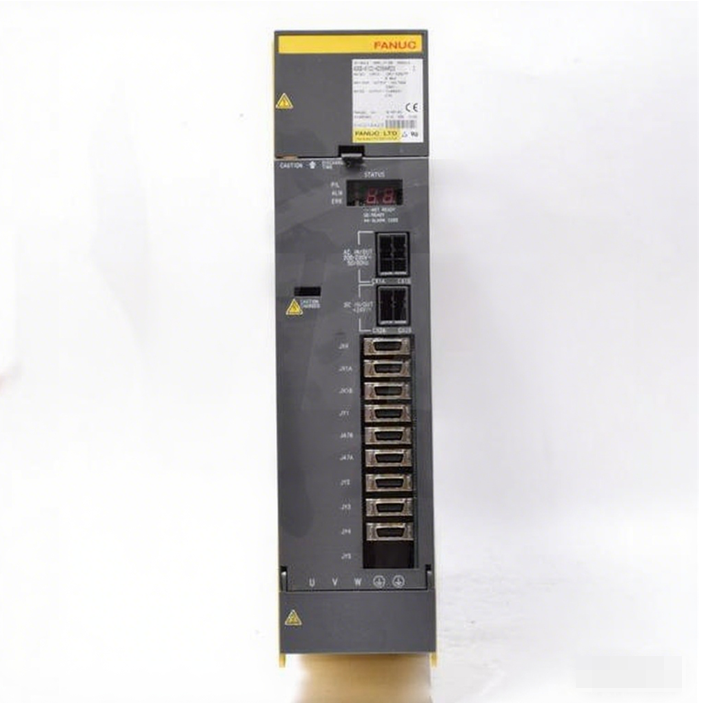

Figure 1 shows the front panel of A06B-6102-H206 CNC.

Fanuc A06B-6102-H206 CNC Spindle Servo Amplifier 200-240V AC High Precision







Fanuc A06B-6102-H206 CNC Spindle Servo Amplifier 200-240V AC High Precision













Quick Specs.

Table 1 shows the Quick Specs.

Parameter Value
Brand Fanuc
Type Spindle Servo Amplifier
Input Voltage 200-240V AC (3-Phase)
Rated Power 6.8KW
Rated Current 27A





Detailed Specification

Parameter Category Parameter Name Specification Value
Basic Info Model A06B-6102-H206
Basic Info Manufacturer Fanuc
Basic Info Product Type CNC Spindle Servo Amplifier Module
Electrical Specs Input Voltage 200V-240V AC (Three-phase)
Electrical Specs Rated Output Power 6.8KW
Electrical Specs Rated Output Current 27A
Electrical Specs Control Mode IGBT PWM Control
Interface Specs Feedback Interface High-resolution serial pulse encoder supported
Interface Specs Communication Interface High-speed serial bus (connect with CNC controller)
Protection Function Protection Type Overcurrent, overvoltage, overheating, short circuit protection
Mechanical Specs Protection Grade IP30
Mechanical Specs Mounting Method Modular rack mounting / 35mm DIN rail mounting
Mechanical Specs Net Weight 5.96KG
Working Env Operating Temperature 0°C ~ +55°C (no derating at 45°C)
Working Env Relative Humidity ≤90% (no condensation)
Applicable Motor Motor Series Fanuc AC Servo Motor (αi, βi series)
