Siemens 6AV6 545-0DA10-0AX0 MP 370 12 Overview

The Siemens 6AV6545-0DA10-0AX0 is a high-performance 12.1-inch SIMATIC MP370 Industrial HMI Touch Panel, engineered for mid-to-high level automation control and process visualization. Equipped with a 256-color TFT display (800×600 resolution) and resistive touch input, it delivers intuitive operator interaction and clear real-time process data display for industrial systems.

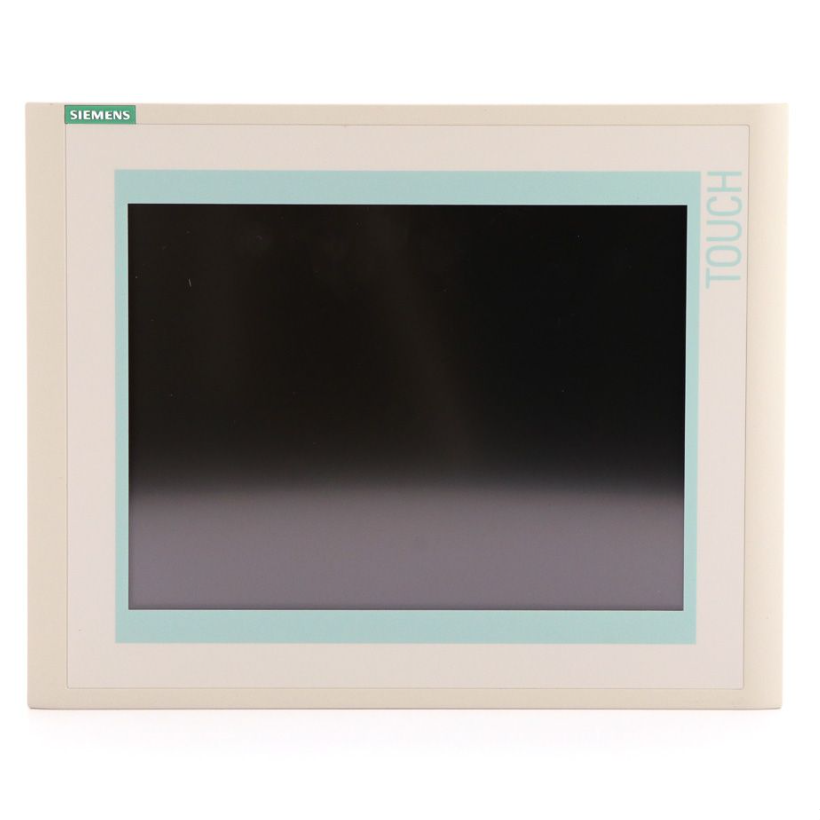

Figure 1 shows the front panel of 6AV6 545-0DA10-0AX0 MP 370 12.

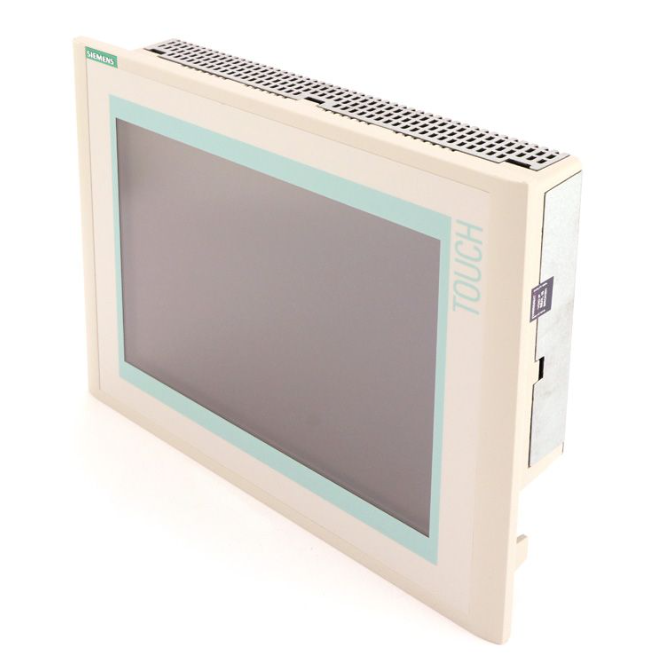

Siemens 6AV6545-0DA10-0AX0 MP370 12 HMI Touch Panel 12.1
Siemens 6AV6545-0DA10-0AX0 MP370 12 HMI Touch Panel 12.1





Quick Specs.

Table 1 shows the Quick Specs.

Parameter Specification
Screen Size 12.1" TFT
Resolution 800×600 Pixel
Protection IP65 (Front), IP20 (Rear)
OS Windows CE 3.0
Power Consumption 28W (Typ.)




Detailed Specification
Category Parameter Specification
Display Screen Type 12.1" Color TFT

Resolution 800 (H) × 600 (V) Pixel

Color Depth 256 Colors

Brightness 300 cd/m²
Operation Input Method Resistive Touch Screen

Operating System Windows CE 3.0

Config Software ProTool V5.2+SP3, WinCC Flexible

Runtime Languages Up to 5
Electrical Rated Current 1.15 A

Typical Power Input 28 W

Supply Voltage DC 24V
Memory User Data Memory 7168 KB

Memory Type Flash / RAM
Connectivity Interfaces MPI/DP/PPI, RS232, RS422/485, Ethernet, USB
Mechanical Dimensions (W×H×D) 335 × 275 × 59 mm

Net Weight 4.5 kg (9.80 lbs)

Mounting Cutout 310 × 248 × 59 mm
Environmental Operating Temperature 0°C to 50°C

Protection Rating IP65 (Front Panel), IP20 (Rear Panel)
Performance MTBF Backlighting (25°C) 50,000 h
Certification Compliance CE Certified
Siemens 6AV6545-0DA10-0AX0 MP370 12 HMI Touch Panel 12.1
Siemens 6AV6545-0DA10-0AX0 MP370 12 HMI Touch Panel 12.1
