Specifications
Brand Name :
Siemens
Model Number :
NS5-SQ10B-ECV2
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
NS5-SQ10B-ECV2
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
WQR12038HBL :
1 year
Keywords :
NS5-SQ10B-ECV2
Description
Sinamics NS5-SQ10B-ECV2 Overview

NS5-SQ10B-ECV2 is a 5.7-inch color touchscreen HMI from Omron’s NS5 series, designed for reliable machine control and monitoring in industrial environments.It features a bright TFT LCD with 320×240 resolution, rich I/O interfaces including Ethernet and USB, and IP65 front protection for dust and water resistance. Built for stable integration with automation systems, this panel supports easy programming via CX-Designer and delivers durable performance for factory automation, equipment operation, and process visualization.

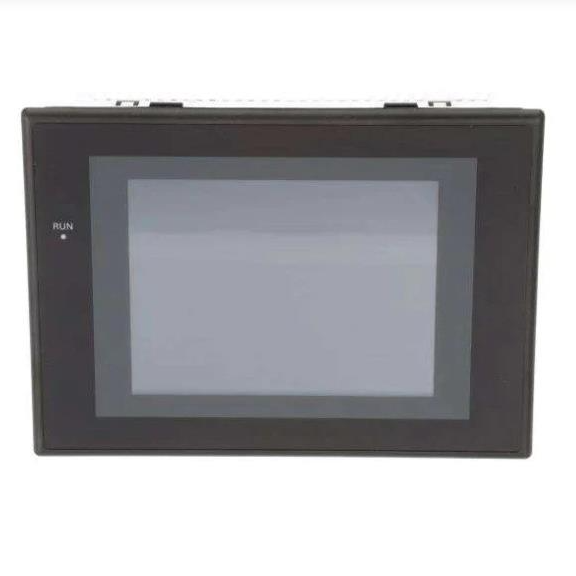

Figure 1 shows the front panel of NS5-SQ10B-ECV2.

Omron NS5-SQ10B-ECV2 5.7 Inch HMI Touch Screen Operator Interface Panel English Keywords










Omron NS5-SQ10B-ECV2 5.7 Inch HMI Touch Screen Operator Interface Panel English Keywords











Quick Specs.

Table 1 shows the Quick Specs

Item Specification
Model NS5-SQ10B-ECV2
Brand Omron
Display 5.7" TFT color LCD
Resolution 320 × 240
Power 24 VDC
Interface RS-232C, Ethernet, USB
Protection IP65, NEMA 4









Detailed Specification
Parameter Detail
Manufacturer Omron Automation and Safety
Product Type HMI Touchscreen / Operator Panel
Series NS5-V2
Display Size 5.7 inches
Display Type TFT color LCD, LED backlight
Resolution 320 × 240 pixels
Display Colors 32,768 colors
Input Type Resistive touch
Rated Voltage 24 VDC
Voltage Range 20.4–27.6 VDC
Power Consumption Max. 15 W
Communication Ports RS-232C, Ethernet, USB
Front Protection IP65, NEMA 4
Operating Temp 0°C ~ 50°C
Weight Approx. 1.1 kg
Certifications UL, CE, cULus
Part Status Obsolete
