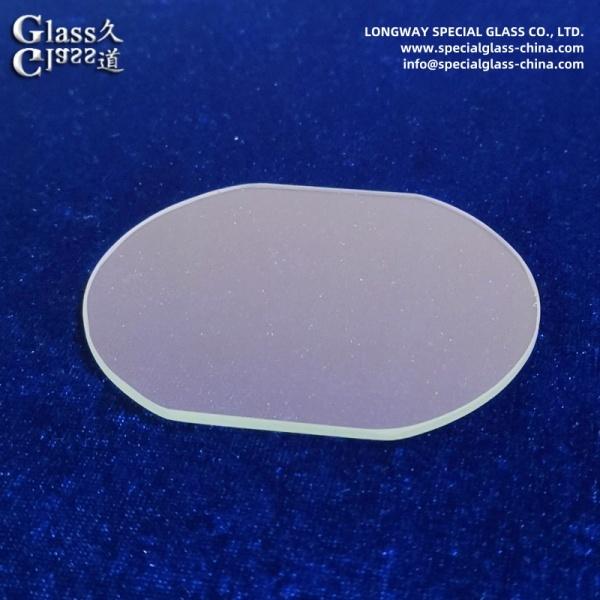

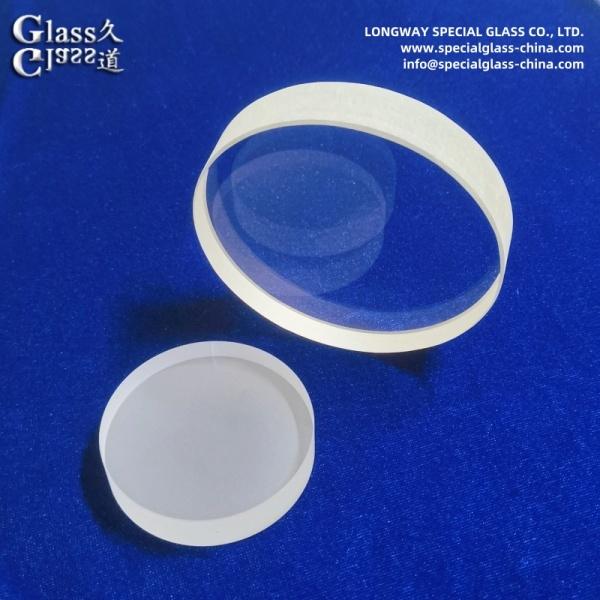

OEM Round Flat Optical Window - Glass Lens for Machine Vision & Laser Applications
OEM Round Flat Optical Window - Glass Lens for Machine Vision & Laser Applications
OEM Round Flat Optical Window - Glass Lens for Machine Vision & Laser Applications
OEM Round Flat Optical Window - Glass Lens for Machine Vision & Laser Applications
OEM Round Flat Optical Window - Glass Lens for Machine Vision & Laser Applications
OEM Round Flat Optical Window - Glass Lens for Machine Vision & Laser Applications
Specifications
Brand Name :
LONGWAY
Model Number :
LW24102634
Place of Origin :
Shanghai, China
MOQ :
1000 pieces
Price :
NEGOTIATION
Payment Terms :
D/P,T/T,Western Union
Supply Ability :
200000 Pieces per Month
Packaging Details :
paper,foam,carton
Shape :
Round, Flat
Surface :
Clear and transparent
Transmission :
over 90%
Processing :
Cutting and grind and tempering and polishing
OEM :
Available
Usage :
lighting and optics
Description



OEM Round Flat Optical Window - Glass Lens for Machine Vision & Laser Applications


1. Material

  • Optical-Grade Glass: Primarily borosilicate (BK7/K9) or UV-grade fused silica, selected for thermal stability and transmission properties 46.

  • Specialized Coatings: Custom anti-reflective (AR), laser-line (e.g., 532nm/1064nm), or protective coatings to enhance performance 45.

  • Customizable Substrates: Optional infrared (Ge, ZnSe) or crystal materials (sapphire) for niche applications .

2. Key Properties

  • High Transmission: >99% light transmission (coated) with minimal scatter or wavefront distortion (<λ/10 @633nm) .

  • Thermal/Mechanical Resilience: Resists thermal shock (ΔT >150°C), chemicals, and impacts (IK-rated) for harsh environments .

  • Precision Tolerances: Diameter: ±0.01mm, Thickness: ±0.01mm, Parallelism: <5 arcsec .

  • Surface Quality: 10-5 scratch-dig or better, RMS roughness <0.5Å for laser safety .

3. Core Functions

  • Beam Integrity Maintenance: Transmits light without distortion for accurate imaging/laser focusing .

  • Component Protection: Seals sensors/lasers from dust, debris, and corrosive agents (IP65/IP66 compatible) .

  • Glare Reduction: AR coatings minimize reflections, enhancing signal clarity .

4. Applications

Machine Vision:

  • Factory Automation: Sensor windows for industrial cameras, 3D scanners, and robotic arms .

  • Inspection Systems: PCB verification, medical imaging devices, and barcode readers .

Laser Systems:

    • Laser Cutting/Engraving: Protective windows for CO₂/fiber laser heads (1064nm/10.6μm) .

    • Optical Instruments: Windows for spectrometers, microscopes, and lab equipment .

Name Glass lens and Glass sheet
Material Optical glass, Qurartz glass, borosilicate glass, Float glass
Diameter Tolerance +0/-0.15 mm
Thickness Tolerance +/-0.15mm
Processed by tempering, grinding, polishing
Surface Quality 80/50,60/40,40/20
Material Quality no scratches and air bubble
Transmission above 90%
Chamfer 0.1-0.5 mm x 45°
Surface Coating Available
Usage Photography, Lighting system, Optical instruments
