Double-Polished Borosilicate Sight Glass for Precision Level Gauges and Instrumentation
Double-Polished Borosilicate Sight Glass for Precision Level Gauges and Instrumentation
Double-Polished Borosilicate Sight Glass for Precision Level Gauges and Instrumentation
Double-Polished Borosilicate Sight Glass for Precision Level Gauges and Instrumentation
Double-Polished Borosilicate Sight Glass for Precision Level Gauges and Instrumentation
Double-Polished Borosilicate Sight Glass for Precision Level Gauges and Instrumentation
Double-Polished Borosilicate Sight Glass for Precision Level Gauges and Instrumentation
Double-Polished Borosilicate Sight Glass for Precision Level Gauges and Instrumentation
Specifications
Brand Name :
LONGWAY
Model Number :
LW1609201313
Certification :
ISO9001
Place of Origin :
Shanghai, China
MOQ :
300 pieces
Price :
NEGOTIATION
Payment Terms :
T/T,Western Union
Supply Ability :
40000 Pieces per Month
Packaging Details :
paper,foam,carton
Customized support :
OEM
Structure :
flat and round
Item :
Sight glass
Surface :
Polished
Transmission :
over 90%
Processing :
grinding and polishing
Application :
Industrial and lighting
OEM :
available
Description

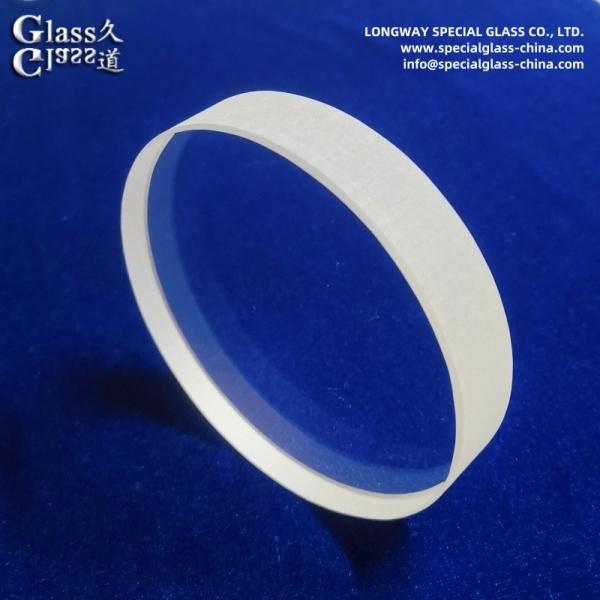

Double-Polished Borosilicate Sight Glass for Precision Level Gauges and Instrumentation


1. Material Composition:

  • Borosilicate Glass: High-purity, low-thermal-expansion material (e.g., Schott B270 or Pyrex equivalent) ensuring chemical inertness and structural stability.

  • Double-Polished Surfaces: Precision grinding and polishing on both sides for exceptional optical clarity, minimal light scattering, and distortion-free visualization.


2. Key Properties:

  • Thermal Resistance: Withstands temperatures up to 450°C (continuous) and thermal shock differentials exceeding 150°C.

  • Mechanical Durability: Hardness of 6.5 Mohs and pressure resistance up to 10 bar (customizable for higher specs).

  • Chemical Inertness: Resists corrosion from acids, alkalis, and solvents (excluding HF).

  • Optical Performance: >92% light transmission with UV to IR compatibility (280nm–2.5μm).


3. Core Functions:

  • Precision Monitoring: Enables accurate visual inspection of fluid levels, colors, and phases in gauges and instruments.

  • Safety Barrier: Acts as a transparent seal for high-pressure or hazardous environments (e.g., steam boilers, chemical tanks).

  • Optical Interface: Facilitates laser or spectroscopic measurements in analytical instrumentation.


4. Applications:

    • Industrial Level Gauges: Used in boilers, reactors, and pipelines for exact liquid/interface monitoring.

    • Process Instrumentation: Integrated into flow meters, pressure vessels, and control systems.

    • Laboratory Equipment: Employed in autoclaves, environmental chambers, and precision sensors.

    • Energy & Pharma: Suitable for solar thermal systems, pharmaceutical tanks, and sterilizable viewports.


Item Glass disc, Glass wafer, Sight glass, Panel lens, Glass sheet
Material Optical glass, Qurartz glass,borosilicate glass, Float glass, borofloat
Diameter Tolerance +0/-0.2 mm
Thickness Tolerance +/-0.2 mm
Processed By Cutting,Grinding,Tempering, Polishing
Working temperature Resisting high temperature shock
Surface Quality 80/50,60/40,40/20
Material Quality No scratches and air bubble
Transmission >90% for visible light
Chamfer 0.1-0.3 mm x 45 degree
Surface Coating Available
Usage Optics, Lighting system, industrial area.
