Specifications
Brand Name :
LONGWAY
Model Number :
LW16092012
Certification :
ISO9001
Place of Origin :
Shanghai, China
MOQ :
600 pieces
Price :
NEGOTIATION
Payment Terms :
T/T,Western Union
Supply Ability :
50000 Pieces per Month
Packaging Details :
paper,foam,carton
Customized support :
OEM
Structure :
flat and round
Item :
Borosilicate Sight glass
Surface :
Polished
Transmission :
over 90%
Processing :
grinding and polishing
Application :
Industrial and lighting
OEM :
available
Description

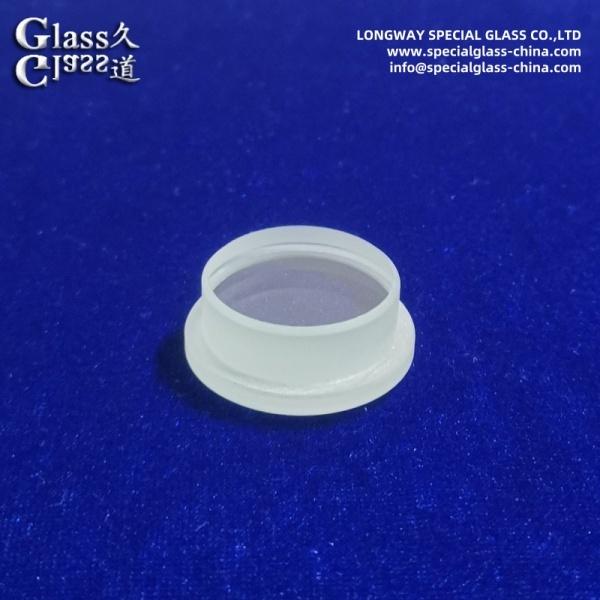

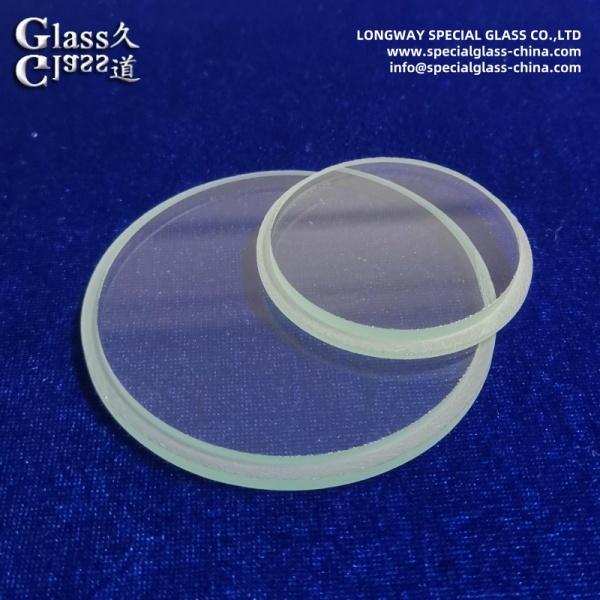

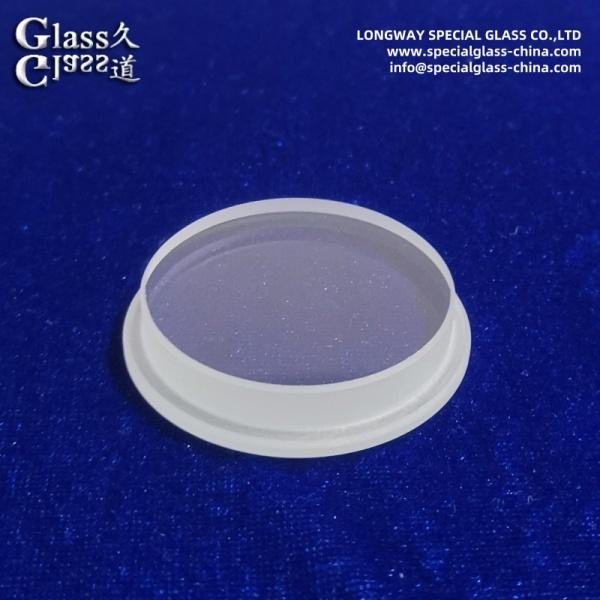

Custom Optical Grade Borosilicate Sight Glass with High Temperature Resistance


1. Material Composition‌

  • ‌Borosilicate glass‌: High-purity material (e.g., Schott B270 or Pyrex equivalent) with low thermal expansion (3.3 × 10⁻⁶/K) and chemical inertness.
  • ‌Optical grade‌: Precision-polished surfaces with >90% light transmission and minimal wavefront distortion.

‌

2. Key Properties‌

  • ‌Temperature resistance‌: Sustains 450°C continuous use (short-term peaks to 500°C) without deformation.
  • ‌Thermal shock tolerance‌: Withstands ΔT > 150°C (e.g., rapid cooling from 300°C to room temperature).
  • ‌Mechanical durability‌: Hardness of 6.5 Mohs, pressure resistance up to 10 bar (customizable for higher demands).
  • ‌Chemical stability‌: Resists acids (except HF), alkalis, and organic solvents.


‌3. Core Functions‌

  • ‌Process monitoring‌: Real-time visualization of fluids/particles in pipelines or reactors.
  • ‌Safety barrier‌: Transparent shield for hazardous environments (e.g., high-pressure systems).
  • ‌Optical clarity‌: UV to IR compatibility (280nm–2.5μm) for spectroscopy or laser applications


4. Applications‌

    • ‌Industrial‌: Chemical reactors, oil refineries, and power plant boilers for inspection windows.
    • ‌Laboratory‌: Autoclaves, vacuum chambers, and high-temperature furnaces.
    • ‌Medical/Pharma‌: Sterilizable viewports in bioreactors or pharmaceutical mixing tanks.
    • ‌Energy‌: Solar thermal systems and nuclear plant monitoring equipment.


Item Glass disc, Glass wafer, Sight glass, Panel lens, Glass sheet
Material Optical glass, Qurartz glass,borosilicate glass, Float glass, borofloat
Diameter Tolerance +0/-0.2 mm
Thickness Tolerance +/-0.2 mm
Processed By Cutting,Grinding,Tempering, Polishing
Working temperature Resisting high temperature shock
Surface Quality 80/50,60/40,40/20
Material Quality No scratches and air bubble
Transmission >90% for visible light
Chamfer 0.1-0.3 mm x 45 degree
Surface Coating Available
Usage Optics, Lighting system, industrial area.
