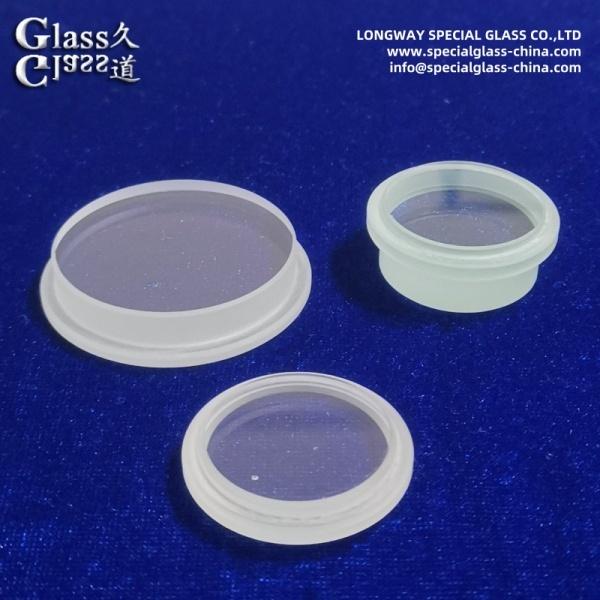

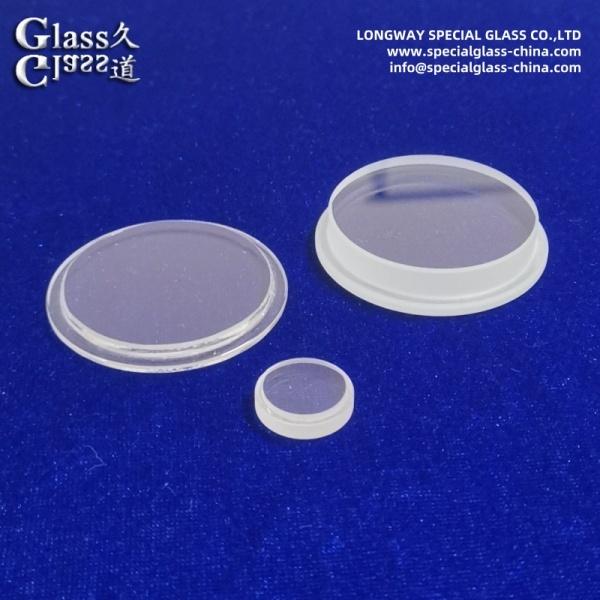

Low-Reflection Tempered Transparent Observation Sight Glass for Flange Gauges
Low-Reflection Tempered Transparent Observation Sight Glass for Flange Gauges
Low-Reflection Tempered Transparent Observation Sight Glass for Flange Gauges
Low-Reflection Tempered Transparent Observation Sight Glass for Flange Gauges
Low-Reflection Tempered Transparent Observation Sight Glass for Flange Gauges
Low-Reflection Tempered Transparent Observation Sight Glass for Flange Gauges
Specifications
Brand Name :
LONGWAY
Model Number :
LW160922795
Certification :
ISO9001
Place of Origin :
Shanghai, China
MOQ :
1000 pieces
Price :
NEGOTIATION
Payment Terms :
T/T,Western Union
Supply Ability :
50000 Pieces per Month
Packaging Details :
paper,foam,carton
Customized support :
OEM
Structure :
flat round
Item :
Sight glass
Surface :
Polished
Transmission :
over 90%
Processing :
grinding and polishing
Application :
Industrial and lighting
OEM :
available
Description

Low-Reflection Tempered Transparent Observation Sight Glass for Flange Gauges


1. Material & Construction

  • Core Material: Borosilicate glass (Schott Borofloat®/equivalent) or soda-lime glass

  • Surface Treatment:

    • Anti-reflective (AR) coating (V-coating or broadband)

    • Chemical tempering (ion-exchange process)

  • Sealing: Integrated EPDM/graphite gaskets for pressure containment


2. Key Properties

  • Optical Clarity:

    • 99% visible light transmission (uncoated: >92%)

    • Reflectivity <0.5% per surface (550nm)

  • Mechanical Strength:

    • IK08 impact resistance (5J impact tolerance)

    • 4x stronger than annealed glass

  • Pressure/Thermal Ratings:

    • Withstands 25+ bar pressure (ASME B16.5 compliant)

    • Thermal shock resistance: ΔT >150°C

  • Chemical Resistance:

    • pH 1-14 compatibility

    • Resists oils, solvents, and process chemicals


3. Core Functions

  • Visual Monitoring: Unobstructed view of fluid flow/level without glare

  • Pressure Containment: Maintains seal integrity at rated PSI

  • Safety Assurance: Shatterproof design contains fragments upon failure

  • Process Verification: Enables visual inspection of media color/contaminants


4. Applications

    • Industrial Process Vessels:

      • Reactor sight glasses (chemical/pharma)

      • Pipeline inspection ports (oil/gas)

    • Fluid Control Systems:

      • Pump gauge glasses

      • Boiler level indicators (ASME Section VIII)

    • Utility Infrastructure:

      • Water treatment plant gauges

      • Steam line observation windows

Item Glass disc, Sight glass, Panel lens, Glass sheet
Material Optical glass, Qurartz glass,borosilicate glass, Float glass, borofloat
Diameter Tolerance +0/-0.2 mm
Thickness Tolerance +/-0.2 mm
Processed By Cutting,Grinding,Tempering, Polishing
Working temperature Resisting high temperature shock
Surface Quality 80/50,60/40,40/20
Material Quality No scratches and air bubble
Transmission >90% for visible light
Chamfer 0.1-0.3 mm x 45 degree
Surface Coating Available
Usage Optics, Lighting system, industrial area.


Low-Reflection Tempered Transparent Observation Sight Glass for Flange Gauges

Low-Reflection Tempered Transparent Observation Sight Glass for Flange Gauges

Low-Reflection Tempered Transparent Observation Sight Glass for Flange Gauges
