Specifications
Brand Name :
Phidix
Model Number :
M22003
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10 PCS/Month
Delivery Time :
40 Work Days
Packaging Details :
1 PC/Wooden Box
Color :
White
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Lead-time :
40 Work Days
Resolution :
3nm, 6nm
Magnification :
300,000X
Accelerating Voltage :
0~30kV
Signal Detection :
CCD High Vacuum Secondary Electron Detector
Electron Gun :
Tungsten Heated Cathode-Pre Centered Tungsten Filament Cartridge/LaB6(Option)
Max Sample size :
175mm in diameter, 35mm in height
Auto Function :
Gun Heating,Bias,Centering,Focus,Bright,Contrast,Stigmator, Autocorrection,Fault Detection
Vacuum system :
1TMP, 1RP
Description

Magnification 8X-300,000X Scanning Electron Microscope 3-6nm Resolution with Optional EBSD EBSD

M22003 electron microscope operating software can be switched in Chinese/English with modular layout. In addition to the basic operation function of electron microscope, it also has one-click image viewing. This series software supports simultaneous display of three real-time images, two channels with CCD window, and powerful auxiliary functions such as synthesis of secondary electron image and backscattered image, multi-point size measurement, text annotation of electron microscope pictures, vacuum map display, CCD window display, etc., to meet the individual needs of different users.

Automatic functions: focusing, brightness/contrast adjustment, astigmatism, electron beam centering, automatic correction of electron gun, fault detection, one-button viewing, optional 3D reconstruction, etc.

Saved pictures: 4096x4096pixel BMP, GIF, TIF, JPG, MNG, ICO SEM.

Specials:

- Magnification Max 300,000X.

- Signal Detection: CCD High Vacuum Secondary Electron Detector( With detector perotection function) , Semiconductor Four Segemation Back Scattering Electron Detector, CCD Montioring Camera.

- Accelerating Voltage: 0~30KV, High image resolution.

- EDS/EBSD/CL is optional, for component analysis.

- High Vacuum System.

- Four Axes Motorized Stage.

Item Specification M22003A M22003B
Resolution 3nm@30kV(SE) ● ●
6nm@30kV(BSE) ● ●
Magnification 8X~300,000X, Displayed Magnification:Magnification is defined with a display size 127mm*211mm ● ●
Accelerating Voltage 0~30kV ● ●

Signal Detection

CCD High Vacuum Secondary Electron Detector( With detector perotection function)

Semiconductor Four Segemation Back Scattering Electron Detector

CCD Montioring Camera

 ● ●
Electron Gun Tungsten Heated Cathode-Pre Centered Tungsten Filament Cartridge/LaB6(Option) ● ●
Auto Function Gun Heating,Bias,Centering,Focus,Bright,Contrast,Stigmator, Autocorrection,Fault Detection ● ●
StageSystem/Movement Four Axes Motorized Stage ● ●
X: 0~70mm, Auto ● ●
Y: 0~50mm, Auto ● ●
Z: 0~45mm, Auto ● ●
R: 360°, Auto ● ●
T: -5°~90°, Manual ● ●
Max Sample Diameter 175mm ● ●
Max Sample Height 35mm ● ●
Vacuum system 1 TMP,1RP (Turbomolecular pump, mechanical pump) ● ●
Low vacuum atmosphere (10-270Pa) ●
Optional Detector EDSEBSDCL ○ ○
Optional Accessories EBLCryo&Heating StageNano ManipulatorTensile Stage ○ ○

Note: ● means standard, ○ means optional

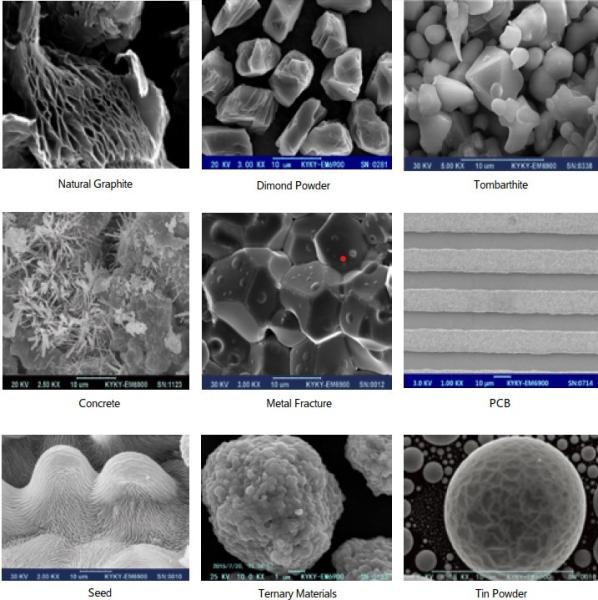

Gallery

8X-300,000X Scanning Electron Microscope 3-6nm Resolution EBSD EBSD

Image Processing Software

8X-300,000X Scanning Electron Microscope 3-6nm Resolution EBSD EBSD

8X-300,000X Scanning Electron Microscope 3-6nm Resolution EBSD EBSD

8X-300,000X Scanning Electron Microscope 3-6nm Resolution EBSD EBSD
