Magnification 6X-1000000X Scanning Electron Microscope 1-3nm Resolution
Magnification 6X-1000000X Scanning Electron Microscope 1-3nm Resolution
Magnification 6X-1000000X Scanning Electron Microscope 1-3nm Resolution
Magnification 6X-1000000X Scanning Electron Microscope 1-3nm Resolution
Magnification 6X-1000000X Scanning Electron Microscope 1-3nm Resolution
Magnification 6X-1000000X Scanning Electron Microscope 1-3nm Resolution
Magnification 6X-1000000X Scanning Electron Microscope 1-3nm Resolution
Magnification 6X-1000000X Scanning Electron Microscope 1-3nm Resolution
Magnification 6X-1000000X Scanning Electron Microscope 1-3nm Resolution
Magnification 6X-1000000X Scanning Electron Microscope 1-3nm Resolution
Specifications
Brand Name :
Phidix
Model Number :
M22004
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10 PCS/Month
Delivery Time :
40 Work Days
Packaging Details :
1 PC/Wooden Box
Color :
White
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Lead-time :
40 Work Days
Resolution :
1nm, 2.5nm, 3nm
Magnification :
1000000X
Accelerating Voltage :
0~30kV
Signal Detection :
Ultra Vacuum Secondary Electron Detector (With detector perotection function)
Electron Gun :
Schotty Field Emission ELectron Gun
Max Sample size :
340mm in diameter
Auto Function :
Focus,Bright/Contrast,Stigmator,Alignment etc
Vacuum system :
Fully Automatic: 1 Ion Pump,1 Combined Pump(Getter pump&Ion pump), 1TMP, 1RP
Description

Magnification 6X-1000000X Scanning Electron Microscope 1-3nm Resolution with Optional BSE,EDS,EBSD and CL

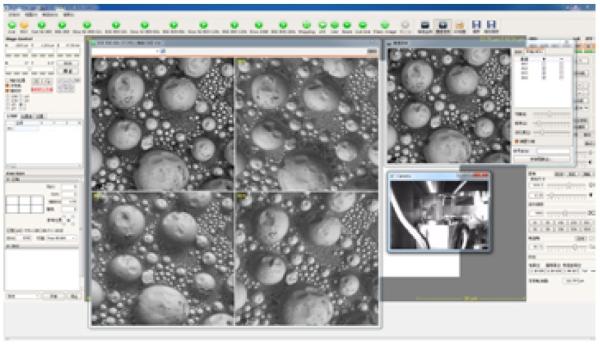

M22004 electron microscope operating software can be switched in Chinese/English with modular layout. The software supports real-time simultaneous display of 5 images, 4 channels plus CCD window, and supports powerful auxiliary functions such as synthesis of secondary electron image and backscattered electron image, multi-point size measurement, text annotation of electron microscope image, vacuum map display, CCD window display, etc., to meet the individual needs of different users. Automatic functions: automatic filament, high voltage, focusing, brightness/contrast adjustment, astigmatism, electron beam centering, automatic correction of electron gun, fault detection, optional 3D reconstruction, etc. Saved pictures: 16384x16384pixel BMP, GIF, TIF, JPG, MNG, ICOCUR, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA and SEM.

Specials:

- Magnification Max 1000000X.

- Signal Detection: Ultra Vacuum Secondary Electron Detector (With detector perotection function).

- Accelerating Voltage: 0~30KV, High image resolution.

- BSE/EDS/EBSD/CL is optional, for component analysis.

- High Vacuum System.

- Five Axes Encentric Motorized Stage.

Item Specification M22004
Resolution 1nm@30kV(SE), 3nm@1kV(SE), 2.5nm@30kV(BSE) ●
Magnification 6X~1000000X, Displayed Magnification: Magnification is defined with a display size 127mm*211mm ●
Accelerating Voltage 0~30kV ●

Signal Detection

 Ultra Vacuum Secondary Electron Detector (With detector perotection function) ●
Electron Gun Schotty Field Emission ELectron Gun ●
Auto Function Focus,Bright/Contrast,Stigmator,Alignment etc ●
StageSystem/Movement Five Axes Encentric Motorized Stage ●
X: 0~150mm, Auto ●
Y: 0~150mm, Auto ●
Z: 0~60mm, Auto ●
R: 360°, Auto ●
T: -5°~70°, Auto ●
Max Sample Diameter 340mm ●
Vacuum system Fully Automatic: 1 Ion Pump,1 Combined Pump(Getter pump&Ion pump), 1 TMP, 1RP ●
Optional Detector BSEEDSEBSDCL ○
Optional Accessories Pre-Vacuum Chamber/EBL/Cryo Stage/Nano Manipulator/Tensile Stage/ Control Panel/Track Ball ○

Note: ● means standard, ○ means optional

Low Voltage Image

Magnification 6X-1000000X Scanning Electron Microscope 1-3nm Resolution

Gallery

Magnification 6X-1000000X Scanning Electron Microscope 1-3nm Resolution

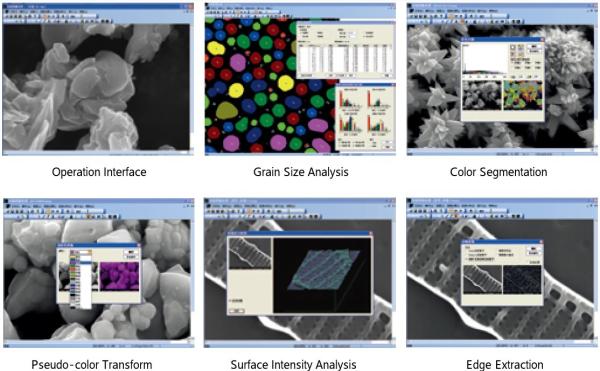

Image Processing Software

Magnification 6X-1000000X Scanning Electron Microscope 1-3nm Resolution

Magnification 6X-1000000X Scanning Electron Microscope 1-3nm Resolution

Magnification 6X-1000000X Scanning Electron Microscope 1-3nm Resolution
