GYTA33 GYFTY33 GYXTY 12 24 144 96F 288 Core Underwater Underground Galvanized Steel Wire Armored Optical Cable
GYTA33 GYFTY33 GYXTY 12 24 144 96F 288 Core Underwater Underground Galvanized Steel Wire Armored Optical Cable
GYTA33 GYFTY33 GYXTY 12 24 144 96F 288 Core Underwater Underground Galvanized Steel Wire Armored Optical Cable
GYTA33 GYFTY33 GYXTY 12 24 144 96F 288 Core Underwater Underground Galvanized Steel Wire Armored Optical Cable
Specifications
Brand Name :
PUNAISGD
Model Number :
GYTA33
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000
Delivery Time :
7days
Packaging Details :
wooden drum
Type :
Direct Buried Fiber Optic Cable
Number of Conductors :
≥ 10
Product name :
GYTA33 Cable
armored :
steel wires around armored
Application :
Directly buired and underwater
Outer Jacket Material :
PE(Black)
Armor Layer :
Aluminum Tape
Package :
Wooden Drum
Description

GYTA33 GYFTY33 GYXTY 12 24 144 96F 288 Core Underwater Underground Galvanized Steel Wire Armored Optical Cable

Armored Loose Tube Double Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried.

Product Construction


Fiber:
2-24 fibers
Uni-loose tube gel-filled


Armor:
Steel wire


OuterJacket:
Black UV-and moisture-resistant polyethylene (PE).


Features


Uni-tube gel-filled construction for superiorfiber protection.
Compact, easy to install.
UV and moisture-resistant design


Applications
Installed in duct, direct burial.
FTTx.

Structure and Technical Specifications

Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Max Fibers per Tube No. of (Tubes+fillers) Allowable Tensile Load (N) Allowable Crush Resistance (N/100mm)
Short Term Long Term Short Term Long Term
2~30 15.5 407 6 5 10000 4000 5000 3000
32~36 16.0 437 6 6 10000 4000 5000 3000
38~60 16.6 463 12 5 10000 4000 5000 3000
62~72 17.2 499 12 6 10000 4000 5000 3000
>72 Available upon customer’s request

Note:

1. According to different applications, GYTA333, GYTS33, GYTS333, GYTY53+33, GYTY53+333, GYTA53+33, GYTA53+333 can provided.

2. Special cable structure can be designed and manufactured on customer’s request.

GYTA33 GYFTY33 GYXTY 12 24 144 96F 288 Core Underwater Underground Galvanized Steel Wire Armored Optical Cable

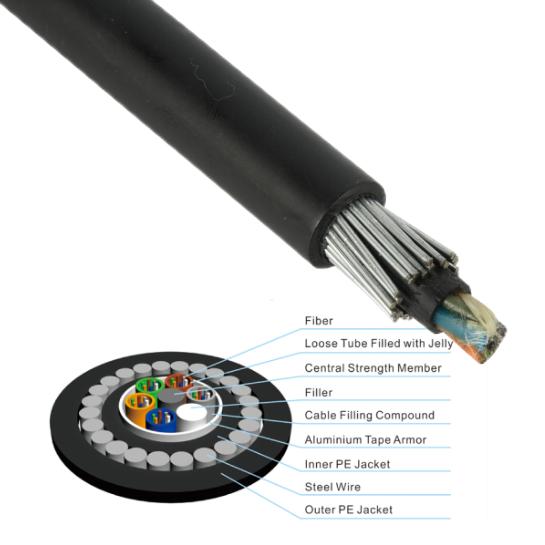

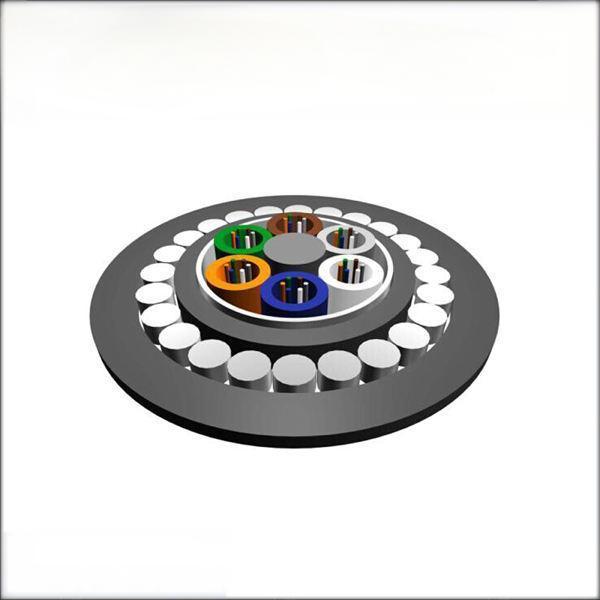

Cable Structure
  • Fiber
  • Loose Tube
  • Armoured steel wires
  • PE sheath
  • Steel tape
  • Metal strength member
GYTA33 GYFTY33 GYXTY 12 24 144 96F 288 Core Underwater Underground Galvanized Steel Wire Armored Optical Cable GYTA33 GYFTY33 GYXTY 12 24 144 96F 288 Core Underwater Underground Galvanized Steel Wire Armored Optical Cable GYTA33 GYFTY33 GYXTY 12 24 144 96F 288 Core Underwater Underground Galvanized Steel Wire Armored Optical Cable
Installation Guide
GYTA33 GYFTY33 GYXTY 12 24 144 96F 288 Core Underwater Underground Galvanized Steel Wire Armored Optical Cable
Frequently Asked Questions
Why choose us?

We are the manufacturer located in Guangzhou, China, operating since 2011. We primarily serve the domestic market with a team of 11-50 professionals in our factory.

How do we guarantee quality?

We always provide pre-production samples before mass production and conduct final inspections before shipment to ensure product quality.

Can you ship products to my country?

Yes, we can arrange shipping to your country. If you don't have your own shipping forwarder, we can assist with logistics.

Do you offer OEM services?

We accept all OEM orders. Contact us with your design requirements and we'll provide a competitive quote and create samples for your approval.

What services do we provide?

We offer various delivery terms (FOB, CIF, EXW), accept multiple currencies (USD, EUR, JPY, etc.), and provide flexible payment options including T/T, L/C, PayPal, and more. Our team communicates in English and Chinese.

Product Packaging
GYTA33 GYFTY33 GYXTY 12 24 144 96F 288 Core Underwater Underground Galvanized Steel Wire Armored Optical Cable
