GYFTY-48 Fiber Optic Cable – High-Density, Future-Ready Connectivity For Demanding Networks
GYFTY-48 Fiber Optic Cable – High-Density, Future-Ready Connectivity For Demanding Networks
Specifications
Brand Name :
PUNAISGD
Model Number :
GYFTY-48b1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000km/month
Delivery Time :
7days
Packaging Details :
woode drum
Type :
GYFTY-48b1.3
Jacket Material :
PE/LSZH
Out Jacket Color :
Black
Strength Member Material :
FRP
Service :
OEM&ODM
Standard Length :
2,000m/4000m
Number Of Fiber :
48
Oem Factory :
Yes
Operating Temperature :
-40°C to +70°C
Name :
Outdoor Fiber Optic Cable
Description

GYFTY-48 Fiber Optic Cable – High-Density, Future-Ready Connectivity for Demanding Networks

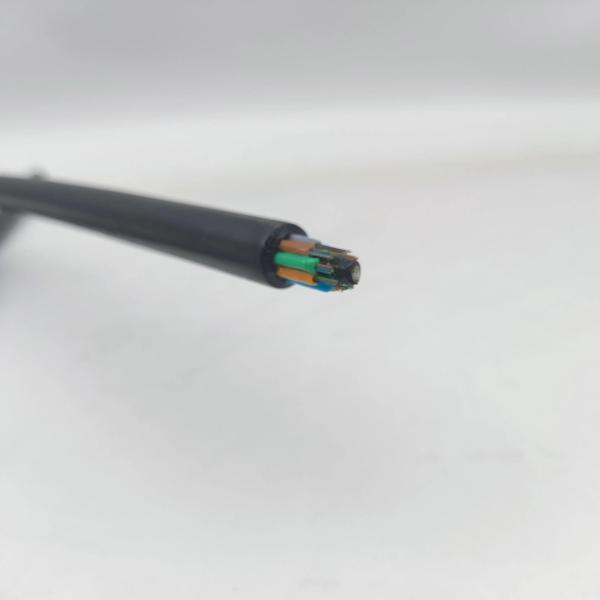

Designed for harsh environments, the GYFTY-48 features an advanced loose tube structure filled with water-blocking gel, ensuring superior protection against moisture, temperature extremes, and mechanical stress. Its dual-layer reinforcement—corrosion-resistant steel wire and FRP (fiberglass reinforced plastic) central strength member—provides unmatched tensile strength and crush resistance, while the high-density polyethylene (HDPE) sheath defends against UV radiation, chemicals, and rodent damage.

Key Advantages:
- 48-core high-density design for efficient, space-saving installations
- Optimized bend performance with G.657.A1-compliant fibers for tight routing
- Low insertion loss & superior signal integrity for long-haul and high-speed applications
- Versatile deployment options—suitable for aerial, direct burial, and duct installations
- Strict compliance with IEC, ITU-T, and RoHS standards

Built for reliability in the most challenging conditions, the GYFTY-48 fiber optic cable ensures long-term performance, reduced maintenance, and seamless upgrades for next-generation networks.

Future-proof your infrastructure with GYFTY-48 – Where capacity meets resilience.


OPTICAL CHARACTERISTICS


G652
50/125μm
62.5/125μm


Attenuation
(+20℃)
@850 nm

<=3.0dB/km
<=3.3dB/km
@1300 nm

<=1.0dB/km
<=1.0dB/km
@1310 nm
<=0.36dB/km


@1550 nm
<=0.22dB/km


Bandwidth
(Class A)
@850 nm

>=500 MHz*km
>=200 MHz*km
@1300 nm

>=1000 MHz*km
>=600 MHz*km
Numerical Aperture

0.200+-0.015NA
0.275+-0.015NA
Cable cut-off wavelength
<=1260 nm




Structure and Technical Specifications:
Fiber
Count
Nominal
Diameter
(mm)
Nominal
Weight
(kg/km)
Max Fiber
Per Tube
Max
No.of
(Tubes+
fillers)
Allowable Tensile
Load (N)
Allowable Crush
Resistance(N/100mm)
Short Term
Long Term
Short Term
Long Term
2~36
10.2
85
6
6
1500
600
1000
300
38~72
11.1
100
12
6
1500
600
1000
300
74~96
12.6
130
12
8
1500
600
1000
300
98~120
14.1
162
12
10
1500
600
1000
300
122~144
15.9
204
12
12
1800
600
1000
300
146~216
15.9
205
12
18(2 layers)
2200
600
1000
300
>144
Available upon customer request
