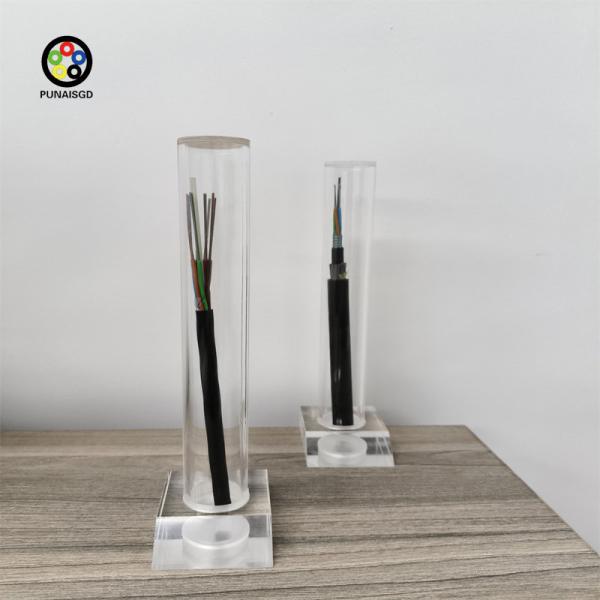

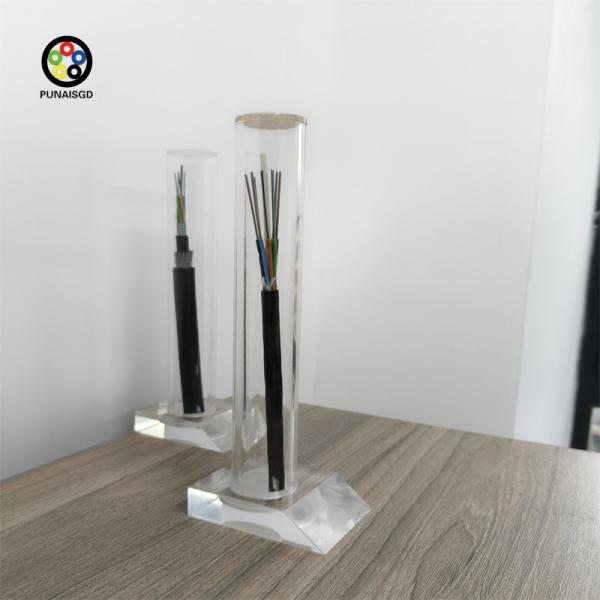

96 Cores 48 Cores 36 Cores Air Blow Fiber Cable GYCFXTY GYCFTY
96 Cores 48 Cores 36 Cores Air Blow Fiber Cable GYCFXTY GYCFTY
96 Cores 48 Cores 36 Cores Air Blow Fiber Cable GYCFXTY GYCFTY
96 Cores 48 Cores 36 Cores Air Blow Fiber Cable GYCFXTY GYCFTY
96 Cores 48 Cores 36 Cores Air Blow Fiber Cable GYCFXTY GYCFTY
96 Cores 48 Cores 36 Cores Air Blow Fiber Cable GYCFXTY GYCFTY
Specifications
Brand Name :
PUNAISGD
Model Number :
GCYFY-72B1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000km/month
Delivery Time :
7days
Packaging Details :
woode drum
Type :
GCYFY-72B1.3
Jacket Material :
PE/LSZH
Out Jacket Color :
Black
Strength Member Material :
FRP
Service :
OEM&ODM
Standard Length :
2,000m/4000m
Number Of Fiber :
72
Oem Factory :
Yes
Operating Temperature :
-40°C to +70°C
Name :
Outdoor Fiber Optic Cable
Description

Air-Blow Minicable GYCFXTY/GYCFTY 96 Cores 48 Cores 36 Cores


Description
•Air- blow minicable is a small size central loose tube or stranded loose tube optical fiber cable, with non-metallic strength members, without armor, can be installed in miniduct by means of air-blow. Blow the silicon core minitube into subtube made of HDPE or PVC, then blow the minicable into minitubes by lot.

Characteristics
•Small overall diameter, light weight, moderate hardness, suitable for air-blow installation.
•Non-metallic structure, no need for grounding.
•Effective use of duct resources with high fiber density.
•Convenient to splice and construct with easy branching.
•Convenient expansion reduces the initial investment of operators and convenient expansion.
•Co-construction and sharing with the existing duct resources of silicon tubes that are available.

96 Cores 48 Cores 36 Cores Air Blow Fiber Cable GYCFXTY GYCFTY

Technical Characteristics

Type

O.D.

(mm)

Weight

(Kg/km)

Tensile strength

Long/short term (N)

Crush

Long/short term

(N/100mm)

Number of tubes/fibre

count per tube

GCYFY-12B1.3

4.5

16

0.3G/1.0G

150/500

2/6

GCYFY-24B1.3

4.5

16

0.3G/1.0G

150/500

4/6

GCYFY-36B1.3

4.5

16

0.3G/1.0G

150/500

6/6

GCYFY-24B1.3

5.4

26

0.3G/1.0G

150/500

2/12

GCYFY-48B1.3

5.4

26

0.3G/1.0G

150/500

4/12

GCYFY-72B1.3

5.4

26

0.3G/1.0G

150/500

6/12

GCYFY-96B1.3

6.1

33

0.3G/1.0G

150/500

8/12

GCYFY-144B1.3

7.9

52

0.3G/1.0G

150/500

12/12

GCYFY-192B1.3

7.9

52

0.3G/1.0G

150/500

16/12

GCYFY-216B1.3

7.9

52

0.3G/1.0G

150/500

18/12

GCYFY-288B1.3

9.3

80

0.3G/1.0G

150/500

24/12

GCYFY-144B1.3

7.3

42

0.3G/1.0G

150/500

6/24

GCYFY-192B1.3

8.8

76

0.3G/1.0G

150/500

8/24

GCYFY-288B1.3

11.4

110

0.3G/1.0G

150/500

12/24

GCYFY-432B1.3

11.4

105

0.3G/1.0G

150/500

18/24

GCYFY-576B1.3

13.4

140

0.3G/1.0G

150/500

24/24

Note: G is the weight of optical cable per km.
