Outdoor Non-Metallic Loose Tube Fiber Optic Cable GYFTY
Outdoor Non-Metallic Loose Tube Fiber Optic Cable GYFTY
Specifications
Brand Name :
PUNAISGD
Model Number :
GYFTY-36b1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000km/month
Delivery Time :
7days
Packaging Details :
woode drum
Type :
GYFTY-36B1.3
Jacket Material :
PE/LSZH
Out Jacket Color :
Black
Strength Member Material :
FRP
Service :
OEM&ODM
Standard Length :
2,000m/4000m
Number Of Fiber :
36
Oem Factory :
Yes
Operating Temperature :
-40°C to +70°C
Name :
Outdoor Fiber Optic Cable
Description

Outdoor Non-Metallic Loose Tube Fiber Optic Cable GYFTY

Outdoor FRP Aerial Fiber Optic Cable (GYFTY) For Duct And Aerial

GYFTY fiber optic wire is an non-metallic cable used in power transmission system and high electromagnetic interface. It’s a perfect fiber optic cable for lighting protection effect with all-dielectric materials.

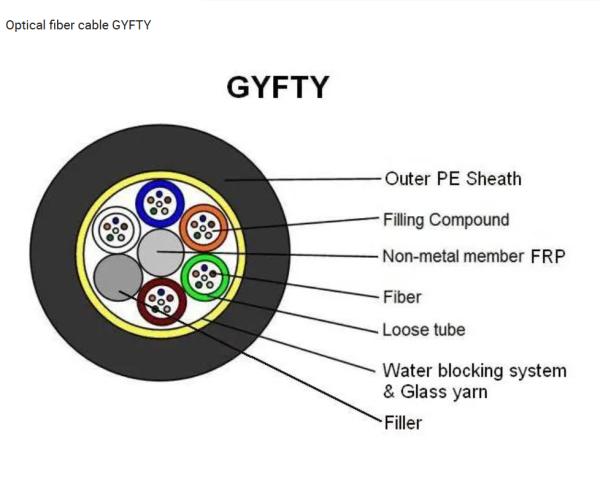

It is made of high modulus plastic materials,while the loose tubes strand together around non-metallic central strength member (FRP) into a compact and circular cable core. The water-blocking materials are distributed into the interstices of the cable core. Our GYFTY Fiber Optic Cable is putting 2-192 fibers cores in the central loose tube and with singlemode or mulitimode for options.


OPTICAL CHARACTERISTICS


G652
50/125μm
62.5/125μm


Attenuation
(+20℃)
@850 nm

<=3.0dB/km
<=3.3dB/km
@1300 nm

<=1.0dB/km
<=1.0dB/km
@1310 nm
<=0.36dB/km


@1550 nm
<=0.22dB/km


Bandwidth
(Class A)
@850 nm

>=500 MHz*km
>=200 MHz*km
@1300 nm

>=1000 MHz*km
>=600 MHz*km
Numerical Aperture

0.200+-0.015NA
0.275+-0.015NA
Cable cut-off wavelength
<=1260 nm




Structure and Technical Specifications:
Fiber
Count
Nominal
Diameter
(mm)
Nominal
Weight
(kg/km)
Max Fiber
Per Tube
Max
No.of
(Tubes+
fillers)
Allowable Tensile
Load (N)
Allowable Crush
Resistance(N/100mm)
Short Term
Long Term
Short Term
Long Term
2~36
10.2
85
6
6
1500
600
1000
300
38~72
11.1
100
12
6
1500
600
1000
300
74~96
12.6
130
12
8
1500
600
1000
300
98~120
14.1
162
12
10
1500
600
1000
300
122~144
15.9
204
12
12
1800
600
1000
300
146~216
15.9
205
12
18(2 layers)
2200
600
1000
300
>144
Available upon customer request
