Specifications
Brand Name :
PUNAISGD
Model Number :
ASU-12b1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000km/month
Delivery Time :
7days
Packaging Details :
woode drum
Type :
ASU-12b1.3
Cores :
12 fibers
Construction :
Central Loose Tube
Useful :
Outdoor Fiber Optic Cable
Transport Package :
Wooden Drum
Cable Dimension :
7mm/8MM
Jacket Color :
Black
Mode :
Singlemode G652D
Out Sheath :
PE sheath
Strengthen Member :
2pcs FRP
Name :
Outdoor Fiber Optic Cable
Description
Outdoor Fiber Optic Cable

ASU CABLE ASU80 120 6fo 12fo 4 6 8 hilos 12 core fibra optica asu cable mini asu adss 12 hilos

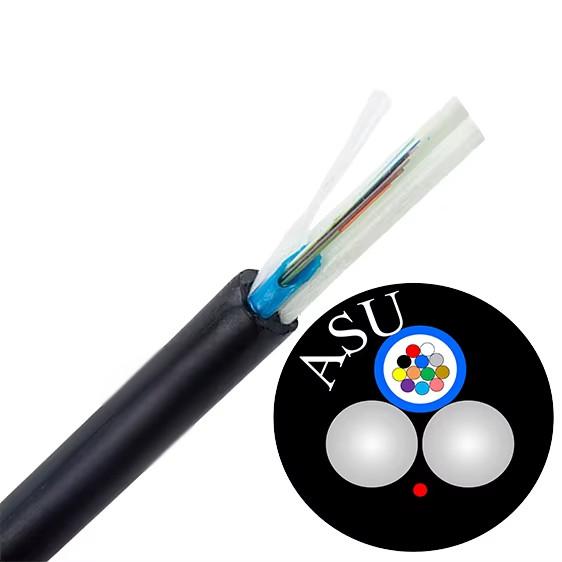

ASU cable is also known as Mini ADSS optical fiber. It is a kind of optical cable which is composed of all dielectric materials and contains necessary self-supporting system and it can be directly suspended on the power system. It is mainly used in the communication route of overhead high voltage transmission system, and can also be used in the communication line under the environment such as lightning zone and long distance overhead line.

Product Characteristics
1)Non-metallic self-supporting member
2)Good-performance sheath materials
3)Compact structure
4)All dielectric structure, resistant to electromagnetic interference
5)Easy for stripping, splicing, simplified installation and maintenance

6)Light weight,widely used,cost-effective

Applications

• Aerial self-supporting

• Outdoor wiring


OPTICAL CHARACTERISTICS


G652
50/125μm
62.5/125μm


Attenuation
(+20℃)
@850 nm

<=3.0dB/km
<=3.3dB/km
@1300 nm

<=1.0dB/km
<=1.0dB/km
@1310 nm
<=0.36dB/km


@1550 nm
<=0.22dB/km


Bandwidth
(Class A)
@850 nm

>=500 MHz*km
>=200 MHz*km
@1300 nm

>=1000 MHz*km
>=600 MHz*km
Numerical Aperture

0.200+-0.015NA
0.275+-0.015NA
Cable cut-off wavelength
<=1260 nm





Cable Count Out sheath Weight Minimum allowable Tensile Strength
minimum allowable Crush Load
Minimum Bending Radius
Storage
Diameter (N) (N/100mm) (MM) temperature
(MM) (KG) short term long term short term long term short term long term (℃)
2 7.2 45 1200 500 1000 300 20D 10D 20
4 7.2 45 1200 500 1000 300 20D 10D 20
6 7.2 45 1200 500 1000 300 20D 10D 20
8 7.2 45 1200 500 1000 300 20D 10D 20
12 7.2 45 1200 500 1000 300 20D 10D 20

Outdoor Fiber Optic Cable ASU CABLE ASU80 120 6fo 12fo 4 6 8 hilos 12 core fibra optica asu cable mini asu adss 12 hilos

Outdoor Fiber Optic Cable ASU CABLE ASU80 120 6fo 12fo 4 6 8 hilos 12 core fibra optica asu cable mini asu adss 12 hilos

Details Images
Outdoor Fiber Optic Cable ASU CABLE ASU80 120 6fo 12fo 4 6 8 hilos 12 core fibra optica asu cable mini asu adss 12 hilos


Installation Instructions

Outdoor Fiber Optic Cable ASU CABLE ASU80 120 6fo 12fo 4 6 8 hilos 12 core fibra optica asu cable mini asu adss 12 hilos
Outdoor Fiber Optic Cable ASU CABLE ASU80 120 6fo 12fo 4 6 8 hilos 12 core fibra optica asu cable mini asu adss 12 hilos
Product Paramenters
Outdoor Fiber Optic Cable ASU CABLE ASU80 120 6fo 12fo 4 6 8 hilos 12 core fibra optica asu cable mini asu adss 12 hilos


Company Profile
Outdoor Fiber Optic Cable ASU CABLE ASU80 120 6fo 12fo 4 6 8 hilos 12 core fibra optica asu cable mini asu adss 12 hilos
Outdoor Fiber Optic Cable ASU CABLE ASU80 120 6fo 12fo 4 6 8 hilos 12 core fibra optica asu cable mini asu adss 12 hilos
Outdoor Fiber Optic Cable ASU CABLE ASU80 120 6fo 12fo 4 6 8 hilos 12 core fibra optica asu cable mini asu adss 12 hilos
Outdoor Fiber Optic Cable ASU CABLE ASU80 120 6fo 12fo 4 6 8 hilos 12 core fibra optica asu cable mini asu adss 12 hilos
Outdoor Fiber Optic Cable ASU CABLE ASU80 120 6fo 12fo 4 6 8 hilos 12 core fibra optica asu cable mini asu adss 12 hilos
Outdoor Fiber Optic Cable ASU CABLE ASU80 120 6fo 12fo 4 6 8 hilos 12 core fibra optica asu cable mini asu adss 12 hilos
Product packaging
Outdoor Fiber Optic Cable ASU CABLE ASU80 120 6fo 12fo 4 6 8 hilos 12 core fibra optica asu cable mini asu adss 12 hilos
Our Advantages
Outdoor Fiber Optic Cable ASU CABLE ASU80 120 6fo 12fo 4 6 8 hilos 12 core fibra optica asu cable mini asu adss 12 hilos
