Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable
Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable
Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable
Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable
Specifications
Brand Name :
PUNAISGD
Model Number :
GYXTW-6B1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000km/month
Delivery Time :
7days
Packaging Details :
woode drum
Type :
GYXTW-6B1.3
Strength Member :
Two steel wire
Core Number :
2-12 cores
Central Strength Member :
Steel Wire
Installation :
Aerial
Business Type :
Manufacturer
Laying Methods :
Aerial
Armour :
Steel Tape
Diameter :
7mm/8mm/6mm
Name :
Outdoor Fiber Optic Cable
Description

Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable

Description

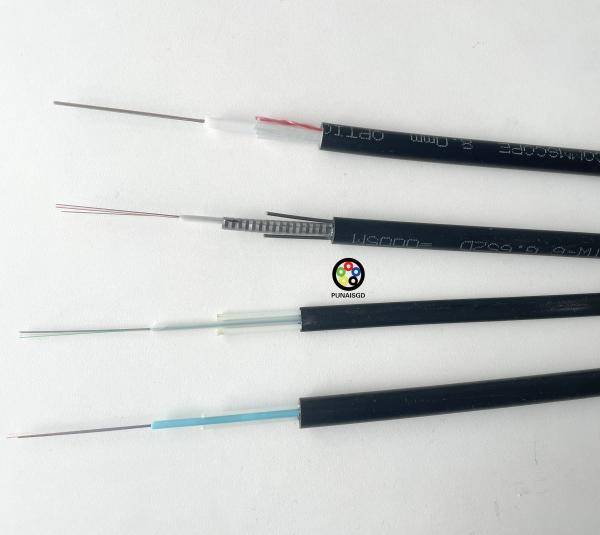

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.


Characteristics

1 Good mechanical and temperature performance

2 High strength loose tube that is hydrolysis resistant

3 Special tube filling compound ensure a critical protection of fiber

4 Crush resistance and flexibility

5 PSP enhancing moisture-proof

6 Two parallel steel wires ensure tensile strength

7 Small diameter, light weight and friendly installation

8 Long delivery length


Product Name
GYXTW fiber optic cable
Fiber Count
8 Fibers
Construction
Central Loose Tube
Fiber Type
Singlemode 9/125
Outer Jacket Material
PE(Black)
Strength MemberMaterial
Steel Wire
Weight
50KG/KM
Armor Layer
PSP Steel
Application
Aerial and Duct
Steel Diameter
0.8mm *2
Jacket Diameter
8.0mm-10.0mm
Jacket Material
PE
Test Wavelength
1310/1550nm
Operation temperature
-40℃~ 85℃

Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable
Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable

Details Images
Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable


Installation Instructions

Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable
Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable
Product Paramenters
Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable


Company Profile
Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable
Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable
Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable
Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable
Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable
Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable
Product packaging
Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable
Our Advantages
Sm G652D 2 4 6 8 12 Core GYXTW PBT Loose Tube HDPE Sheath Fiber Optic Cable
