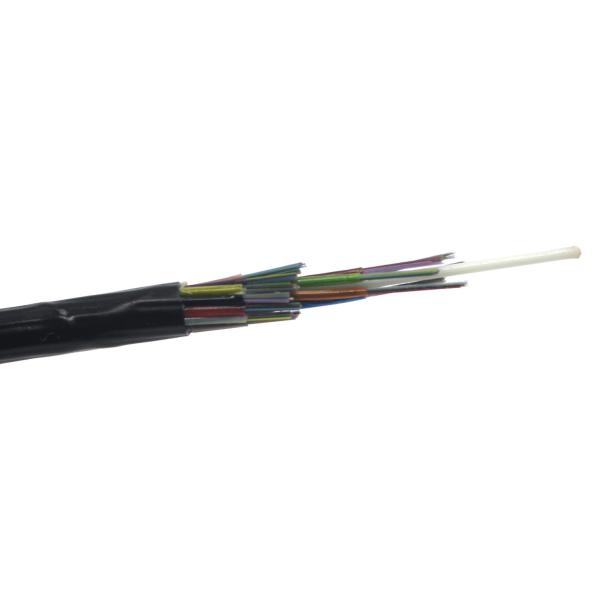

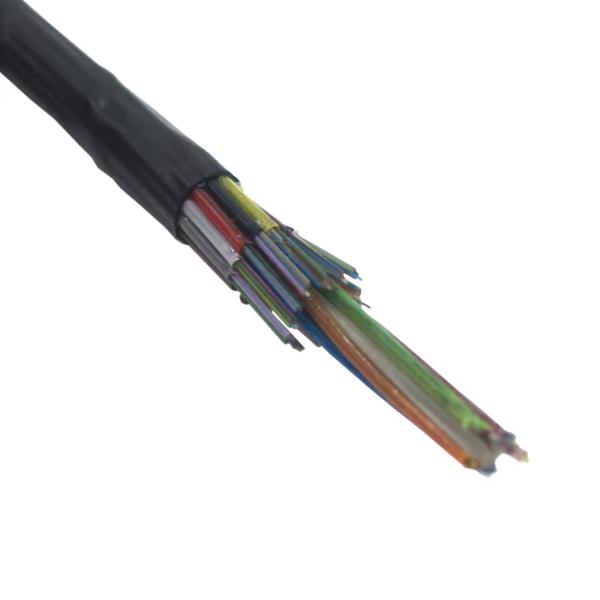

Duct Micro Air Blown 96 Core Fiber Optic Cable GCYFY GCYFTY
Duct Micro Air Blown 96 Core Fiber Optic Cable GCYFY GCYFTY
Duct Micro Air Blown 96 Core Fiber Optic Cable GCYFY GCYFTY
Duct Micro Air Blown 96 Core Fiber Optic Cable GCYFY GCYFTY
Duct Micro Air Blown 96 Core Fiber Optic Cable GCYFY GCYFTY
Duct Micro Air Blown 96 Core Fiber Optic Cable GCYFY GCYFTY
Specifications
Brand Name :
PUNAISGD
Model Number :
GCYFY-96b1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000km/month
Delivery Time :
7days
Packaging Details :
woode drum
Type :
GCYFY-96b1.3
Jacket Material :
PE/LSZH
Out Jacket Color :
Black
Strength Member Material :
FRP
Service :
OEM&ODM
Standard Length :
2,000m/4000m
Number Of Fiber :
96
Oem Factory :
Yes
Operating Temperature :
-40°C to +70°C
Name :
Outdoor Fiber Optic Cable
Description

Duct Micro Air Blown 96 Core Fiber Optic Cable GCYFY GCYFTY


What is air-blown micro optic fiber cable?

Air-blown fiber systems, or jetting fiber, are highly efficient for installing fiber optic cables. Using compressed air to blow micro-optical fibers through pre-installed microducts allows for quick, accessible installation, even in hard-to-reach areas. It's ideal for networks that require frequent updates or expansions, as it enables duct installation without initially determining the exact fiber need, reducing the necessity for dark fibers. This approach also minimizes optical loss and enhances
system performance, offering a cost-effective and flexible solution for modern fiber optic networks.

Advantages of air-blown fiber?

Air blown fiber systems offer significant advantages over traditional fiber optic installations. They reduce tensile stress on fibers, leading to lower attenuation and enhanced system performance. These systems allow for the reuse of microducts, enabling easy future expansion or replacement of fibers. Benefits include cost savings, faster installation, fewer fiber splices, simplified maintenance, and the ability to adapt to future technological needs, making air blown fiber a more efficient and flexible option.


OPTICAL CHARACTERISTICS


G652
50/125μm
62.5/125μm


Attenuation
(+20℃)
@850 nm

<=3.0dB/km
<=3.3dB/km
@1300 nm

<=1.0dB/km
<=1.0dB/km
@1310 nm
<=0.36dB/km


@1550 nm
<=0.22dB/km


Bandwidth
(Class A)
@850 nm

>=500 MHz*km
>=200 MHz*km
@1300 nm

>=1000 MHz*km
>=600 MHz*km
Numerical Aperture

0.200+-0.015NA
0.275+-0.015NA
Cable cut-off wavelength
<=1260 nm




Structure and Technical Specifications:

Fiber count(F)

Nominal diameter(mm)

Nominal weight(kg/km)

Max tensile strength(N)

Temperature(℃)

12

5.2±0.1

25

500

-40 to +70

24

5.2±0.1

25

500

36

5.2±0.1

25

500

48

5.2±0.1

25

500

60

5.2±0.1

25

500

72

5.2±0.1

25

500

96

6.1±0.1

35

1000

144

7.9±0.1

57

1200

192

7.9±0.1

55

500

-20 to +70

216

7.9±0.1

55

500

288

9.4±0.1

78

1000

BLOWING TEST

Fiber count(F)

Blowing machine

Suitable microduct(mm)

Blowing distance in 10/8 duct(m)

Blowing distance in 12/10 duct (m)

Blowing distance in 14/12 duct (m)

12 to 72

PLUMETTAZ

PR-140 Minijet-400 15bar

10/8 or 12/10

1800

2300

/

96

10/8 or 12/10

1800

2300

/

144

12/10

/

1200

/

192 to 216

12/10

/

1500

/

288

14/12

/

/

1500

ENVIRONMENT PERFORMANCE

Item

Testing Method

Testing Results

Temperature cycling

IEC 60794-1-2-F1

Allowable additional attenuation(1550nm)

G.652B

G.652D

G.655

≤0.10 dB/km,reversible;

Water penetration

Water column:1m,1m cable,Period:24 hours

No water leak throught the open end of cable

Filling compound flow

70℃ Period:24 hours

No compound flow from the cable
