Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable
Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable
Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable
Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable
Specifications
Brand Name :
PUNAISGD
Model Number :
GYTC8S-144B1.3
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000km/month
Delivery Time :
7days
Packaging Details :
woode drum
Type :
GYTC8S-144B1.3
Crush Resistance :
1000N/2000N/3000N
Central Strength Member :
FRP or Steel Wire*7PCS
Fiber Model :
G652D
Temperature :
-20 to 70°C
Cable Diameter :
12.0mm
Armored Tape :
steel tape
Manufacturer :
Yes
Name :
Outdoor Fiber Optic Cable
Description

Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable

Product Description:

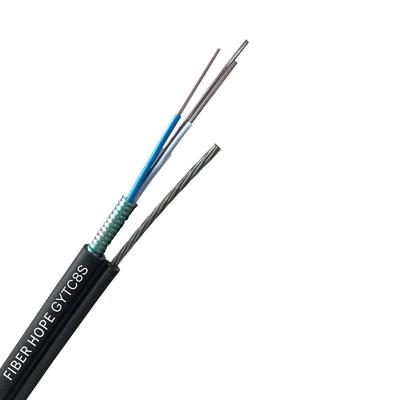

GYTC8S is a type of self-supporting outdoor fiber optic cable, which is designed with specialized features that make it suitable for use in aerial applications. It is known for its resistance to moisture and crushing, thanks to its figure 8 structure and polyethylene (PE) sheath. Corrugated steel tape armored and PE outer sheath provide the cable with additional crush and gun shot resistance features.

The center of the cable is comprised of a steel-wire strength member, which increases its tensile strength and is surrounded by a loose tube and water blocking system. This impact structure guarantees excellent mechanical and environmental performance, making it a powerful, reliable cable for outdoor applications.



Specification
Part NO:
Increased by 2 fiber
Fiber Count
Tubes
Fillers
cable OD(mm)
Cable Weight(kg/km)
GYTC8S -2~6
2~6
1
4
10.2*19.8
204
GYTC8S -8~12
8~12
2
3
10.2*19.8
204
GYTC8S -14~18
14~18
3
2
10.2*19.8
204
GYTC8S -20~24
20~24
4
1
10.2*19.8
204
GYTC8S-26~30
26~30
5
0
10.2*19.8
204
GYTC8S -32~36
32~36
6
0
10.8*20.4
225
GYTC8S -38~48
38~48
4
1
11.5*21.1
236
GYTC8S -50~60
50~60
5
0
11.5*21.1
236
GYTC8S -62~72
62~72
6
0
12.3*21.9
270
GYTC8S -74~84
74~84
7
1
13.1*22.7
283
GYTSC8S-86~96
86~96
8
0
13.8*23.4
299
GYTC8S -98~108
98~108
9
1
14.6*24.2
319
GYTC8S -110~120
110~120
10
0
15.4*25
340
GYTC8S -122~132
122~132
11
1
16.2*25.8
361
GYTC8S-134~144
134~144
12
0
16.9*26.5
380


Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable
Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable
Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable
Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable

Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable

Details Images
Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable


Installation Instructions

Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable
Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable
Product Paramenters
Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable


Company Profile
Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable
Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable
Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable
Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable
Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable
Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable
Product packaging
Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable
Our Advantages
Single Mode Outdoor LSZH/HDPE Fiber Optic Cable 2-144 Cores GYTC8S Self Supporting Aerial Cable
