Mini Figure 8 Cable Self-Supporting Fiber Optic Cable 24 Core Figure 8 Steel Armored GYXTC8S
Mini Figure 8 Cable Self-Supporting Fiber Optic Cable 24 Core Figure 8 Steel Armored GYXTC8S
Mini Figure 8 Cable Self-Supporting Fiber Optic Cable 24 Core Figure 8 Steel Armored GYXTC8S
Mini Figure 8 Cable Self-Supporting Fiber Optic Cable 24 Core Figure 8 Steel Armored GYXTC8S
Specifications
Brand Name :
PUNAISGD
Model Number :
GYXTC8S-24B1.3
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000km/month
Delivery Time :
7days
Packaging Details :
woode drum
Type :
GYXTC8S-24B1.3
Central Strength Member :
Messenger wire
Fiber Model :
G652D
Temperature :
-20 to 70°C
Cable Diameter :
9.0mm
Armored Tape :
steel tape
Manufacturer :
Yes
Name :
Outdoor Fiber Optic Cable
Description

Mini Figure 8 Cable Self-Supporting Fiber Optic Cable 24 Core Figure 8 Steel Armored GYXTC8S


Description

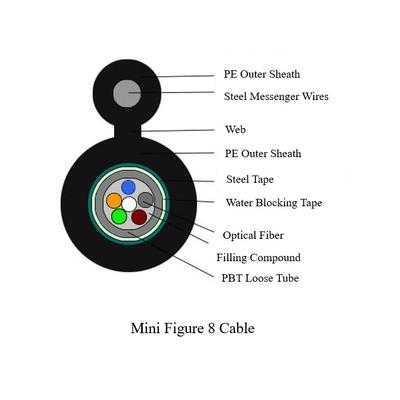

The structure of Mini Figure 8 GYTC8S optical cable is that 250μm optical fiber is sheathed in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. A layer of plastic-coated aluminum tape (APL) is added to the sheath outside the cable core in the form of longitudinal wrapping, and finally a polyethylene sheath is squeezed together with the steel strand to make the cross section of the "8" shape.


Product Standards


Mini Figure 8 GYXTC8S optical cable complies with YD/T1155-2011 and IEC60794-1 standards.


Features


1. Filling with water-blocking ointment step by step, full-section water-blocking of optical cable unit

2. Stable fiber excess length control

3. After the cable is formed, the additional attenuation of the optical fiber is less than 0.02dB/Km, and the dispersion value does not change

4. Excellent environmental performance, applicable temperature range can reach -40℃~+70℃


Technical data

Cable Type
Fiber Count
Cable Diameter mm
Cable Weight kg/km
Tensile Strength
Crush Resistance
Bending Radius
Long/Short Term
Long/Short Term
Static/Dynamic
N
N/100mm
mm
GYXTC8S
2-12
9.8*18.5
166
2000/6000
300/1000
10D/20D
GYXTC8S
14-24
10.6*19.3
180
2000/6000
300/1000
10D/20D
