Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Specifications
Brand Name :
PUNAISGD
Model Number :
GYTC8S-24B1.3
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000km/month
Delivery Time :
7days
Packaging Details :
woode drum
Type :
GYTC8S-24B1.3
Crush Resistance :
1000N/2000N/3000N
Central Strength Member :
FRP or Steel Wire*7PCS
Fiber Model :
G652D
Temperature :
-20 to 70°C
Cable Diameter :
7.0mm/9.0mm/12.0mm
Armored Tape :
steel tape
Manufacturer :
Yes
Name :
Outdoor Fiber Optic Cable
Description

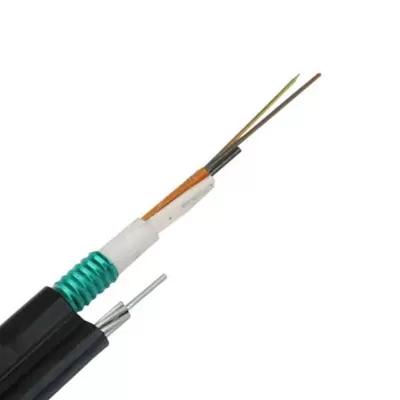

Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S

Description

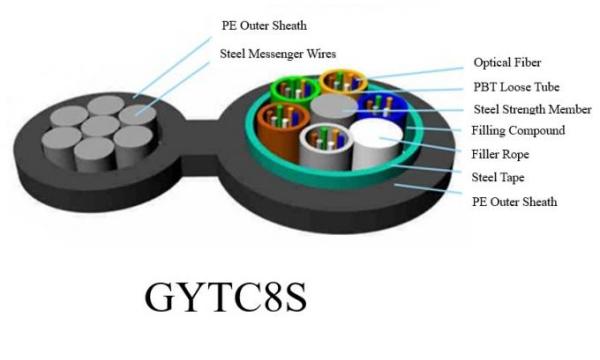

The structure of GYTC8S optical cable is that 250μm optical fiber is sheathed in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the cable core is a metal reinforced core (also non-metallic, such as FRP, etc.), and the loose tube (and filler rope) is twisted around the central reinforced core to form a compact circular cable core. A layer of plastic-coated aluminum tape (APL) is added to the sheath outside the cable core in the form of longitudinal wrapping, and finally a polyethylene sheath is squeezed together with the steel strand to make the cross section of the "8" shape.


Specification
Part NO:
Increased by 2 fiber
Fiber Count
Tubes
Fillers
cable OD(mm)
Cable Weight(kg/km)
GYTC8S -2~6
2~6
1
4
10.2*19.8
204
GYTC8S -8~12
8~12
2
3
10.2*19.8
204
GYTC8S -14~18
14~18
3
2
10.2*19.8
204
GYTC8S -20~24
20~24
4
1
10.2*19.8
204
GYTC8S-26~30
26~30
5
0
10.2*19.8
204
GYTC8S -32~36
32~36
6
0
10.8*20.4
225
GYTC8S -38~48
38~48
4
1
11.5*21.1
236
GYTC8S -50~60
50~60
5
0
11.5*21.1
236
GYTC8S -62~72
62~72
6
0
12.3*21.9
270
GYTC8S -74~84
74~84
7
1
13.1*22.7
283
GYTSC8S-86~96
86~96
8
0
13.8*23.4
299
GYTC8S -98~108
98~108
9
1
14.6*24.2
319
GYTC8S -110~120
110~120
10
0
15.4*25
340
GYTC8S -122~132
122~132
11
1
16.2*25.8
361
GYTC8S-134~144
134~144
12
0
16.9*26.5
380


Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S

Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S

Details Images
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S


Installation Instructions

Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Product Paramenters
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S


Company Profile
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Product packaging
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
Our Advantages
Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
