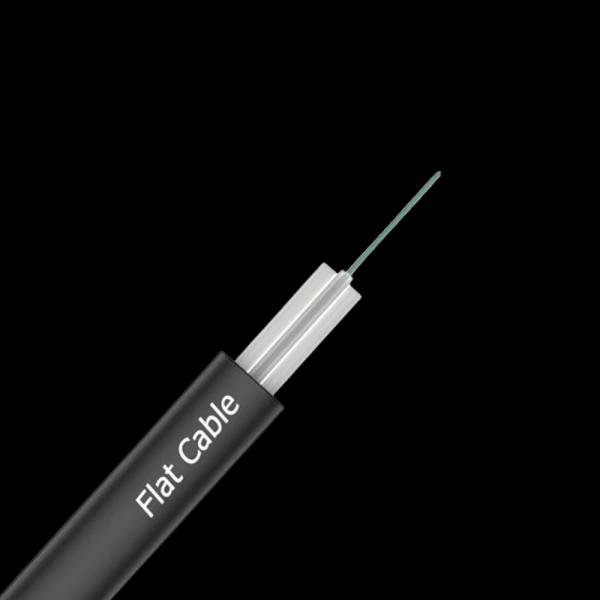

GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
Specifications
Brand Name :
PUNAISGD
Model Number :
GYFXTY-8b1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000km/month
Delivery Time :
7days
Packaging Details :
woode drum
Type :
GYFXTY-8b1.3
Cores :
8 fibers
Strength Member Material :
FRP
Construction :
Central Loose Tube
Useful :
Outdoor Fiber Optic Cable
Transport Package :
Wooden Drum
Cable Dimension :
6.8mm
Jacket Color :
Black
Mode :
Singlemode G652D
Name :
Outdoor Fiber Optic Cable
Description

GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable


This kind of dielectric cables offer the ease of installation of standard flat cables in an easy-access, single-tube design. The dielectric version eliminates any bonding and grounding requirements. The cables can offer exceptional crush resistance. Uni-Tube All Dielectric Aerial Drop cable is Especially designed for Fiber to the Subscriber applications. It is a flat, all dielectric cable ideally suited for self-supporting drop-type installations as well as conduit builds.

Characteristics:
Small size, Low cost.
the fiber counts is up to 24 fibers.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel FRP wire and overall glass yarn to enhance tensile resistant.
And protect cable from mechanical damage.
Designed for use with inexpensive attachment hardware.
Self-supported no messenger needed.



Cable Count Out sheath Weight Minimum allowable Tensile Strength
minimum allowable Crush Load
Minimum Bending Radius
Storage
Diameter (N) (N/100mm) (MM) temperature
(MM) (KG) short term long term short term long term short term long term (℃)
2 7.2 45 1200 500 1000 300 20D 10D 20
4 7.2 45 1200 500 1000 300 20D 10D 20
6 7.2 45 1200 500 1000 300 20D 10D 20
8 7.2 45 1200 500 1000 300 20D 10D 20
12 7.2 45 1200 500 1000 300 20D 10D 20
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable

Details Images
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable


Installation Instructions

GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
Product Paramenters
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable


Company Profile
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
Product packaging
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
Our Advantages
GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
