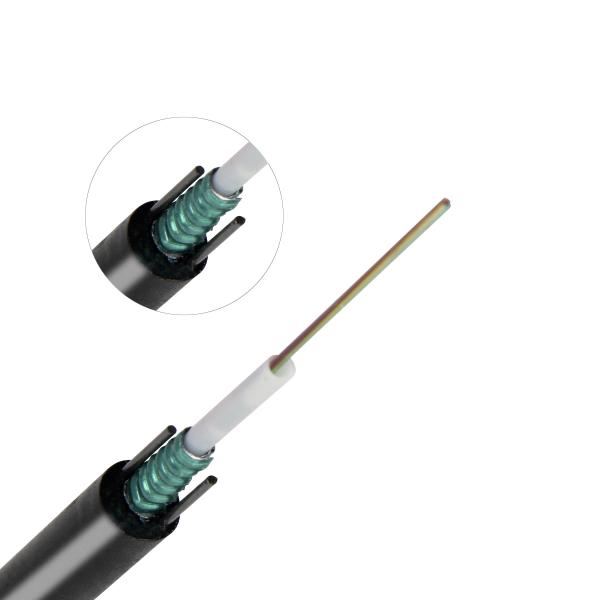

Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable
Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable
Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable
Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable
Specifications
Brand Name :
PUNAISGD
Model Number :
GYXTW-2B1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
china
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000km/month
Delivery Time :
7days
Packaging Details :
woode drum
Name :
Armored Outdoor Fiber Optic Cable
Type :
GYXTW-2B1.3
Strength Member :
Two steel wire
Fiber Type :
OM2
Central Strength Member :
Steel Wire
Installation :
Aerial
Business Type :
Manufacturer
Oem :
YES
Laying Methods :
Aerial
Construction :
Stranded Loose Tube
Armour :
Steel Tape
Description

Fiber Optic Cable OM2 GYXTW Multimode 12 8 4 Core Outdoor Armored Outdoor Fiber Optic Cable


Product description

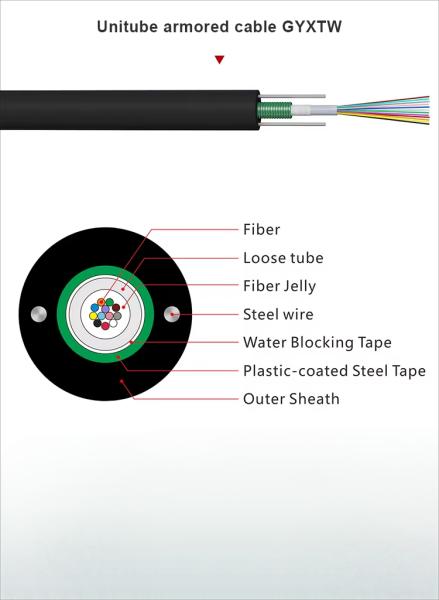

The fibers,200/250um, are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE)sheath.

Product Features

·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·PSP enhancing moisture-proof
·Two parallel steel wires ensure tensile strength
·PE sheath gives excellent UV protection
·Small diameter, light weight and friendly installation
·Long delivery length

Product Name
GYXTW fiber optic cable
Fiber Count
8 Fibers
Construction
Central Loose Tube
Fiber Type
Singlemode 9/125
Outer Jacket Material
PE(Black)
Strength MemberMaterial
Steel Wire
Weight
50KG/KM
Armor Layer
PSP Steel
Application
Aerial and Duct
Steel Diameter
0.8mm *2
Jacket Diameter
8.0mm-10.0mm
Jacket Material
PE
Test Wavelength
1310/1550nm
Operation temperature
-40℃~ 85℃

Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable
Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable

Details Images
Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable


Installation Instructions

Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable
Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable
Product Paramenters
Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable


Company Profile
Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable
Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable
Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable
Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable
Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable
Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable
Product packaging
Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable
Our Advantages
Armored Outdoor Fiber Optic Cable Multimode 12/8/4 Core GYXTW OM2 Fiber Optic Cable
