GYTA33 G652D Direct Bury Fiber Optic Cable 12 24 48 72 96 144 288 Core Anti Rodent Armoured
GYTA33 G652D Direct Bury Fiber Optic Cable 12 24 48 72 96 144 288 Core Anti Rodent Armoured
GYTA33 G652D Direct Bury Fiber Optic Cable 12 24 48 72 96 144 288 Core Anti Rodent Armoured
GYTA33 G652D Direct Bury Fiber Optic Cable 12 24 48 72 96 144 288 Core Anti Rodent Armoured
GYTA33 G652D Direct Bury Fiber Optic Cable 12 24 48 72 96 144 288 Core Anti Rodent Armoured
GYTA33 G652D Direct Bury Fiber Optic Cable 12 24 48 72 96 144 288 Core Anti Rodent Armoured
Specifications
Brand Name :
PUNAISGD
Model Number :
GYTA33-24b1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000
Delivery Time :
7days
Packaging Details :
wooden drum
Type :
Outdoor Fiber Optic Cable
Product name :
GYTA33-24b1.3 Cable
armored :
steel wires around armored
Application :
Directly buired and underwater
Outer Jacket Material :
PE(Black)
Armor Layer :
Aluminum Tape
Package :
Wooden Drum
Length :
or as required,1KM OR 2KM OR 500M,1 km 2km 3km per drum,1km,2km or customized length
Description
Outdoor Fiber Optic Cable GYTA33(G652D) Direct Bury 12 24 48 72 96 144 288 Core Anti Rodent Armoured

Fiber
Count
Nominal
Diameter (mm)
Nominal
Weight
(kg/km)
Max Fibers
per Tube
Max
No. of
(Tubes+
fillers)
Allowable Tensile
Load (N)
Allowable Crush
Resistance
(N/100mm)
Short Term
Long Term
Short Term
Long Term
2~30
13.2
162
6
5
3000
1000
3000
1000
32~48
13.8
175
8
6
3000
1000
3000
1000
50~72
14.6
205
12
6
3000
1000
3000
1000
74~96
16
230
12
8
3000
1000
3000
1000
98~144
17.6
285
12
12
3000
1000
3000
1000
>144
Available upon customer’s request
Note:
1. For flame retardant cable, outer sheath can be made of low-smoke halogen-free (LSZH) material, and the type is GYTZS.
2.Upon customer’s request, cables with longitudinal color strip on outer sheath can be offered. More details, please refer to GYTA series.
3. Special cable structure can be designed and manufactured on customer’s request.
3.Optical Characteristics
Fiber type
G.652D(9/125)
Loose tube
PBT Loose Tube
Attenuation@1310nm
≤ 0.36 dB/km
Attenuation@1550nm
≤ 0.22 dB/km
Temperature range
Transport/Operating -40~+70°C

4.Features
Steel wire armored offer high tension and crush resistance
Special gel in the tube offers critical protection for the fibers
With steel central strength member
PE jacket itself prevents UV, and UV material can be added
to perform much better
It’s available under high and low temperatures and anti-aging
5.Applications
River or submarine
GYTA33 G652D Direct Bury Fiber Optic Cable 12 24 48 72 96 144 288 Core Anti Rodent Armoured

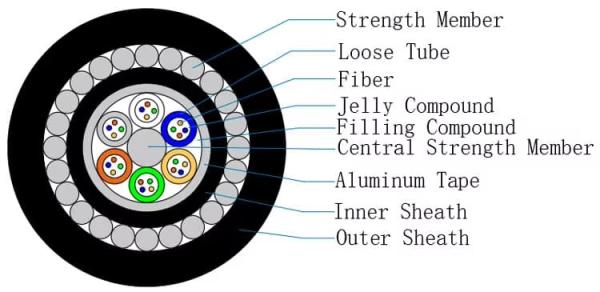

Cable structure
1. Fiber
2. Loose Tube
3.Armoured steel wires
4. PE sheath
5.Steel tape
6. metal strength member
GYTA33 G652D Direct Bury Fiber Optic Cable 12 24 48 72 96 144 288 Core Anti Rodent ArmouredGYTA33 G652D Direct Bury Fiber Optic Cable 12 24 48 72 96 144 288 Core Anti Rodent Armoured
GYTA33 G652D Direct Bury Fiber Optic Cable 12 24 48 72 96 144 288 Core Anti Rodent Armoured
Installation Instructions
GYTA33 G652D Direct Bury Fiber Optic Cable 12 24 48 72 96 144 288 Core Anti Rodent Armoured
Company Profile
GYTA33 G652D Direct Bury Fiber Optic Cable 12 24 48 72 96 144 288 Core Anti Rodent Armoured
GYTA33 G652D Direct Bury Fiber Optic Cable 12 24 48 72 96 144 288 Core Anti Rodent Armoured
GYTA33 G652D Direct Bury Fiber Optic Cable 12 24 48 72 96 144 288 Core Anti Rodent Armoured
GYTA33 G652D Direct Bury Fiber Optic Cable 12 24 48 72 96 144 288 Core Anti Rodent Armoured
Product packaging
GYTA33 G652D Direct Bury Fiber Optic Cable 12 24 48 72 96 144 288 Core Anti Rodent Armoured
Our Advantages
GYTA33 G652D Direct Bury Fiber Optic Cable 12 24 48 72 96 144 288 Core Anti Rodent Armoured
FAQ
1. Why choose us?
We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%). There are total about 11-50 people in our factory.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.

4. Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
