Outdoor Single Mode Fiber Optic Cable GYTA53 GYTA GYXTW GYFTY GYTS GYXTC8S
Outdoor Single Mode Fiber Optic Cable GYTA53 GYTA GYXTW GYFTY GYTS GYXTC8S
Outdoor Single Mode Fiber Optic Cable GYTA53 GYTA GYXTW GYFTY GYTS GYXTC8S
Outdoor Single Mode Fiber Optic Cable GYTA53 GYTA GYXTW GYFTY GYTS GYXTC8S
Outdoor Single Mode Fiber Optic Cable GYTA53 GYTA GYXTW GYFTY GYTS GYXTC8S
Outdoor Single Mode Fiber Optic Cable GYTA53 GYTA GYXTW GYFTY GYTS GYXTC8S
Specifications
Brand Name :
PUNAISGD
Model Number :
GYTS-144B1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000
Delivery Time :
7days
Packaging Details :
wooden drum
Type :
GYTS-144B1.3
Number of Conductors :
144B1.3
armored :
steel wire and armored
Application :
duct
Outer Jacket Material :
PE(Black)
Armor Layer :
Steel Tape
Package :
Wooden Drum
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Fiber color :
Blue,Orange,Brown,Aqua,Grey
Name :
Outdoor Fiber Optic Cable
Description

Outdoor Fiber Optic Cable Single mode Fiber Optic Cable Gyta53/Gyta/Gyxtw/Gyfty/Gyts/Gyxtc8S communication cable

Product Description

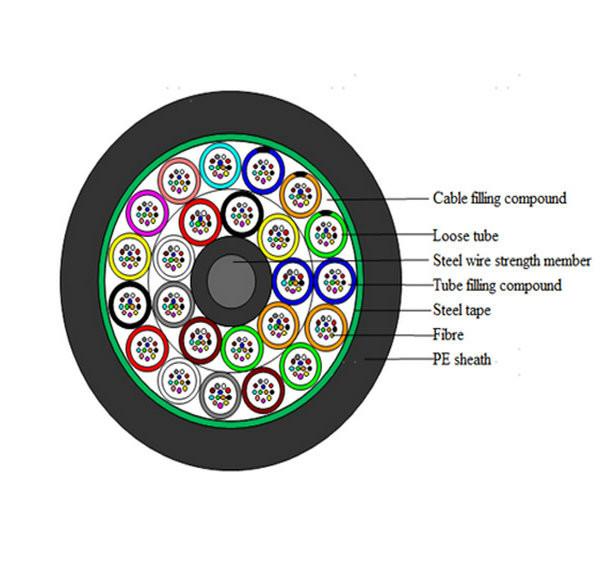

The structure of GYTA optical cable is to put 250µm optical fiber into the loose tube, which is made of high modulus material, and filled with waterproof compound. In the center of the cable core is a metallic strength member,Tubes (and fillers) are stranded around the strength member into a compact and round cable core, which is filled with the waterproofing compound to protect it from water ingress. Plastic coated aluminum tape (APL) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.

Applications

• Aerial self-supporting

• Outdoor wiring



Dimensions of Cable Constructions
Fiber count Structure Fibers per tube Loose tube diameter (mm) CSM diameter/pad diameter (mm) Nominal Thickness of outer jacket (mm) Cable diameter/Height (mm) Cable weight (kg/km)
4 1+5 4 1.8±0.1 1.4/1.4 1.4 8.5±0.3 75
6 1+5 6 1.85±0.1 1.4/1.4 1.4 8.5±0.3 75
8 1+5 8 1.9±0.1 1.4/1.4 1.4 8.5±0.3 75
12 1+5 6 1.9±0.1 1.4/1.4 1.4 8.5±0.3 75
24 1+5 6 1.9±0.1 1.4/1.4 1.4 8.5±0.3 75
36 1+6 12 1.95±0.1 1.5/1.5 1.6 8.8±0.3 85
48 1+5 12 1.95±0.1 1.5/1.5 1.6 9.3±0.3 90
60 1+5 12 1.95±0.1 1.6/1.6 1.6 9.3±0.3 90
72 1+6 12 1.95±0.1 2.0/2.0 1.6 9.6±0.3 95
96 1+8 12 1.95±0.1 1.4/3.2 1.6 11.5±0.3 120
144 1+12 12 1.95±0.1 2.0/5.7 1.8 14.2±0.3 185
216 1+6+12 12 1.95±0.1 2.0/2.0 1.8 14.5±0.3 200
288 1+9+15 12 1.95±0.1 2.0/3.7 1.8 16.2±0.3 240
