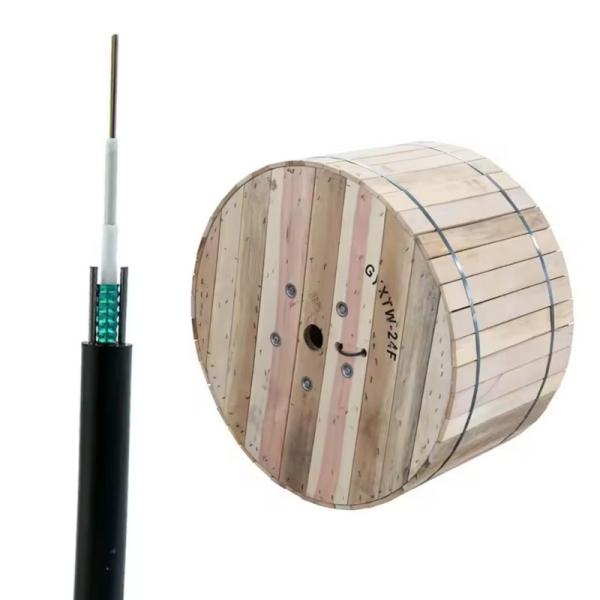

Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Specifications
Brand Name :
PUNAISGD
Model Number :
GYXTW-4b1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000km/month
Delivery Time :
7days
Packaging Details :
woode drum
Type :
GYXTW-4b1.3
Warranty :
25 years
Laying Mode :
Duct/Aerial
Samples :
free
Working Temperature :
40 ~+75 0C
Strength Member Material :
Steel Wire
Fiber Material :
single mode G652 G655 G657
Model :
Armored fiber optic cable
Operating Temperature :
-40°C to +70°C
Jacket Material :
PE/LSZH
Service :
OEM&ODM
Name :
Outdoor Fiber Optic Cable
Description
Outdoor Fiber Optic Cable Fiber Cable 8 Core Multi Mode OM4 50/125 GYXTW

GYXTW fiber optic cable is a type of fiber optic cable that is widely used in aerial application. This type of fiber optic cable has been praised due to its exceptional performance in Long Distance Symmetric role. As a matter of fact, GYXTW fiber optic cable plays an important role in the telecommunication industry and it’s highly recommended by many technicians.

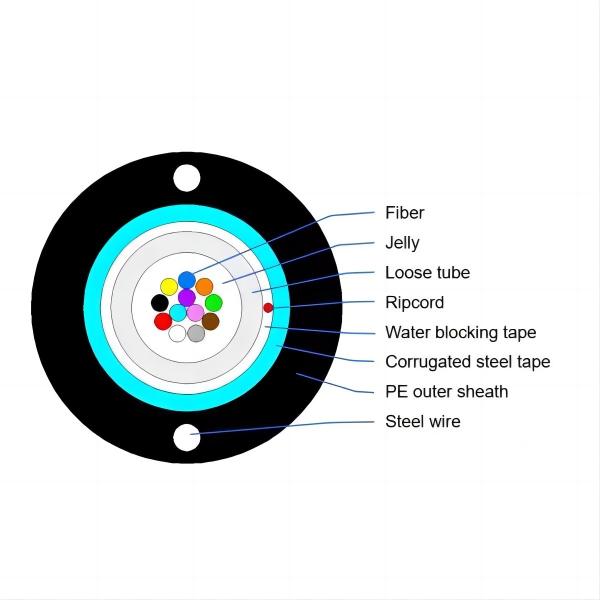

Cable structure and parameter

Fiber
count		Tube
diameter

Steel wire
diameter

Sheath thickness
(nominal*)		Overall diameter
(nominal**)		Weight
(approx.)
mmmmmmmmkg/km
62.51.02.38.473
123.01.02.38.981


Performance of Cabled Optical Fiber
The performance of cabled optical fiber (ITU-T Rec. G.652D)

ItemSpecification
Fiber typeSingle mode
Fiber materialDoped silica
Attenuation coefficient
@ 1310 nm
@ 1383 nm
@ 1550 nm
@ 1625 nm
≤ 0.36 dB/km
≤0.35 dB/km
≤0.22 dB/km
≤0.25 dB/km
Point discontinuity≤ 0.05 dB
Cable cut-off wavelength≤ 1260 nm
Zero-dispersion wavelength1300 ~ 1324 nm
Zero-dispersion slope≤0.092 ps/(nm².km)
Chromatic dispersion
@ 1288 ~ 1339 nm
@ 1271 ~ 1360 nm
@ 1550 nm
@ 1625 nm
≤3.5 ps/(nm. km)
≤5.3 ps/(nm. km)
≤18 ps/(nm. km)
≤22 ps/(nm. km)
PMD≤0.2 ps/km½
Mode field diameter @ 1310 nm(8.6~9.5)±0.6 um
Core / Clad concentricity error≤0.6 um
Cladding diameter125.0 ± 1 um
Cladding non-circularity≤1.0%
Primary coating diameter245 ± 10 um
Proof test level100 kpsi (=0.69 Gpa), 1%
Temperature dependence
0℃~ +70℃ @ 1310 & 1550nm		≤ 0.1 dB/km

Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Details Images
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Installation Instructions
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Product Paramenters
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Company Profile
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Product packaging
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
Our Advantages
Multimode Outdoor Fiber Optic Cable 8 Core OM4 Fiber Cable 50/125 GYXTW
