Center Loose Armored Optical Cable 4 Core 6 Core 8 Core 12 Core
Center Loose Armored Optical Cable 4 Core 6 Core 8 Core 12 Core
Center Loose Armored Optical Cable 4 Core 6 Core 8 Core 12 Core
Center Loose Armored Optical Cable 4 Core 6 Core 8 Core 12 Core
Center Loose Armored Optical Cable 4 Core 6 Core 8 Core 12 Core
Center Loose Armored Optical Cable 4 Core 6 Core 8 Core 12 Core
Specifications
Brand Name :
PUNAISGD
Model Number :
GYXTW-8b1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000km/month
Delivery Time :
7days
Packaging Details :
woode drum
Type :
GYXTW-8b1.3
Strength Member Material :
Steel Wire
Model :
Armored fiber optic cable
Operating Temperature :
-40°C to +70°C
Jacket Material :
PE/LSZH
Service :
OEM&ODM
Standard Length :
2,000m
Number Of Fiber :
8
Cable Structure :
Multi-Loose Tube Steel Tape armor
Oem Factory :
Yes
Out Color :
Black
Name :
Outdoor Fiber Optic Cable
Description
Outdoor Fiber Optic Cable Fiber Cable GYXTW 4 / 6 /8 /12 core Center Loose Armored Optical Cable

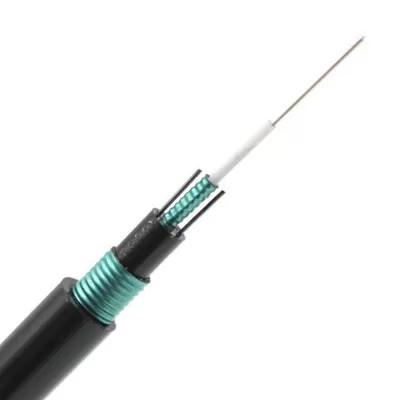

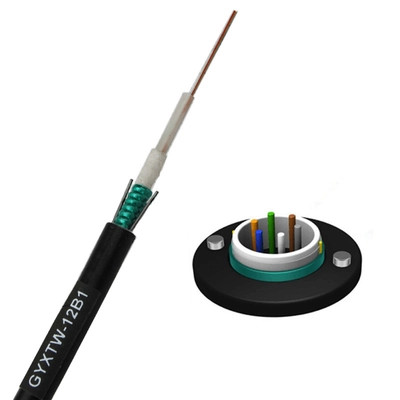

The GYXTW type optical cable places the optical fiber in a loose sleeve made of high modulus plastic, the sleeve is filled with waterproof filler, the sleeve is lengthwise wrapped with a layer of PSP, and the water-blocking material is filled between the PSP and the sleeve. Two parallel steel wires are placed on both sides of the steel strip, and the optical cable is covered with a PE sheath.

Features

Good mechanical properties, good high temperature resistance

Loose casing with high strength and resistance to hydrolysis

Special casing fillers play a key role in protecting optical fibers

Anti-extrusion, good flexibility

PSP enhanced moisture resistance

Two parallel wires ensure tensile strength

Light weight, SMall diameter, easy installation

OPTICAL CHARACTERISTICS
G652
50/125μm
62.5/125μm
Attenuation
(+20℃)
@850 nm
<=3.0dB/km
<=3.3dB/km
@1300 nm
<=1.0dB/km
<=1.0dB/km
@1310 nm
<=0.36dB/km
@1550 nm
<=0.22dB/km
Bandwidth
(Class A)
@850 nm
>=500 MHz*km
>=200 MHz*km
@1300 nm
>=1000 MHz*km
>=600 MHz*km
Numerical Aperture
0.200+-0.015NA
0.275+-0.015NA
Cable cut-off wavelength
<=1260 nm

CABLE CHRACTERISTICS

1. Uni-tube gel-filled construction for superior fiber protection.
2. Metallic armor to protect cable from rodent attack and mechanical damage.
3. Embedded steel wire provide desirable tensile strength and crush resistance.
4. Compact, easy to install.
5. UV and waterproof design.


Fiber count
Nominal
Diameter
(mm)
Nominal
Weight
(kg/km)
Allowable Tensile Load
(N)
Allowable Crush Resistance(N/100mm)
short term
long term
short term
long term
2~12
8.0
90
1500
600
1000
300
14~24
8.0
110
1500
600
1000
300
