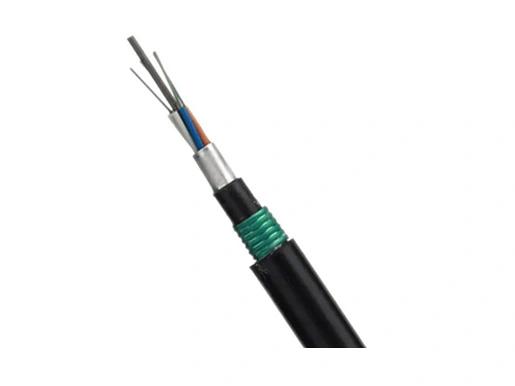

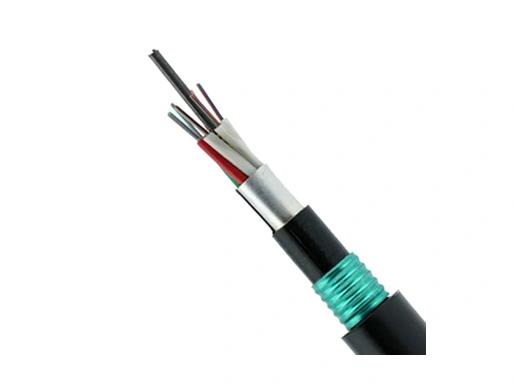

GYTA53 Direc-burial Double Sheath Double Armors 24 Core Fiber Optic Cable
GYTA53 Direc-burial Double Sheath Double Armors 24 Core Fiber Optic Cable
GYTA53 Direc-burial Double Sheath Double Armors 24 Core Fiber Optic Cable
GYTA53 Direc-burial Double Sheath Double Armors 24 Core Fiber Optic Cable
GYTA53 Direc-burial Double Sheath Double Armors 24 Core Fiber Optic Cable
GYTA53 Direc-burial Double Sheath Double Armors 24 Core Fiber Optic Cable
Specifications
Brand Name :
PUNAISGD
Model Number :
GYTS53-24B1.3
Certification :
CE/ROHS/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1km
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
1000000
Delivery Time :
7days
Packaging Details :
wooden drum
Type :
GYTS53-24B1.3
Number of Conductors :
24B1.3
armored :
duoble steel tap double aluminum
Application :
duct/Underground
Outer Jacket Material :
PE(Black)/HDPE/LSZH
Armor Layer :
Steel Tape
Package :
Wooden Drum
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Fiber color :
Blue,Orange,Brown,Aqua,Grey
Name :
Outdoor Fiber Optic Cable
Description
GYTA53 Direct-burial Double Sheath Double Armors 24 Core Fiber Optic Cable
Product Specifications
Attribute Value
Type GYTS53-24B1.3
Number of Conductors 24B1.3
Armored Double steel tape double aluminum
Application Duct/Underground
Outer Jacket Material PE(Black)/HDPE/LSZH
Armor Layer Steel Tape
Package Wooden Drum
Fiber type G652D, single mode or multi mode, 50/125, 62.5/125, OM3
Fiber color Blue, Orange, Brown, Aqua, Grey

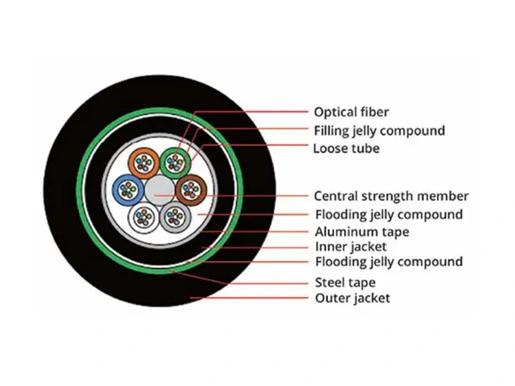

Product Description

The GYTA53 Optical Fiber Cable is designed for installation in harsh environments where mechanical impact is expected, including direct burial applications. It is also suitable for duct installation where rodent resistance or moisture resistance is required.

Features & Applications
  • Excellent optical, mechanical & environmental performance
  • Moisture-proof & rodent-proof construction
  • High strength-to-weight ratio
  • High tensile and crush strength
  • Corrosion resistance
  • Flexible bending radius
  • Ideal for long haul/backbone applications
GYTA53 Direc-burial Double Sheath Double Armors 24 Core Fiber Optic Cable
Technical Specifications
Fiber Num. Outer diameter (mm) Weight (kg/km) Min.Bending radius(mm) Tension (N) Crash loading (N/100mm)
2-24 13.3 210 12.5 times O.D. 3000 1000
26-36 13.6 220 25 times O.D. 3000 1000
38-60 14.1 225 25 times O.D. 3000 1000
62-72 14.6 255 25 times O.D. 3000 1000
74-96 16.2 305 25 times O.D. 3000 1000
98-120 17.7 350 25 times O.D. 3000 1000
122-144 19.1 395 25 times O.D. 3000 1000
146-216 19.6 420 25 times O.D. 3000 1000
218-240 22.8 530 25 times O.D. 3000 1000
242-288 25 620 25 times O.D. 3000 1000
GYTA53 Direc-burial Double Sheath Double Armors 24 Core Fiber Optic Cable GYTA53 Direc-burial Double Sheath Double Armors 24 Core Fiber Optic Cable
