GYTA S Armored Fiber Optic Cable 4 Core 144 Core Single Mode Overhead Buried
GYTA S Armored Fiber Optic Cable 4 Core 144 Core Single Mode Overhead Buried
GYTA S Armored Fiber Optic Cable 4 Core 144 Core Single Mode Overhead Buried
GYTA S Armored Fiber Optic Cable 4 Core 144 Core Single Mode Overhead Buried
GYTA S Armored Fiber Optic Cable 4 Core 144 Core Single Mode Overhead Buried
GYTA S Armored Fiber Optic Cable 4 Core 144 Core Single Mode Overhead Buried
GYTA S Armored Fiber Optic Cable 4 Core 144 Core Single Mode Overhead Buried
GYTA S Armored Fiber Optic Cable 4 Core 144 Core Single Mode Overhead Buried
Specifications
Brand Name :
Yiyuan
Certification :
ISO 9001;ISO 14001;OHSAS 18001
Place of Origin :
China
MOQ :
1KM
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000km/month
Delivery Time :
30 working days after received your payment

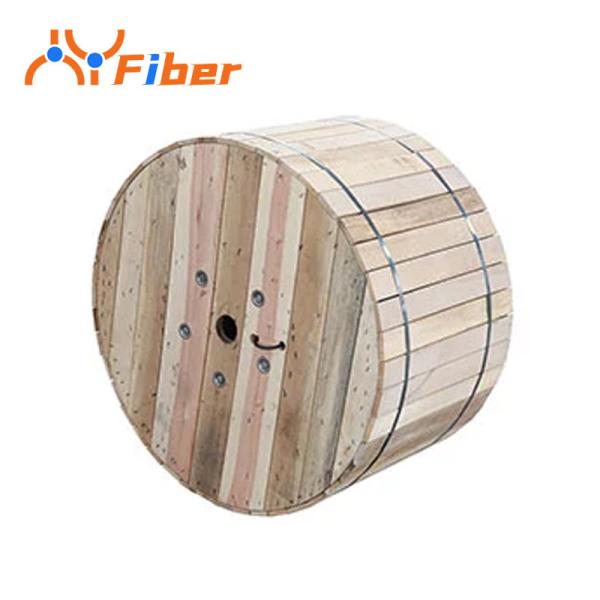

Packaging Details :
Wood coil strand
Product Name :
Armored Fiber Optic Cable
Fiber Count :
2-288 Core
OEM :
Accepted
Application :
Outdoor Duct
Jacket material :
PE PVC LSZH HDPE
Color :
Black or customized
Strength member :
Steel wire
Installation :
Self-supporting Aerial
Package :
Plywood Reel/customized
Description

GYTA S Armored Fiber Optic Cable 4 Core 144 Core Single Mode Overhead Buried

Product Description

GYTA Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.

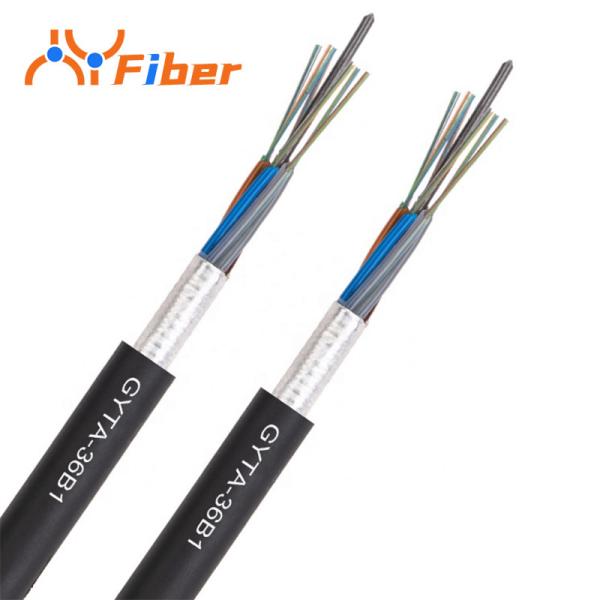

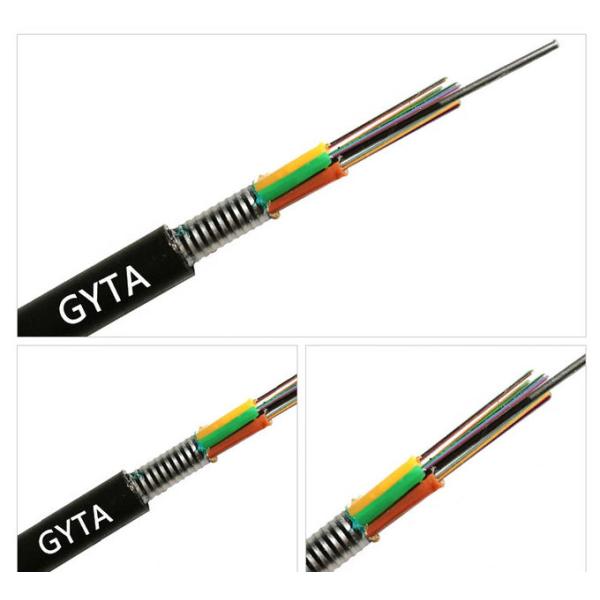

Product Construction:

1. Fiber: 2-288 fiber Multi-loose tube gel-filled

2. Central Strength Member: Fiberglass reinforced Platic (FRP) or steel wire.

3. Armor: Aluminum Tape Armor

4. Outer Jacket: Black UV Polyethylene(PE)

Features:

• Up to 288 fibers.

• Loose tube gel-filled construction for superior fiber protection.

• Aluminum tape armor to protect cable from mechanical damage.

• UV and waterproof design.

Application:

• Interbuilding voice or data communication backbone.

• Installed in duct, underground conduit .

Optical Characteristics:

Fiber Type G.652 G.655 50/125^m 62.5/125^m
Attenuation
(+20X)		 850 nm <3.0 dB/km <3.3 dB/km
1300 nm <1.0 dB/km <1.0 dB/km
1310 nm <0.36 dB/km <0.40 dB/km
1550 nm <0.22 dB/km <0.23 dB/km
Bandwidth 850 nm >500 MHz-km >200 Mhz-km
1300 nm >500 MHz-km >500 Mhz-km
Numerical Aperture 0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength cc <1260 nm <1450 nm

Structure and Technical Specifications

Fiber
Count		 Nominal
Diameter
(mm)		 Nominal
Weight
(kg/km)		 Max Fiber
Per Tube

Max No.

of(Tubes+

fillers)

 Allowable Tensile
Load(N)		 Allowable Crush
Resistance(N/100mm)
Short Term Long Term Short Term Long Term
2~36 10.3 109 6 6 1500 600 1000 300
38~72 11.5 145 12 6 1500 600 1000 300
74~96 13.5 175 12 8 1500 600 1000 300
98~120 14.8 209 12 10 1700 600 1000 300
122~144 16.6 249 12 12 2000 600 1000 300
146~216 16.7 254 12 18(2 layers) 2000 600 1000 300
218~288 19.0 325 12 24(2 layers) 2500 600 1000 300

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.

GYTA S Armored Fiber Optic Cable 4 Core 144 Core Single Mode Overhead BuriedGYTA S Armored Fiber Optic Cable 4 Core 144 Core Single Mode Overhead Buried
