48 Core Loose Buffered Fiber Optic Cable Aluminum Tape Armor
48 Core Loose Buffered Fiber Optic Cable Aluminum Tape Armor
48 Core Loose Buffered Fiber Optic Cable Aluminum Tape Armor
48 Core Loose Buffered Fiber Optic Cable Aluminum Tape Armor
48 Core Loose Buffered Fiber Optic Cable Aluminum Tape Armor
48 Core Loose Buffered Fiber Optic Cable Aluminum Tape Armor
Specifications
Brand Name :
Yiyuan
Certification :
ISO 9001;ISO 14001;OHSAS 18001
Place of Origin :
China
MOQ :
1KM
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000km/month
Delivery Time :
30 working days after received your payment
Packaging Details :
Wood coil strand
Product Name :
Armored Fiber Optic Cable
Fiber Count :
2-288 Core
OEM :
Accepted
Outer Sheath :
PE/HDPE/AT
Strength member :
Steel wire
Package :
Plywood Reel/customized
Description

48 Core Loose Buffered Fiber Optic Cable Aluminum Tape Armor

Description:

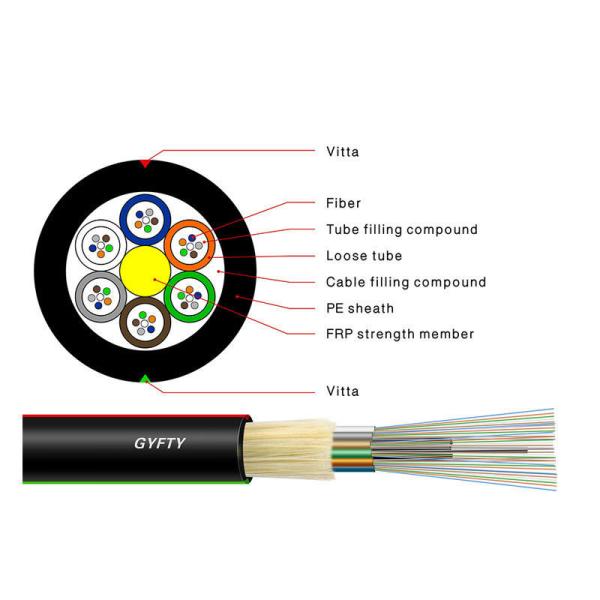

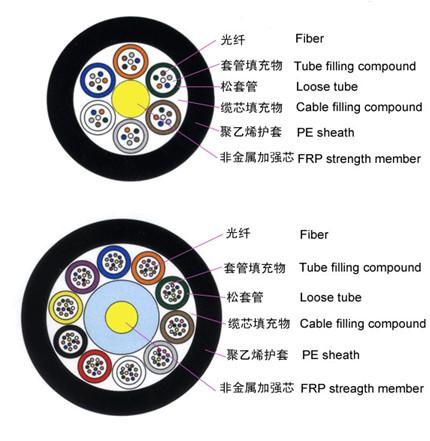

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

Characteristics:

· Good mechanical and temperature performance

· High strength looes tube that is hydrolysis resistant

· Special tube filling compound ensure a critical protection of fiber

· Crush resistance and flexibility

· The following measures are taken to ensure the cable watertight:

- Single Fiber Reinforced Plastic as the central strength member

- Loose tube filling compound

- 100% cable core filling

Standards:

GYFTY cable complies with Standard YD/T 901-2001 as well as IEC 60794-1.

Storage/Operating Temperature : -40℃ to + 70℃

Technical Parameters:
Cable Type Fiber Count Tubes Fillers Cable Diameter mm Cable Weight kg/km Tensile Strength Crush Resistance Bending Radius
Long/Short Term Long/Short Term Static/ Dynamic
N N/100mm mm
GYFTY-2~6 2~6 1 5 10.6 88 400/1000 300/1000 10D/20D
GYFTY-8~12 8~12 2 4 10.6 88 400/1000 300/1000 10D/20D
GYFTY-14~18 14~18 3 3 10.6 88 400/1000 300/1000 10D/20D
GYFTY -20~24 20~24 4 2 10.6 88 400/1000 300/1000 10D/20D
GYFTY-26~30 26~30 5 1 10.6 88 400/1000 300/1000 10D/20D
GYFTY-32~36 32~36 6 0 10.6 88 400/1000 300/1000 10D/20D
GYFTY-2~6 2~6 1 6 11 97 600/1500 300/1000 10D/20D
GYFTY-8~12 8~12 2 5 11 97 600/1500 300/1000 10D/20D
GYFTY-14~18 14~18 3 4 11 97 600/1500 300/1000 10D/20D
GYFTY-20~24 20~24 4 3 11 97 600/1500 300/1000 10D/20D
GYFTY-26~30 26~30 5 2 11 97 600/1500 300/1000 10D/20D
GYFTY-32~36 32~36 6 1 11 97 600/1500 300/1000 10D/20D
GYFTY-38~42 38~42 7 0 11 97 600/1500 300/1000 10D/20D
GYFTY-44~48 44~48 4 2 12 113 600/1500 300/1000 10D/20D
GYFTY-50~60 50~60 5 1 12 113 600/1500 300/1000 10D/20D
GYFTY-62~72 62~72 6 0 12 113 600/1500 300/1000 10D/20D
GYFTY-2~6 2~6 1 7 12 120 1000/3000 300/1000 10D/20D
GYFTY-8~12 8~12 2 6 12 120 1000/3000 300/1000 10D/20D
GYFTY-14~18 14~18 3 5 12 120 1000/3000 300/1000 10D/20D
GYFTY-20~24 20~24 4 4 12 120 1000/3000 300/1000 10D/20D
GYFTY-26~30 26~30 5 3 12 120 1000/3000 300/1000 10D/20D
GYFTY-32~36 32~36 6 2 12 120 1000/3000 300/1000 10D/20D
GYFTY-38~42 38~42 7 1 12 120 1000/3000 300/1000 10D/20D
GYFTY-44~48 44~48 8 0 12 120 1000/3000 300/1000 10D/20D
GYFTY-50~60 50~60 5 2 13 137 1000/3000 300/1000 10D/20D
GYFTY-62~72 62~72 6 1 13 137 1000/3000 300/1000 10D/20D
GYFTY-74~84 74~84 7 0 13 137 1000/3000 300/1000 10D/20D
GYFTY-86~96 86~96 8 0 13.9 154 1000/3000 300/1000 10D/20D
GYFTY-98~108 98~108 9 1 15.3 185 1000/3000 300/1000 10D/20D
GYFTY-110~120 110~120 10 0 15.3 185 1000/3000 300/1000 10D/20D
