12 Strand Buried Armored Fiber Optic Cable Single Mode Fiberglass Reinforced Platic
12 Strand Buried Armored Fiber Optic Cable Single Mode Fiberglass Reinforced Platic
12 Strand Buried Armored Fiber Optic Cable Single Mode Fiberglass Reinforced Platic
12 Strand Buried Armored Fiber Optic Cable Single Mode Fiberglass Reinforced Platic
Specifications
Brand Name :
Yiyuan
Certification :
OHSAS 18001, ISO 9001
Place of Origin :
China
MOQ :
1KM
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000km/month
Delivery Time :
30 working days after received your payment
Packaging Details :
Wood coil strand
Product Name :
Armored Fiber Optic Cable
Number of Cores :
2~288 core
OEM :
Accepted
Jacket material :
PE PVC LSZH HDPE
Color :
Black or customized
Description

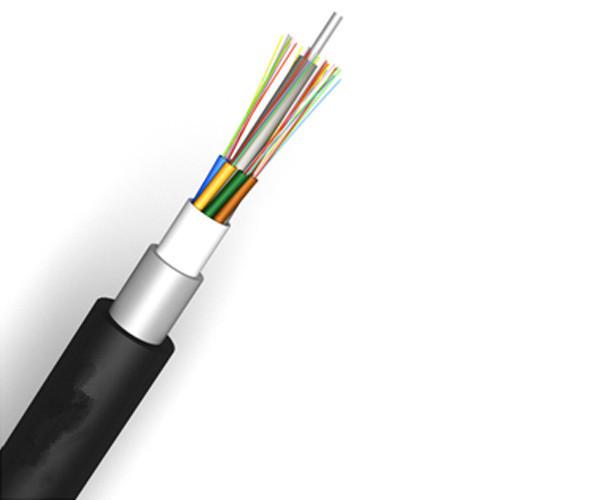

12 Strand Buried Armored Fiber Optic Cable Single Mode Fiberglass Reinforced Platic

1) Features

a: excellent mechanical and temperature performance

b:special tube filling compound ensure a critical protection of fiber and resist the water

c: single steel wire as the central strength member to withstand axial loads

d: aluminum tape longitudinal cover cable core as moisture barrier

2) Application

Long distance , LAN communication

3)Specification

fiber count configuration filler number out diameter mass minimum bend radius tensile strength crush resistance
dynamic static short term long term short term long term
tubesxfibres mm kg/km mm mm N N N/10CM N/10CM
6 1X6 4 8.9 70 20D 10D 1500 600 1000 300
12 2X6 3 8.9 70 20D 10D 1500 600 1000 300
24 4X6 1 8.9 70 20D 10D 1500 600 1000 300
36 3X12 3 9.7 80 20D 10D 1500 600 1000 300
48 4X12 1 9.7 80 20D 10D 1500 600 1000 300
60 5X12 0 9.7 80 20D 10D 1500 600 1000 300
72 6X12 0 10.2 100 20D 10D 1500 600 1000 300
96 8X12 0 11.4 120 20D 10D 1500 600 1000 300
144 12X12 0 14 170 20D 10D 1700 600 1000 300
192 8X24 0 13.3 160 20D 10D 1600 600 1000 300
288 12X24 0 16.5 240 20D 10D 2400 600 1000 300

12 Strand Buried Armored Fiber Optic Cable Single Mode Fiberglass Reinforced Platic
