Specifications
PoE ports :
8 (Port 1-8)
Packaging Details :
Packaging dimensions: 265*205*108mm, weight: 2.1kg, Carton dimensions: 490*440*270mm, 8 pcs/carton, weight: 18kg
Forwarding rate :
77.38Mpps
Weight :
1.8kg (net)
Supply Ability :
500000 pcs/month
Switching capacity :
176Gbps
Delivery Time :
2-8 work days
Power consumption :
Standby<15W, full load<120W
MOQ :
1
Operating temperature :
-40 to +80°C
Input voltage :
DC44-57V
Max PoE power :
30W per port
Port count :
16 (12x RJ45, 4x SFP+)
Brand Name :
ONV
Place of Origin :
China
Model Number :
ONV-IPS38168PFM
Certification :
CE, FCC, RoHS
Payment Terms :
T/T,Western Union
Dimensions :
166x150x75mm
Description

16-port 10G Uplink Managed Industrial PoE Switch

Product Overview

The ONV-IPS38168PFM is a 10G uplink managed industrial PoE switch independently developed by ONV. It features 12×10/100/1000Base-T adaptive RJ45 ports and 4×1/10G uplink SFP+ fiber ports. Ports 1-8 support the IEEE 802.3af/at PoE standard with single-port PoE power up to 30W.

As a PoE power supply device, it automatically detects and recognizes standard power-receiving devices and supplies power through network cables. It can power PoE terminal equipment such as wireless APs, IP cameras, VoIP systems, and industrial sensors. It meets network environments requiring high-density PoE power supply and is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, shipping, metallurgy, and green energy construction, forming a cost-effective, stable, and reliable communication network.

The ONV-IPS38168PFM includes L3 network management functions, supports IPv4/IPv6 management, dynamic routing, full-line speed forwarding, complete security protection mechanisms, comprehensive ACL/QoS strategies, and rich VLAN functions for easy management and maintenance. It features leading ring network technology, supports various industrial-grade redundant ring network protocols, and all ports can form rings. It supports chain, star, double star, ring, tangent ring, intersecting ring, and coupled ring topologies with a ring network recovery time under 20ms. It offers high reliability, security, and manageability to ensure reliable transmission of key data. It supports remote management and works with the ONV-NMS network management platform for cluster management to achieve full-process blind spot network management.

Technical Specifications

Model ONV-IPS38168PFM
Interface Characteristics Fixed Port: Power off alarm switch port (FAULT), 4×1/10G uplink SFP+ fiber ports (Data), 4×10/100/1000Base-T uplink RJ45 ports (Data), 8×10/100/1000Base-T PoE ports (Data/Power), 2 set V+, V- redundant DC power ports (6P industrial Phoenix terminal)

Ethernet Port: Port 1-12 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption

Twisted Pair Transmission: 10BASE-T: Cat3,4,5 UTP (≤100m), 100BASE-TX: Cat5 or later UTP (≤100m), 1000BASE-T: Cat5e or later UTP (≤100m)

Optical Fiber Port: 1/10G SFP+ optical fiber ports (optical module not included, optional single-mode/multi-mode, single fiber/dual fiber optical module, LC interface)

Optical Fiber Port Expansion: Turbo overclocking 2.5G optical module expansion and ring network

Optical Cable/Distance: Multi-mode: 850nm/0-550m, 0-300m(10G), Single-mode: 1310nm/0-40km, 1550nm/0-120km
Chip Parameters Network Management Type: L3
Switching Capacity: 176Gbps (non-blocking)
Forwarding Rate@64byte: 77.38Mpps
CPU: 500MHz
DRAM: 2G
FLASH: 128M
MAC: 32K
Buffer Memory: 32M
Jumbo Frame: 10K
LED Indicator: System: SYS (Green), PoE: PoE (Green), Network: Link (Yellow), Fiber Port: L/A (Green)
Reset Switch: Yes, press and hold for 10 seconds to restore factory settings
PoE & Power Supply PoE Port: Port 1-8
Max Power Per Port: 30W, IEEE802.3af/at
Power Consumption: Standby<15W, full load af<120W, at<240W
Input Voltage/Interface: DC44-57V, 6P industrial Phoenix terminal with anti-reverse protection
Power Supply: Not included, optional 48V/120W or 48V/240W industrial power supply
Physical Parameters Operation Temp/Humidity: -40~+80°C, 5%~90% RH non-condensing
Storage Temp/Humidity: -40~+85°C, 5%~95% RH non-condensing
Dimension (L×W×H): 166×150×75mm
Net/Gross Weight: 1.8kg/2.1kg
Installation: Desktop, 35mm DIN Rail
Certification & Warranty Certification: CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty: 5 years, lifelong maintenance

Product Image

16 Port 10G Uplink Managed Industrial PoE Switch IEEE802.3af/At Standard CE mark

Key Features

Gigabit Access with 1/10G SFP+ Fiber Uplink

  • Support for non-blocking wire-speed forwarding
  • Support for full-duplex based on IEEE802.3x and half-duplex based on Backpressure
  • Gigabit RJ45 port and uplink 1/10G SFP+ fiber port combination for flexible networking to meet various scenario needs

Smart PoE Power Supply

  • PoE network management for port power allocation, priority setting, port power status viewing, and time scheduling
  • Compliance with IEEE802.3af/at PoE standard, automatically identifying PoE devices for power supply without damaging non-PoE devices.
  • 8×10/100/1000Base-T RJ45 ports support PoE power, meeting PoE requirements for security monitoring, industrial automation systems, and wireless coverage

Security Features

  • Port isolation and storm control
  • IP+MAC+port+VLAN quadruple flexible combination binding function
  • 802.1X authentication for LAN computers with controlled port authorization based on authentication results

Strong Business Processing Capability

  • Support for industrial ERPS ring network and STP/RSTP/MSTP to eliminate layer 2 loops and enable link backup
  • Support for IEEE802.1Q VLAN with flexible VLAN division, Voice VLAN, and QinQ configuration
  • Support for static and dynamic aggregation to increase link bandwidth, enable load balancing and link backup, and improve link reliability
  • Support for QoS with port-based, 802.1P-based, and DSCP-based priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR
  • Support for ACL to filter data packets through matching rule processing operations and time permissions with flexible security access control policies
  • Support for IGMP V1/V2/V3 multicast protocol and IGMP Snooping for multi-terminal high-definition video surveillance and video conference access

Stable and Reliable Operation

  • CE, FCC, RoHS certifications
  • User-friendly panel with LED indicators for PWR, Link, and PoE status
  • Low power consumption with aluminum alloy housing and excellent heat dissipation for stable operation

Easy Operation & Maintenance Management

  • Support for CPU monitoring, memory monitoring, Ping detection, and cable length detection
  • HTTPS, SSLV3, SSHV1/V2 encryption for secure management
  • RMON, system log, and port traffic statistics for network optimization
  • LLDP for network management system query and link status judgment
  • Diverse management methods, including Web network management, CLI command line (Console, Telnet), and SNMP (V1/V2/V3)

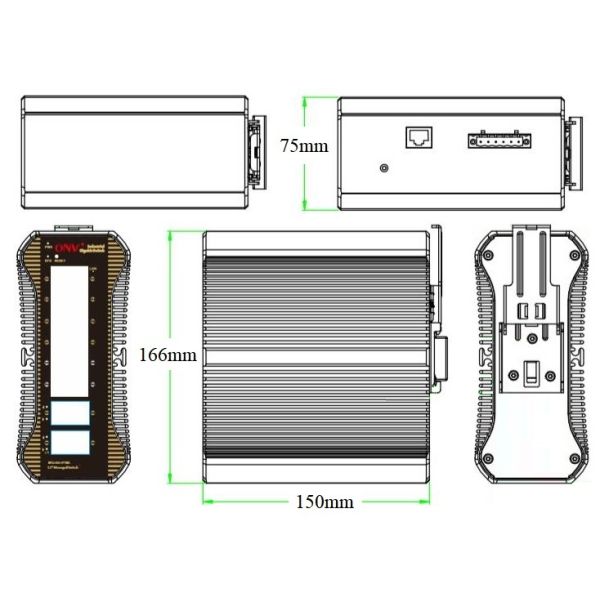

Dimension Diagram

16 Port 10G Uplink Managed Industrial PoE Switch IEEE802.3af/At Standard CE mark

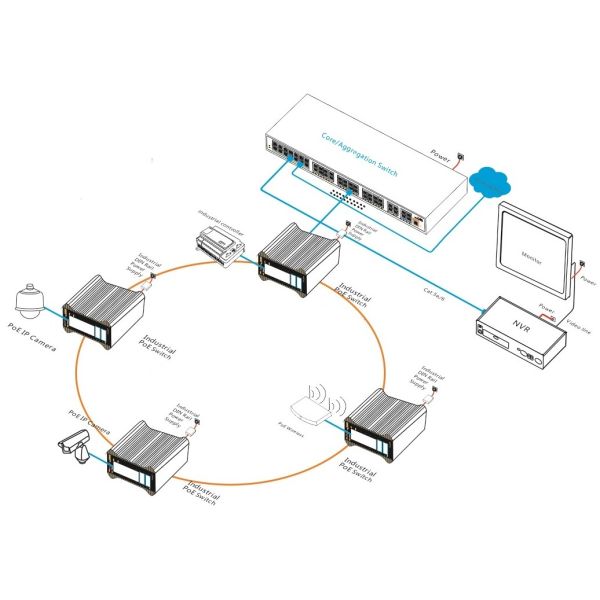

Application Diagram

16 Port 10G Uplink Managed Industrial PoE Switch IEEE802.3af/At Standard CE mark

Ordering Information

Model Description Recommended Power Supply
ONV-IPS38168PFM L3 managed industrial PoE switch with 4×1/10G uplink SFP+ fiber ports and 12×10/100/1000M RJ45 ports. Port 1-8 supports the IEEE802.3af/at PoE standard. Supports dual DC redundant power input and DIN rail mounting. 120W/240W

Note: The optical module and power supply are not included and need to be purchased separately.

Packing List

Packing List Qty Unit
16-port 10G uplink managed industrial PoE switch 1 Set
RJ45-DB9 Adapter Cable 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC

Optical Module Options

Product Model Description Unit
1.25G Optical Module 2630-G Industrial SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, supports DDM function and hot plugging. PC
2632-G Industrial SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. PC
2612-T-G Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. PC
2613-R-G Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. PC
2612-T-SC-G Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, SC interface, supports DDM function and hot plugging. PC
2613-R-SC-G Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, SC interface, supports DDM function and hot plugging. PC
10G Optical Module 6630-G Industrial SFP+ optical module, 10G multi-mode dual fiber 850nm, transmission distance: 300m, LC interface, supports DDM function and hot plugging. PC
7832-G Industrial SFP+ optical module, 10G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. PC
7832-33-G Industrial SFP+ optical module, 10G single-mode single fiber TX1330nm/RX1270nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. PC
7832-27-G Industrial SFP+ optical module, 10G single-mode single fiber TX1270nm/RX1330nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging PC

Power Supply Options

Product Model Description Unit
120W DIN Rail Industrial Power Supply GWS-DP120-48 DIN Rail 120W single set output power supply. Input Voltage: AC100V~240V 50-60Hz, 2.3A. Output Voltage: DC48V, 2.5A. Operation Temperature: -40℃ to +70℃ PC
240W DIN Rail Industrial Power Supply GWS-DP240-48 DIN Rail 240W single set output power supply. Input Voltage: AC100V~240V 50-60Hz, 3.0A. Output Voltage: DC48V, 5.0A. Operation Temperature: -40℃ to +70℃ PC

Related Products

Model Description
ONV-IPS33108PFM L2+ managed industrial PoE switch with 10×10/100/1000M RJ45 ports and 2×100/1000M uplink SFP fiber ports. Port 1-8 supports the IEEE802.3af/at PoE standard. Supports dual DC redundant power input and DIN rail mounting.
ONV-IPS33148PFM L2+ managed industrial PoE switch with 10×10/100/1000M RJ45 ports and 4×100/1000M uplink SFP fiber ports. Port 1-8 supports the IEEE802.3af/at PoE standard. Supports dual DC redundant power input and DIN rail mounting.
ONV-IPS33168PFM L2+ managed industrial PoE switch with 8×10/100/1000M RJ45 ports and 8×100/1000M uplink SFP fiber ports. Port 1-8 supports the IEEE802.3af/at PoE standard. Supports dual DC redundant power input and DIN rail mounting.
ONV-IPS33168PFM-4GF L2+ managed industrial PoE switch with 12×10/100/1000M RJ45 ports and 4×100/1000M uplink SFP fiber ports. Port 1-8 supports the IEEE802.3af/at PoE standard. Supports dual DC redundant power input and DIN rail mounting.
ONV-IPS36168PFM L2+ managed industrial PoE switch with 12×10/100/1000M RJ45 ports and 4×1/10G uplink SFP+ fiber ports. Port 1-8 supports the IEEE802.3af/at PoE standard. Supports dual DC redundant power input and DIN rail mounting.
ONV-IPS36248PFM L2+ managed industrial PoE switch with 12×10/100/1000M RJ45 ports and 8×100/1000M uplink SFP fiber ports and 4×1/10G uplink SFP+ fiber ports. Port 1-8 supports the IEEE802.3af/at PoE standard. Supports dual DC power supply input and DIN rail mounting.
