Gigabit Dual Port Poe Injector IEEE 802.3af 802.3at Compliance For Network Devices
Gigabit Dual Port Poe Injector IEEE 802.3af 802.3at Compliance For Network Devices
Gigabit Dual Port Poe Injector IEEE 802.3af 802.3at Compliance For Network Devices
Gigabit Dual Port Poe Injector IEEE 802.3af 802.3at Compliance For Network Devices
Gigabit Dual Port Poe Injector IEEE 802.3af 802.3at Compliance For Network Devices
Gigabit Dual Port Poe Injector IEEE 802.3af 802.3at Compliance For Network Devices
Specifications
Model Number :
ONV-PSE3301DC
Port type :
10/100/1000M RJ45
Payment Terms :
T/T,Western Union
Power consumption :
Standby<3W, full load<30W
Delivery Time :
2-8 work days
Operation humidity :
5%~90% RH non-condensing
Certification :
CE, FCC, RoHS
PoE standard :
IEEE 802.3af/at
Supply Ability :
500000 pcs/month
Operation temperature :
-20°C~+55°C
MOQ :
1
Packaging Details :
Packaging dimensions: 250*205*45mm, weight: 0.3kg, Carton dimensions: 490*440*270mm, 20 pcs/carton, weight: 7kg
Input voltage :
12-32VDC
Dimensions :
77.5*76.5*27mm
Net weight :
0.15kg
Brand Name :
ONV
Port count :
2
Place of Origin :
China
Max power per port :
30W
Description

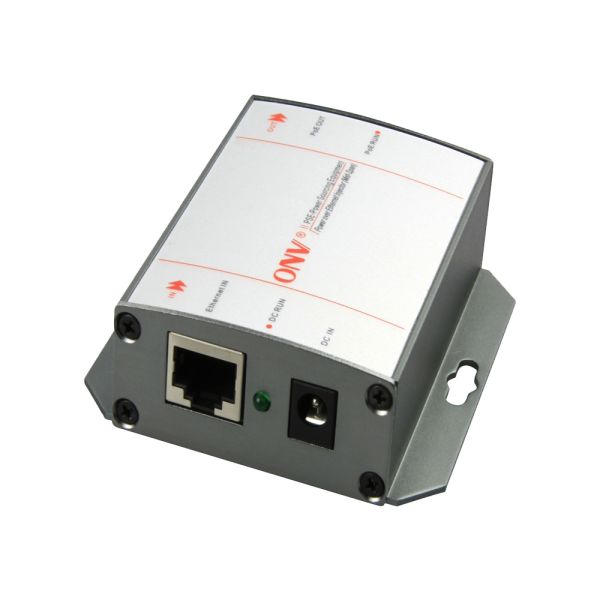

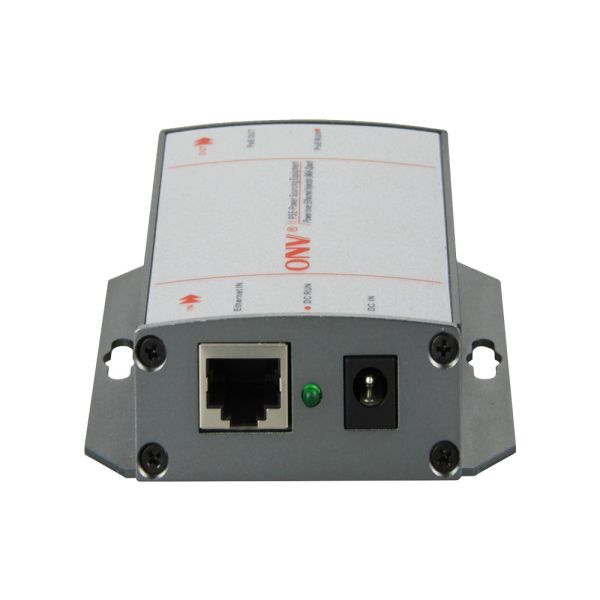

2-port Gigabit PoE Injector
Overview

The ONV-PSE3301DC is a Gigabit PoE injector independently developed by ONV. It features 2×10/100/1000M RJ45 ports, with Port 1 supporting IEEE 802.3af/at PoE standards and delivering up to 30W per port. As a PoE power supply device, it automatically detects and powers compatible equipment over network cables, making it ideal for wireless APs, IP cameras, VoIP systems, and visual intelligent building intercoms. Suitable for hotels, campuses, factory dormitories, and small-to-medium enterprises, it offers plug-and-play operation with no configuration required.

Technical Specifications
Model ONV-PSE3301DC ONV-PSE3301DC-at
Interface Characteristics
Fixed Port 1×10/100/1000M PoE port (Data/Power)
1×10/100/1000M uplink RJ45 port (Data)
Ethernet Port 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100m)
100BASE-TX: Cat5 or later UTP (≤100m)
1000BASE-T: Cat5e or later UTP (≤100m)
Network Protocol & Indicator
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
LED Indicator Power: PWR (Green), POE: PoE (Green)
PoE & Power Supply
PoE Port Port 1 IEEE 802.3af/at
Power Supply Pin 1/2(+), 3/6(-)
Max Power Per Port 15W, IEEE 802.3af 30W, IEEE 802.3at
Total PWR/Input Voltage 18W/12-32VDC 35W/12-32VDC
<24V max output 15W, ≥24V max output 30W
Power Consumption Standby <3W, full load <15W Standby <3W, full load <30W
Power Supply External power supply, DC input voltage: 24V
Physical Parameter
Operation TEMP/Humidity -20°C to +55°C, 5% to 90% RH non-condensing
Storage TEMP/Humidity -40°C to +80°C, 5% to 95% RH non-condensing
Dimension (L×W×H) 77.5×76.5×27mm
Net/Gross Weight 0.15kg / 0.3kg 0.15kg / 0.4kg
Installation Desktop, Wall-mounted
Certification & Warranty
Lightning Protection 4KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 3 years, lifelong maintenance
Key Features
Gigabit Access (1 Input and 1 Output)
  • Supports non-blocking wire-speed forwarding
  • Uses 1 Ethernet in and 1 Ethernet out connection mode with 1×10/100/1000Mbps RJ45 port for convenient connection and simple maintenance
Smart PoE Power Supply
  • IEEE 802.3af/at PoE standard, safe for non-PoE devices
  • 1×10/100/1000Base-T RJ45 port supports PoE power, ideal for security monitoring, teleconferencing systems, wireless coverage, and other scenarios
Stable and Reliable
  • CE, FCC, RoHS certified
  • Supports desktop and wall-mounted installation
  • Plug and play operation with no configuration required
  • User-friendly panel with LED indicators for PWR and PoE status
  • Self-developed power supply with high redundancy design for long-term stable PoE power output
  • Low power consumption with active fan cooling and metal casing for stable operation

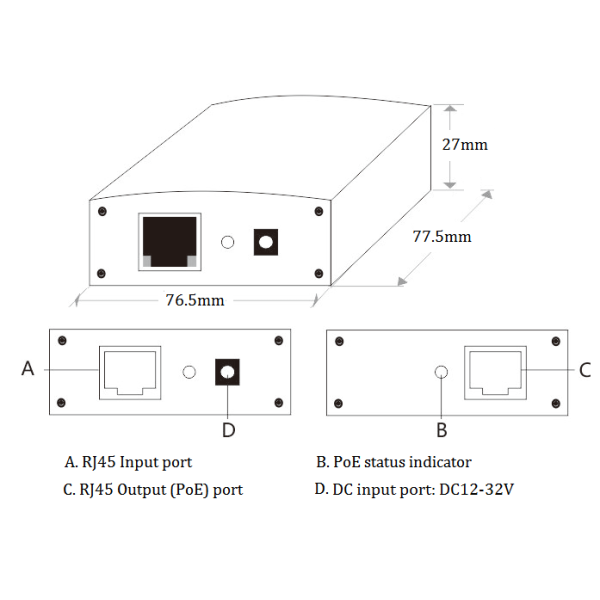

Dimensions
Gigabit Dual Port Poe Injector IEEE 802.3af 802.3at Compliance For Network Devices
Application
Gigabit Dual Port Poe Injector IEEE 802.3af 802.3at Compliance For Network Devices
Ordering Information
Model Description External Power Adapter
ONV-PSE3301DC Gigabit PoE injector supports IEEE 802.3af/at PoE standard and PoE output. Supports desktop and wall-mounted installation. 18W
ONV-PSE3301DC-at Gigabit PoE injector supports IEEE 802.3af/at PoE standard and PoE output. Supports desktop and wall-mounted installation. 35W
Packing List
Packing List Qty Unit
2-port Gigabit PoE injector 1 PC
Power Adapter 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
