Single Port Gigabit BT PoE Injector With 60W Power IEEE 802.3bt Compatibility
Single Port Gigabit BT PoE Injector With 60W Power IEEE 802.3bt Compatibility
Single Port Gigabit BT PoE Injector With 60W Power IEEE 802.3bt Compatibility
Single Port Gigabit BT PoE Injector With 60W Power IEEE 802.3bt Compatibility
Single Port Gigabit BT PoE Injector With 60W Power IEEE 802.3bt Compatibility
Single Port Gigabit BT PoE Injector With 60W Power IEEE 802.3bt Compatibility
Specifications
Model Number :
ONV-PSE3401G
Place of Origin :
China
Ethernet Port :
10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
Delivery Time :
2-8 work days
Power Consumption :
Standby<3W, full load<60W
Storage TEMP/Humidity :
-40°C~+80°C, 5%~95% RH non-condensing
MOQ :
1
Twisted Pair Transmission :
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Packaging Details :
Packaging dimensions: 250*205*45mm, weight: 0.4kg, Carton dimensions: 490*440*270mm, 20 pcs/carton, weight: 9kg
Operation TEMP/Humidity :
-20°C~+55°C, 5%~90% RH non-condensing
Supply Ability :
500000 pcs/month
Total PWR/Input Voltage :
65W/52VDC
Dimension :
77.5*76.5*27mm
Net Weight :
0.15kg
Brand Name :
ONV
Certification :
CE, FCC, RoHS
Fixed Port :
1*10/100/1000M uplink RJ45 port (Data) 1*10/100/1000M bt PoE port (Data/Power)
Payment Terms :
T/T,Western Union
Max Power Per Port :
60W, IEEE 802.3 af/at/bt
Description
Single-port Gigabit BT PoE Injector

The ONV-PSE3401G is a BT PoE injector independently developed by ONV, featuring 1×10/100/1000M RJ45 port that supports IEEE 802.3bt and is backward compatible with IEEE 802.3af/at PoE standards.

Overview

This single-port injector delivers up to 60W of PoE power and automatically detects and identifies compliant powered devices, supplying power via Ethernet cable. It powers wireless APs, network cameras, VoIP phones, video intercoms, and other PoE terminal devices, meeting high-density PoE power requirements. Ideal for hotels, campuses, industrial parks, tourist attractions, shopping malls, factory dormitories, and small-to-medium enterprises. Plug-and-play operation requires no configuration.

Technical Specifications
Model ONV-PSE3401G
Interface Characteristics
Fixed Port 1×10/100/1000M uplink RJ45 port (Data)
1×10/100/1000M bt PoE port (Data/Power)
Ethernet Port 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
Network Protocol & Indicator
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3u 1000Base-T, IEEE802.3x
LED Indicator Power: PWR (Green), PoE: PoE (Green)
PoE & Power Supply
PoE Port Support BT PoE and backward compatible with IEEE802.3af/at
Power Supply Pin 1/2(+)3/6(-) & 4/5(+)7/8(-)
Max Power Per Port 60W, IEEE 802.3 af/at/bt
Total PWR/Input Voltage 65W/52VDC
Power Consumption Standby<3W, full load<60W
Power Supply External 65W/52V power adapter
Physical Parameter
Operation TEMP/Humidity -20°C~+55°C, 5%~90% RH non-condensing
Storage TEMP/Humidity -40°C~+80°C, 5%~95% RH non-condensing
Dimension (L×W×H) 77.5×76.5×27mm
Net/Gross Weight 0.15kg / 0.4kg
Installation Desktop, Wall-mounted
Certification & Warranty
Lightning Protection 4KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 3 years, lifelong maintenance
Key Features
  • 1 in 1 out Ethernet port arrangement - Supports non-blocking wire-speed forwarding with convenient connection and simple maintenance
  • Smart PoE power supply - 1×10/100/1000Base-T RJ45 port supports BT PoE with max output power of 60W per port, backward compatible with IEEE 802.3af/at standards
  • Stable and reliable - CE, FCC, RoHS certified; supports desktop and wall-mounted installation; plug-and-play operation; self-developed power supply with high redundancy design; user-friendly LED indicators; low power consumption with silent fan and metal casing

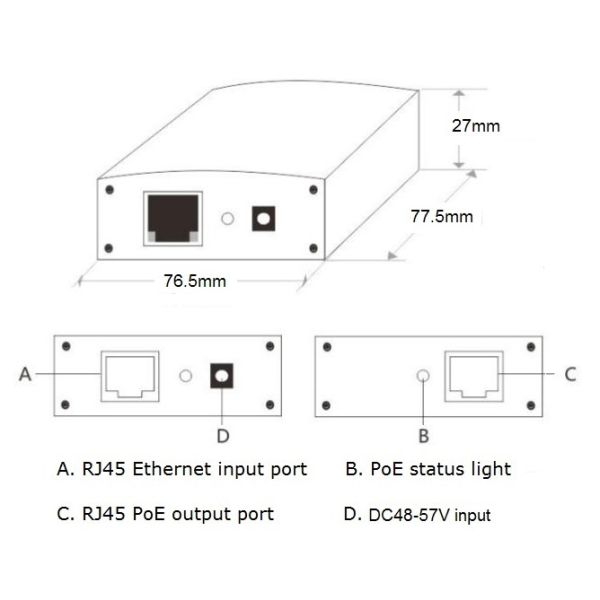

Dimensions
Single Port Gigabit BT PoE Injector With 60W Power IEEE 802.3bt Compatibility

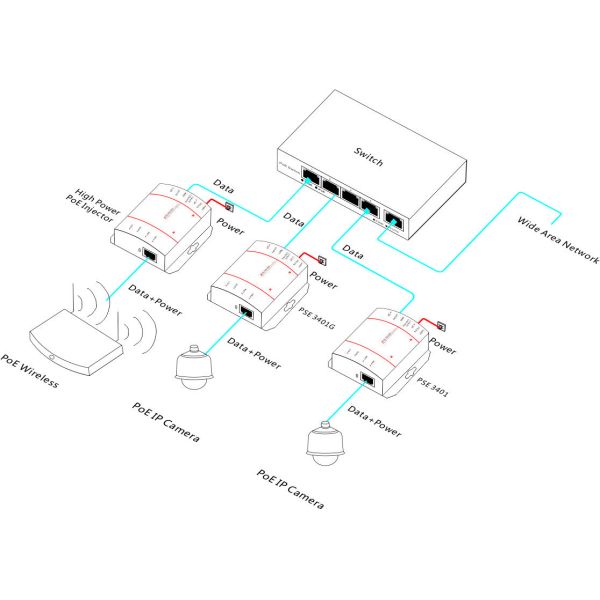

Application
Single Port Gigabit BT PoE Injector With 60W Power IEEE 802.3bt Compatibility
Ordering Information
Model Description Power Adapter
ONV-PSE3401G Single-port gigabit BT PoE injector supporting BT PoE and backward compatible with IEEE 802.3af/at standards. Single-port PoE power: 60W; max PoE output power: 65W 65W
Packing List
Packing List Qty Unit
Single-port gigabit BT PoE injector 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
Related Products
Model Description
ONV-PSE3501G Single-port gigabit BT PoE injector supporting bt PoE and backward compatible with IEEE 802.3af/at standards. Single-port PoE power: 90W; max PoE output power: 95W
