Specifications
PoE Standard :
IEEE 802.3bt, backward compatible with IEEE 802.3af/at
Operating Temperature :
-20°C ~ +55°C
Ethernet Protocol :
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3u 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Operating Humidity :
5% ~ 90% RH non-condensing
Model Number :
ONV-PSE3501G
MOQ :
1
Power Consumption :
Standby <5W, full load <110W
Dimensions :
77.5*76.5*27mm
Net Weight :
0.15kg
Packaging Details :
Packaging dimensions: 250*205*45mm, weight: 0.4kg, Carton dimensions: 490*440*270mm, 20 pcs/carton, weight: 9kg
Payment Terms :
T/T,Western Union
Certification :
CE, FCC, RoHS
Delivery Time :
2-7 work days
Max Power Output :
90W per port
Supply Ability :
500000 pcs/month
Input Voltage :
DC48-57V
Port Type :
1*10/100/1000M BT PoE port, 1*10/100/1000M RJ45 port
Brand Name :
ONV
Place of Origin :
China
Description
Single Port Gigabit BT PoE Injector

The ONV-PSE3501G is a BT PoE injector independently developed by ONV. It features 1×10/100/1000M BT PoE port and 1×10/100/1000M auto-sensing uplink RJ45 port. Supporting IEEE 802.3bt and backward compatible with IEEE 802.3af/at PoE standards, this single-port PoE injector delivers up to 90W power output. As a PoE power supply device, it automatically detects and identifies compliant powered devices, supplying power via network cable to high-power wireless APs, PoE network PTZ cameras, PoE speakers, PoE lighting, and other high-power PoE terminal devices. Ideal for hotels, campuses, industrial parks, tourist attractions, shopping malls, factory dormitories, and small-to-medium enterprises building cost-effective networks.

Technical Specifications
Model ONV-PSE3501G
Interface Characteristics
Fixed Port 1×DC5521 power connector, 1×10/100/1000M uplink RJ45 port (Data), 1×10/100/1000M BT PoE port (Data/Power)
Ethernet Port 10/100/1000BaseT(X) auto-detection, full/half duplex MDI/MDI-X adaptive
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100m), 100BASE-TX: Cat5 or later UTP (≤100m), 1000BASE-T: Cat5e or later UTP (≤100m)
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3u 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
LED Indicator Power: PWR (Green), PoE: PoE (Green)
PoE & Power Supply
PoE Port Port 1 supports BT PoE and backward compatible with IEEE802.3af/at
Power Supply Pin 1/2(+)3/6(-) 4/5 (+) 7/8 (-)
Max Power Per Port 90W, IEEE802.3af/at/bt
Total PWR/ Input Voltage 110W/52VDC
Power Consumption Standby <5W, full load <110W
Power Supply External power supply, DC input voltage: DC48-57V
Physical Parameters
Operation TEMP/ Humidity -20°C to +55°C, 5% to 90% RH non-condensing
Storage TEMP/ Humidity -40°C to +80°C, 5% to 95% RH non-condensing
Dimension (L×W×H) 77.5×76.5×27mm
Net /Gross Weight 0.15kg/0.4kg
Installation Desktop, Wall mounted
Certification & Warranty
Lightning Protection 4KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 3 years, lifelong maintenance
Key Features
  • Simple 1-in, 1-out network port arrangement – Easy connection with non-blocking wire-speed forwarding and convenient maintenance
  • Smart PoE power supply – 1×10/100/1000Base-T RJ45 port supports BT PoE with maximum 90W output, backward compatible with IEEE 802.3af/at standards, automatically recognizes PoE devices without damaging non-PoE equipment
  • Stable and reliable operation – CE, FCC, RoHS certified; desktop and wall-mounted installation; plug-and-play with no configuration required; self-developed power supply with high-redundancy design for long-term stable output; user-friendly LED indicators (PWR and PoE); low power consumption with silent fan and active heat dissipation; metal casing ensures stable operation
Dimensions
90w Single Port Gigabit PoE Injector Desktop Or Wall Mounted For PTZ Cameras

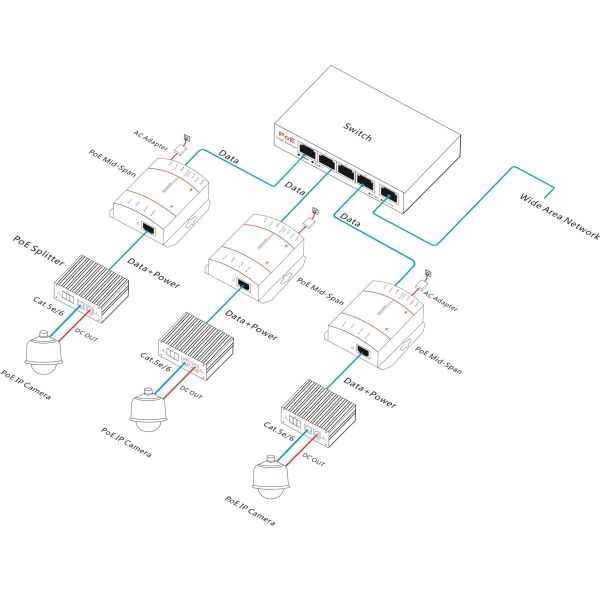

Application
90w Single Port Gigabit PoE Injector Desktop Or Wall Mounted For PTZ Cameras
Ordering Information
Model Description External Power Supply
ONV-PSE3501G BT PoE injector with 1×10/100/1000M BT PoE port and 1×10/100/1000M RJ45 port. Complies with IEEE 802.3af/at/bt PoE standard, single port maximum PoE power output 90W. External power supply. 110W
Packing List
Packing List Qty Unit
Single port Gigabit BT PoE injector 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
Related Products
Model Description
ONV-PSE3401G BT PoE injector with 1×10/100/1000M BT PoE port and 1×10/100/1000M RJ45 port. Complies with IEEE 802.3af/at/bt PoE standard, single port maximum PoE power output 60W. External 65W power supply.
