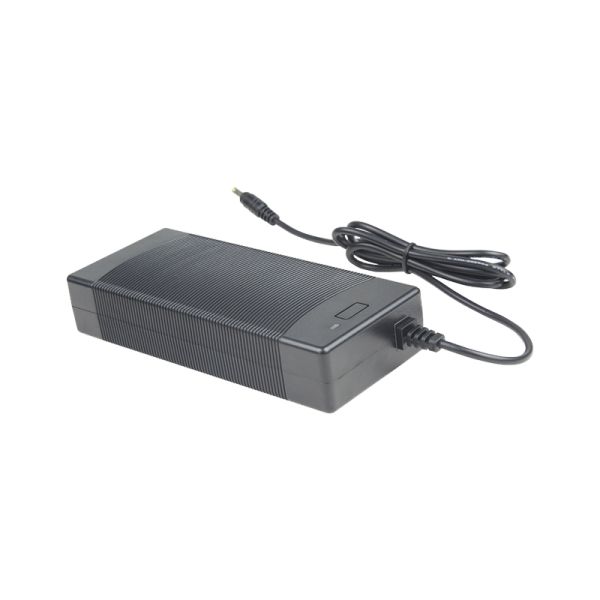

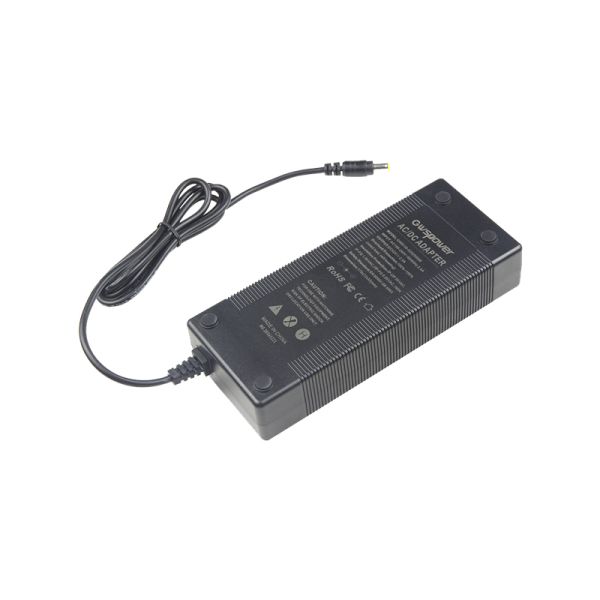

130W 52V No Fan Desktop Power Adapter AC To DC Adapter With Over Voltage Protection
130W 52V No Fan Desktop Power Adapter AC To DC Adapter With Over Voltage Protection
130W 52V No Fan Desktop Power Adapter AC To DC Adapter With Over Voltage Protection
130W 52V No Fan Desktop Power Adapter AC To DC Adapter With Over Voltage Protection
130W 52V No Fan Desktop Power Adapter AC To DC Adapter With Over Voltage Protection
130W 52V No Fan Desktop Power Adapter AC To DC Adapter With Over Voltage Protection
130W 52V No Fan Desktop Power Adapter AC To DC Adapter With Over Voltage Protection
130W 52V No Fan Desktop Power Adapter AC To DC Adapter With Over Voltage Protection
Specifications
Brand Name :
GWSpower
Power :
130W
Certification :
CE, FCC, RoHS
Supply Ability :
500000pcs/month
Delivery Time :
2-8 work days
MOQ :
1
Output voltage :
52V
MTBF :
100,000Hrs at 25℃
Output current :
2.5A
Payment Terms :
T/T,Western Union
Frequency range :
47Hz~63Hz
Place of Origin :
China
Input voltage range :
90VAC~264VAC
Model Number :
GWS-AP130-52
Description

130W/52V Desktop Power Adapter

Product Features

  • 2-year warranty
  • 100% full-load aging test
  • Power Input: AC90~264V
  • No fan, completely tranquil operation
  • Operating temperature: -20℃~65℃
  • High efficiency, long lifetime and high reliability
  • Support protection for short circuit/over current/over voltage

Technical Specifications

Model GWS-AP130-52
Output
Group of Output 1
DC Voltage 52VDC
Default Output Voltage 0-2.5A
Ripple Noise: 0<Ta≤55℃ ≤50mVp-p
Ripple Noise: -15≤Ta≤0℃ ≤100mVp-p
Stabilized Voltage Precision ±1%
Line Regulation ±1%
Load Regulation ±1%
Temperature Coefficient ±0.03%/℃
Output Start Time ≤3.0S (120Vac input, Full load), ≤2.0S (220Vac input, full load)
Output Hold Time ≥10mS (120Vac input, Full load), ≥20mS (220Vac input, full load)
Voltage Overshoot <5.0%
Input
Input Voltage Range 90VAC~264VAC
Input Rated Voltage Range 100VAC~240VAC
Frequency Range 47Hz~63Hz
Efficiency 91%
Input Current <1.1A
Inrush Starting Current <40A@300Vac cold start
Leakage Current Input to output≤ 0.25mA
Output Protection
Over Power 156W-195W swing machine
Over Voltage 59-60V swing machine
Over Current 3-3.75A swing machine
Short Circuit It can be short-circuited for a long time and automatically recover after the short circuit is eliminated
Operation Environment
Operation TEMP/Humidity -20℃~65℃, 20%~90%RH
Storage TEMP/Humidity -40℃~85℃, 5%~95%RH Non-condensing
Safety and EMC Standard
Security Standard EN62368-1
Dielectric Strength Input-output: 3KVac/10mA, Input-Earth: 1.5 KVac/10mA, Output-Earth: 0.5 KVDC/10mA, Test time is 1min
Insulation Resistance Input-Output: 100M ohms, Input-Case: 100M ohms, Output-Case: 100M ohms
Electromagnetic Interference EN55022 Class A
Harmonic Current IEC61000-3-2 class A equipment requirements
EMI EN61000-4-2,4,5,6,8,11 ENV50204
Others
MTBF 100,000 Hrs at 25℃, MIL-217 method 2 components stress method
Dimension 172*72*34mm
Notes: If the specification is not specified, all specifications and parameters shall be measured at rated input, rated load, and 25℃ ambient temperature. Ripple noise test method: the use of a 12# twisted pair, with the terminal to parallel capacitance of 0.1uF and 10uF, measured at the scope of the oscilloscope 20MHz bandwidth. The power supply will be installed on the final equipment as a component, and the final equipment will still have to meet the EMC conditions.

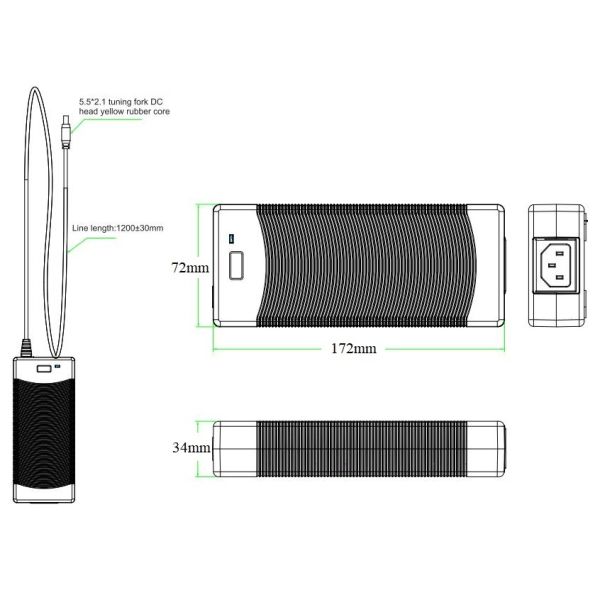

Dimensions
