Mikrotik 5GHZ Outdoor Wireless Surveillance System RBSXTG-5HPacD-HGr2
Mikrotik 5GHZ Outdoor Wireless Surveillance System RBSXTG-5HPacD-HGr2
Mikrotik 5GHZ Outdoor Wireless Surveillance System RBSXTG-5HPacD-HGr2
Mikrotik 5GHZ Outdoor Wireless Surveillance System RBSXTG-5HPacD-HGr2
Specifications
Brand Name :
UBNT
Model Number :
RBSXTG-5HPacD-HGr2
Certification :
FCC,CCC,CE
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
CPU nominal frequency :
720 MHz
CPU core count :
128 MB
Dimensions :
140x140x105mm
Max. Power Consumption :
12W
Storage size :
128MB
PoE in :
802.3at
Warranty :
1 Year
Description

Mikrotik 5GHZ Outdoor Wireless Surveillance System RBSXTG-5HPacD-HGr2

Overviews

The new High Gain version of the popular SXT G 802.11a/n/ac model, is equipped with an improved 5GHz 17dBi 24 degree antenna, Gigabit Ethernet port and RouterOS L4 license.

Like all of our SXT units, this is a clean, compact outdoor device that comes with all the necessary accessories included. Use it as a wireless AP, point-by-point, or as a CPE unit. 802.11ac technology provides data rates of up to 866Mbit, but also supports 802.11a/n.
The SXT HG supports 10-57V 802.3af/at and passive PoE power input.
* RBSXTG-5HPacD-HG (International) supports a range of 5150MHz-5875MHz (the specific frequency range may be limited by the country's regulations).

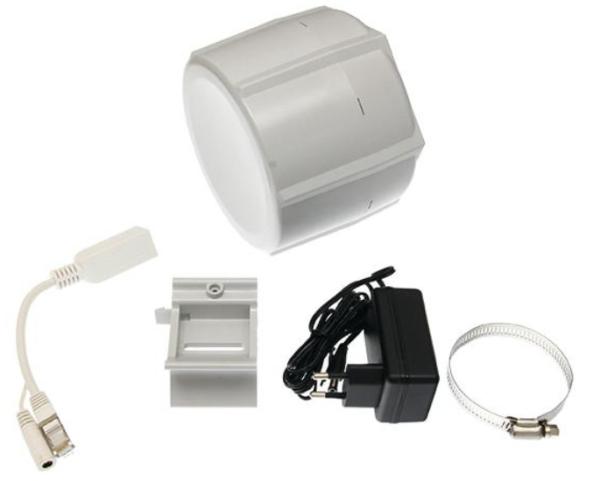

Includes:

* Gigabit PoE injector

* 24V 0.8A power adapter

* Metal ring (one)

* Pole mounting bracket

Specifications

CPU nominal frequency 720 MHz
CPU core count 1
Size of RAM 128 MB
Dimensions 140x140x105mm. Weight without packaging, adapters and cables: 265g
10/100 Ethernet ports None
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 0
Wireless chip model QCA9882-BR4A-R
Wireless standards 802.11a/n/ac
Number of USB ports 1
Power Jack 0
Supported input voltage 10 V - 57 V
PoE out No
PoE in 802.3at
Voltage Monitor Yes
CPU temperature monitor No
PCB temperature monitor Yes
License level 4
Antenna gain dBi 17
Current Monitor No
CPU QCA9557-AT4A-R
Max Power consumption 12W
SFP ports 0
SFP+ ports 0
USB slot type USB type A
Number of chains 2
Serial port None
Storage size 128MB
Storage type NAND

Wireless specifications

5 GHz
TX RX
6MBit/s 31 -96
54MBit/s 28 -81
MCS0 30 -96
MCS7 27 -77
MCS9 22 -72

wireless parameters may be limited in software, depending on your local regulatory limitations

Performance test results

RBSXTG-5HPacD-HGr2 QCA9557 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.2 986.1 234.9 962.2 477.7 224.6
Bridging 25 bridge filter rules 81.2 986.1 118.4 485.0 119.5 61.2
Routing none (fast path) 81.2 986.1 234.9 962.2 408.2 209.0
Routing 25 simple queues 81.2 986.1 158.3 648.4 165.8 84.9
Routing 25 ip filter rules 64.8 786.9 70.4 288.4 60.9 31.2

* All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)

* Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes

* Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out

* Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

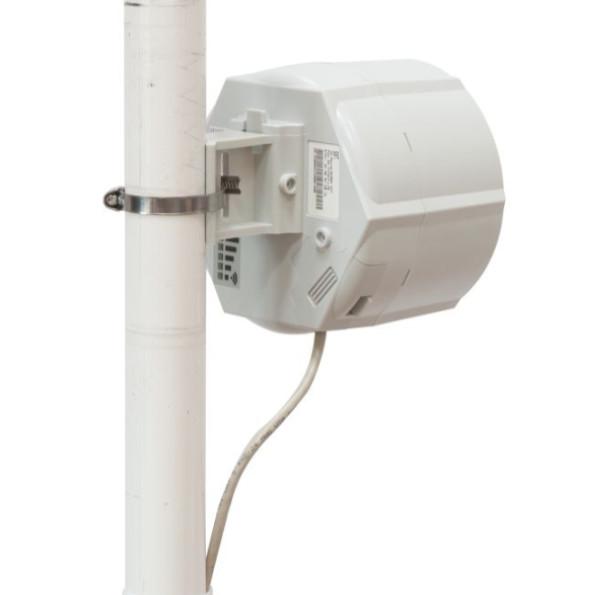

Mikrotik 5GHZ Outdoor Wireless Surveillance System RBSXTG-5HPacD-HGr2Mikrotik 5GHZ Outdoor Wireless Surveillance System RBSXTG-5HPacD-HGr2
