802.11a/n RBLHG-5HPnD-XL CPE LHG XL HP5 AP Wireless Device
802.11a/n RBLHG-5HPnD-XL CPE LHG XL HP5 AP Wireless Device
802.11a/n RBLHG-5HPnD-XL CPE LHG XL HP5 AP Wireless Device
802.11a/n RBLHG-5HPnD-XL CPE LHG XL HP5 AP Wireless Device
Specifications
Place of Origin :
Guangdong, China
Brand Name :
MikroTik
Model Number :
RBLHG-5HPnD-XL
MOQ :
Negotiable
Price :
Negotiable
Type :
Optical Fibers
Use :
Outdoor
Application :
Outdoor
CPU nominal frequency :
600 MHz
License level :
3
Wireless standards :
802.11a/n
10/100 Ethernet ports :
1
CPU :
AR9344
Size of RAM :
64M
Max data rate :
300 Mbit/s
Condition :
Original new
Selling Units :
Single item
Single package size  :
57X5X32 cm
Single gross weight :
3.000 kg
Package Type :
new in the box.
Description

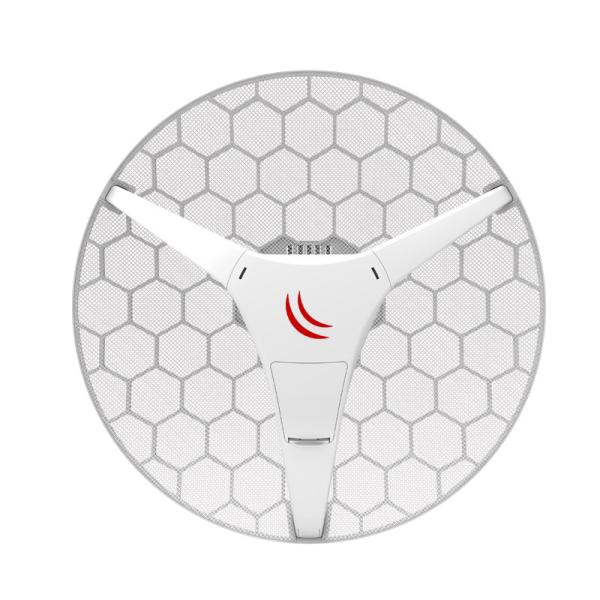

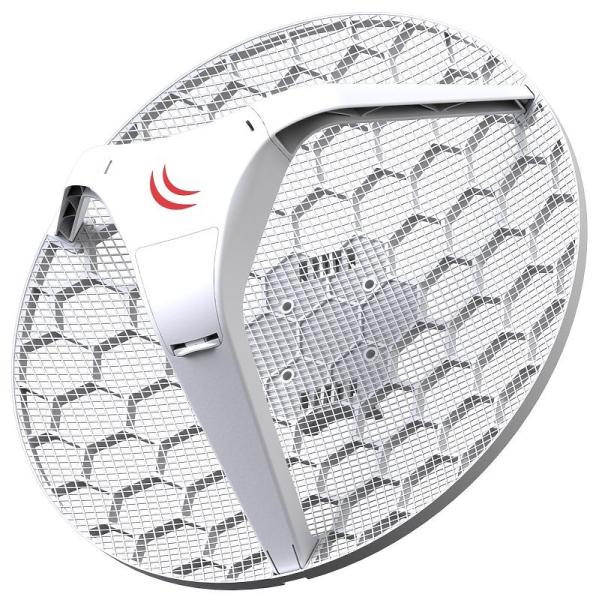

MikroTik Outdoor Wireless System

LHG XL HP5/RBLHG-5HPnD-XL

The LHG XL HP5 is a 5GHz 802.11 a/n wireless device with an integrated dual polarization 27 dBi grid antenna and high TX output power, designed to reach up to 40km in point-to-point setups at full speed.

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

We have two versions available.

LHG XL HP5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

LHG XL HP5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

802.11a/n RBLHG-5HPnD-XL CPE LHG XL HP5 AP Wireless Device

Specification

Details
Product code RBLHG-5HPnD-XL
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions Ø 550 x 245 mm;
License level 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C

Powering

Details
PoE in Passive PoE
PoE in input Voltage 10-28 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 7 W

Wireless

Details
Antenna gain dBi for 5 GHz 27
Wireless 5 GHz standards 802.11a/n
Wi-Fi generation 4
Wireless 5 GHz Max data rate 300 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz chip model AR9344

Ethernet

Details
10/100 Ethernet ports 1

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 28 -96
54MBit/s 25 -80
MCS0 28 -96
MCS7 24 -75

802.11a/n RBLHG-5HPnD-XL CPE LHG XL HP5 AP Wireless Device802.11a/n RBLHG-5HPnD-XL CPE LHG XL HP5 AP Wireless Device
