RBLHGG-5acD Outdoor Wireless Surveillance System
RBLHGG-5acD Outdoor Wireless Surveillance System
RBLHGG-5acD Outdoor Wireless Surveillance System
RBLHGG-5acD Outdoor Wireless Surveillance System
Specifications
Place of Origin :
Guangdong, China
Brand Name :
MikroTik
Model Number :
RBLHGG-5acD
MOQ :
Negotiable
Price :
Negotiable
Type :
Optical Fibers
Product name :
RBLHGG-5acD
CPU :
IPQ-4018
Max data rate :
867 Mbit/s
CPU nominal frequency :
716 MHz
Application :
Outdoor
Size of RAM :
256M
Wireless 5 GHz standards :
802.11a/n/ac
Selling Units :
Single item
Single package size  :
57X5X32 cm
Single gross weight :
3.000 kg
Package Type :
new in the box.
Description

Wireless System LHG 5 AC Outdoor AP RBLHGG-5acD Support 5GHz 802.11ac And 10/100/1000 Ehthernet Port

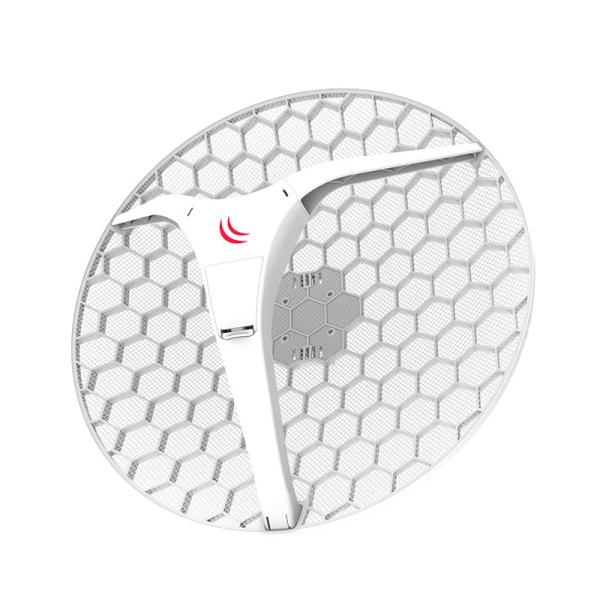

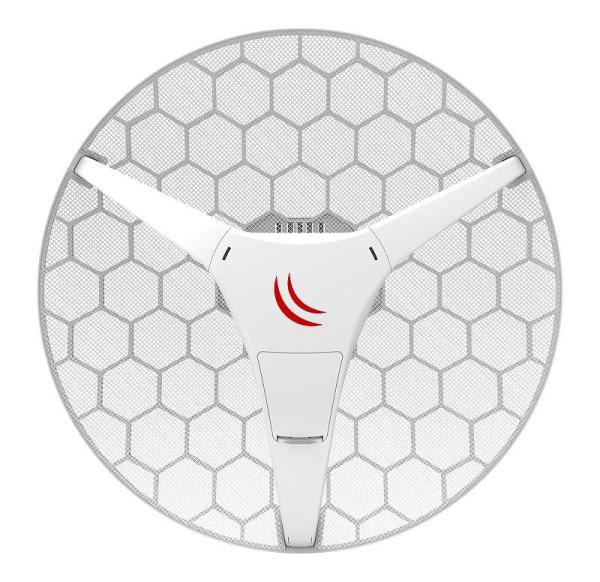

The LHG 5 ac is a compact and light 5GHz 802.11ac wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.

The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.

- LHG 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- LHG 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

RBLHGG-5acD Outdoor Wireless Surveillance System

Specification

Details
Product code RBLHGG-5acD
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions Ø 391 x 222 mm
License level 3
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C

Powering

Details
PoE in Passive PoE
PoE in input Voltage 10-30 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 8 W

RBLHGG-5acD Outdoor Wireless Surveillance System

Wireless

Details
AC speed AC1200
Antenna gain dBi for 5 GHz 24.5
Wireless 5 GHz standards 802.11a/n/ac
Wi-Fi generation 5
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz chip model IPQ-4018

Ethernet

Details
10/100/1000 Ethernet ports 1

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 25 -96
54MBit/s 21 -80
MCS0 25 -96
MCS7 20 -75
MCS9 18 -70

RBLHGG-5acD Outdoor Wireless Surveillance System
