1000 Mbps 25dBi 8W Wireless Bridge Windshield PBE-RAD-400
1000 Mbps 25dBi 8W Wireless Bridge Windshield PBE-RAD-400
1000 Mbps 25dBi 8W Wireless Bridge Windshield PBE-RAD-400
1000 Mbps 25dBi 8W Wireless Bridge Windshield PBE-RAD-400
Specifications
Brand Name :
UBNT
Model Number :
PBE-RAD-400
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Product name :
PBE-RAD-400
Dimensions :
420 x 420 x 275 mm (16.54 x 16.54 x 10.83")
Use :
outdoor
Type :
Fiber Optic Transceivers
Memory :
64MB
Warranty :
1 Year
Weight :
1.753 kg (3.87 lb)
Max. Power Consumption :
8W
Max. TX Power :
25 dBm
Networking Interface :
10/100/1000 Ethernet Port
Operating Temperature :
-40 to 70° C (-40 to 158° F)
Power Supply :
24V, 0.5A Gigabit PoE
Description

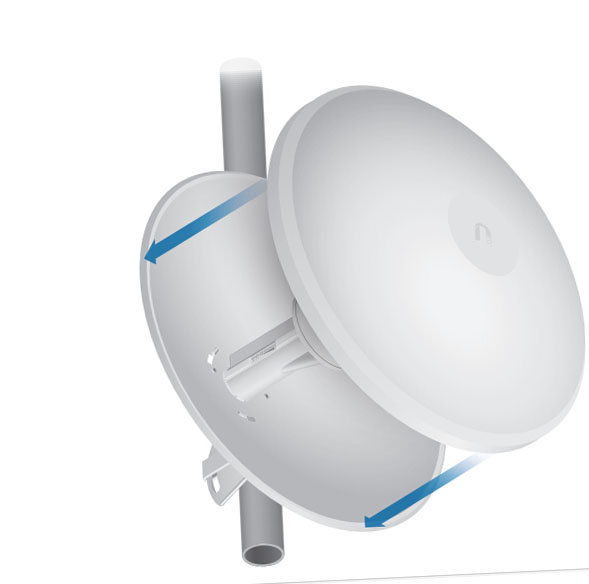

UBNT wireless bridge windshield PBE-RAD-400 is suitable for PBE-M5-400 and PBE-M2-400

A protective radome is available as an optional accessory for the PBE-M2-400 and PBE-M5-400.

Innovative Mechanical Design

Built-in mechanical tilt

The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.

Quick assembly

1.The number of fasteners was reduced to simplify assembly.

2.Tools are required only when the technician mounts the PowerBeam on the pole.

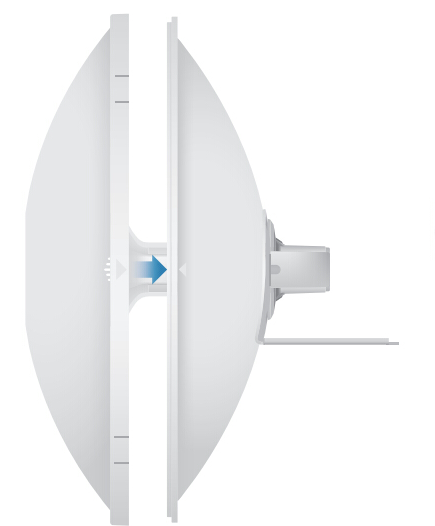

3.Easy removal The antenna feed can be detached with the push of a button.
Corrosion Resistance:

1.Fasteners GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners.

2.Dish and brackets Made of galvanized steel that is powder-coated for superior corrosion resistance.

3.The redesigned pole bracket for the 400 mm dish and fender washers for the 300 mm dish prevent paint from being removed from the metal brackets for improved corrosion resistance.

Specification:

PBE-RAD-400

Dimensions

420 x 420 x 275 mm

(16.54 x 16.54 x 10.83")

Weight

 1.753 kg (3.87 lb)

Memory

 64 MB

Networking Interface

 10/100/1000 Mbps

Antenna Gain

 25dBi

LEDs

 Power, Ethernet,
(4) Signal Strength

Max. Power Consumption

 8W

Output Power

 25 dBm

Power Supply

 24VDC, 0.5A (Minimum)

Power Method

 24V Passive PoE
(Pairs 4, 5+; 7, 8-)

ESD/EMP Protection

 ± 24 kV Contact/Air

Operating Temperature

 -40 to 70° C (-40 to 158° F)

Operating Humidity

 5 to 95% Condensing

Shock and Vibration

 ETSI300-019-1.4

Certifications

 CE, FCC, IC
Operating Frequency (MHz)

US/CA

 2412 - 2462

Worldwide

 2412 - 2472

1000 Mbps 25dBi 8W Wireless Bridge Windshield PBE-RAD-4001000 Mbps 25dBi 8W Wireless Bridge Windshield PBE-RAD-400
