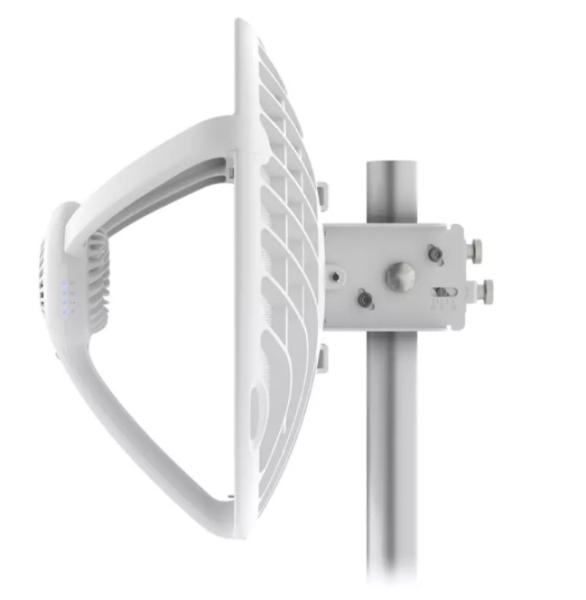

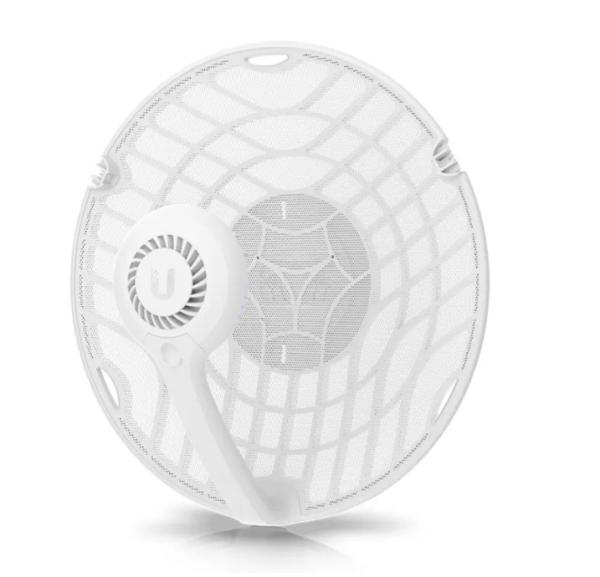

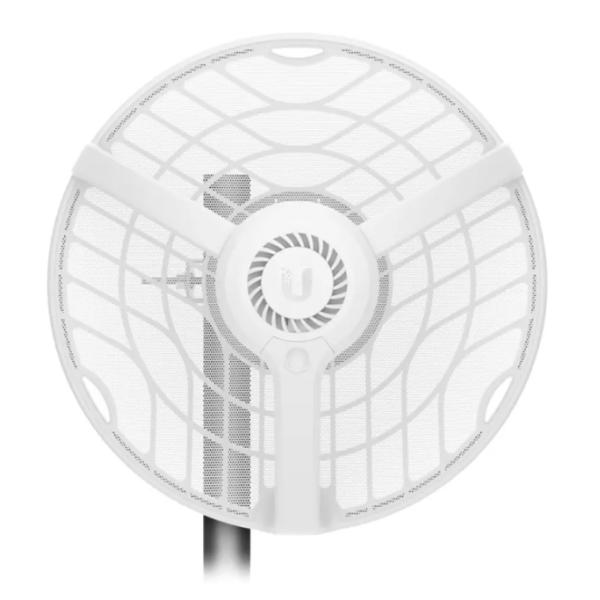

AF60 LR 60GHz Outdoor Wireless Surveillance System Wireless Bridge
AF60 LR 60GHz Outdoor Wireless Surveillance System Wireless Bridge
AF60 LR 60GHz Outdoor Wireless Surveillance System Wireless Bridge
AF60 LR 60GHz Outdoor Wireless Surveillance System Wireless Bridge
Specifications
Brand Name :
UBNT
Model Number :
AF60-LR
Certification :
FCC,CCC,CE
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Dimensions :
413 x 360 mm (16.3 x 14.2")
Weight :
Without mount: 1.5 kg (3.3 lb) With mount: 2.7 kg (6 lb)
Max. Power Consumption :
18W
Power supply :
48VDC, 0.65A gigabit PoE adapter (included)
Maximum throughput :
1.95 Gbps
Maximum range :
12+ km
Warranty :
1 Year
Description

AF60 LR 60GHz Outdoor Wireless Surveillance System Wireless Bridge

UBNT airFiber AF60-LR 60GHz long-distance gigabit high-throughput wireless bridge

Overviews

airFiber 60 GHz Radio System Featuring Wave Technology with True Duplex Gigabit Performance for PtP Links over 12 km Distances.

AF60 LR is a 60GHz radio designed for high-throughput connectivity over an extended range. The airFiber 60 LR features the integrated high-gain dish antenna for high speed, long-range performance Point-to-Point (PtP) links. New WaveTechnology enables incredible long-range performance within the 60GHz spectrum.

Includes a built-in Bt management radio for easy setup.

Features

    • Low-Interference 60 GHz Spectrum
    • Integrated GPS
    • Long Range, over 12 km
    • Precision Alignment Mount Included
    • Link planning support via ISP Design Center
    • Quick Setup Using the *UISP™ App via Bt

Specifications

Mechanical
Dimensions 413 x 360 mm (16.3 x 14.2")
Weight Without mount: 1.5 kg (3.3 lb)
With mount: 2.7 kg (6 lb)
Enclosure materials Aluminum, UV stabilized polycarbonate
Mount material Galvanized steel
Mounting Precision Alignment Kit (included)
Pole compatibility: Ø25.4-76.2 mm (Ø1-3")
Wind loading 420 N at 200 km/h (94.4 lbf at 125 mph)
Hardware
Processor Quad-Core ARM® Cortex® A7
Memory 256 MB DDR3
Networking interface GbE RJ45 port
RF Connections Internal
Max. Power Consumption 18W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8- )
Power supply 48VDC, 0.65A gigabit PoE adapter (included)
Supported Voltage Range 48VDC ± 10%
ESD/EMP Protection Air/Contact: ± 24kV
Operating Temperature -40 to 60° C (-40 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications FCC, CCC, CE
LEDs
Power Flashing white: bootup in progress
White: not connected to UISP™ console
Blue: connected to UISP console
Ethernet Flashing blue: ethernet activity
GPS Blue: receiving at least (4) GPS satellite signals
60G Blue: active connection
Software
OS airOS®
Operating mode PtP only
Ubiquiti specific features Integrated 60 GHz radio, discovery protocol, Wave technology
Network Bridge mode
Services UISP, ping watchdog, NTP client, device discovery
Tools Antenna alignment, discovery utility, ping, trace route, speed test
Software management Bt management for easy setup over UISP app
WEB UI
Minimum software requirements Any modern WEB browser/iOS or Android based smartphone
System
Maximum throughput 1.95 Gbps
Maximum range 12+ km
Encryption WPA2-PSK (AES)
RF
Operating Frequency 57 to 71 Ghz
Depends on regulatory region.
GPS Yes
Channel Bandwidth 2160, 1080 MHz

AF60 LR 60GHz Outdoor Wireless Surveillance System Wireless Bridge
