0.42 Inch Monochrome OLED Display 72X40 Resolution Small OLED Display Panel
0.42 Inch Monochrome OLED Display 72X40 Resolution Small OLED Display Panel
0.42 Inch Monochrome OLED Display 72X40 Resolution Small OLED Display Panel
0.42 Inch Monochrome OLED Display 72X40 Resolution Small OLED Display Panel
0.42 Inch Monochrome OLED Display 72X40 Resolution Small OLED Display Panel
0.42 Inch Monochrome OLED Display 72X40 Resolution Small OLED Display Panel
0.42 Inch Monochrome OLED Display 72X40 Resolution Small OLED Display Panel
0.42 Inch Monochrome OLED Display 72X40 Resolution Small OLED Display Panel
0.42 Inch Monochrome OLED Display 72X40 Resolution Small OLED Display Panel
0.42 Inch Monochrome OLED Display 72X40 Resolution Small OLED Display Panel
Specifications
Brand Name :
Limito
Model Number :
QG-7240TSWDG01
Place of Origin :
China
Diagonal Screen Size :
0.42
Drive IC :
ST7315
Interface :
I2C
Life Time :
30,000
Operating Temperature :
-40~70°C
Number of Pixels :
72X40
Brightness :
150
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Description

0.42 Inch Mini OLED Display Monochrome 72X40 Resolution Small OLED Display Panel

LIMITO OLED Description:

QG-7240TSWDG01 OLED Display Module is a 72x40 resolution COG graphic display, with a diagonal size of 0.42 inch. The OLED model is designed as an industrial-grade product, offering the advantage of a competitive price. The module is built with ST7315 IC; it supports I2C and a 4-wire SPI serial interface. The supply voltage for logic is 2.8V, supply voltage for display is 9V, Operating Current for VDD is 180μA, driving duty 1/40.

LIMITO OLED specification:

Part Name: OLED Display Module
Limito Part ID: QG-7240TSWDG01
Display Mode: Passive Matrix
Display Color: Monochrome (White)
Drive Duty: 1/40 Duty
Number of Pixels: 72*40
Panel Size: 12*11*1.25 (mm)
Active Area: 9.196*5.18 (mm)
Pixel Pitch: 0.128*0.13 (mm)
Pixel Size: 0.108*0.11(mm)

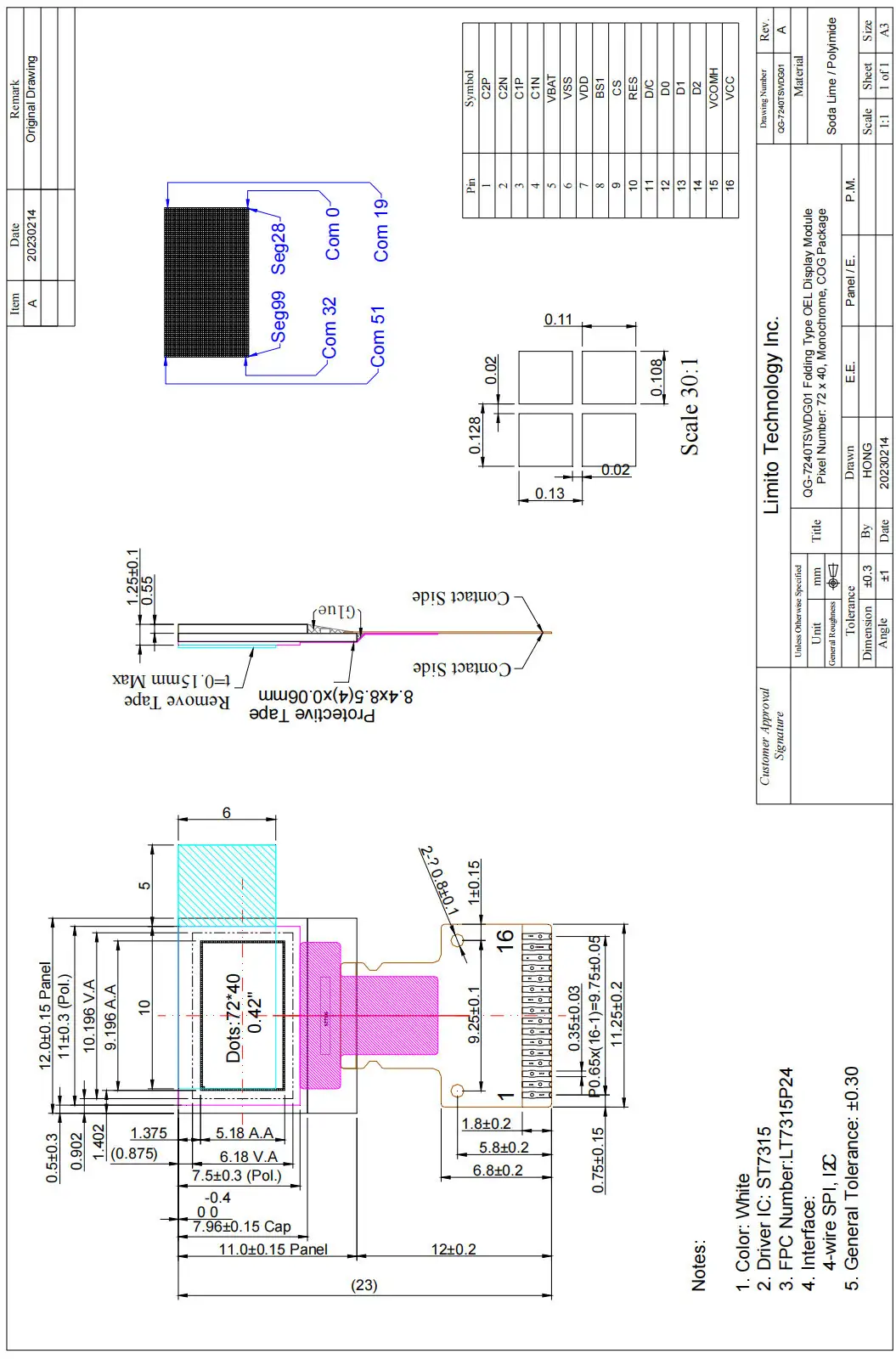

LIMITO OLED Mechanical Drawing

0.42 Inch Monochrome OLED Display 72X40 Resolution Small OLED Display Panel

LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.

LIMITO OLED Benefits:

High Contrast Ration(10,000:1)

Free Viewing Angle

Fast Response Time(<15us)

Thinner & Lighter & Durable

Wide operation Temperature-40°c~+85°c

Self-emitting, no need for a backlight

LIMITO OLED Application:

Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key

Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box

Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard

PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen

Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment

Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
