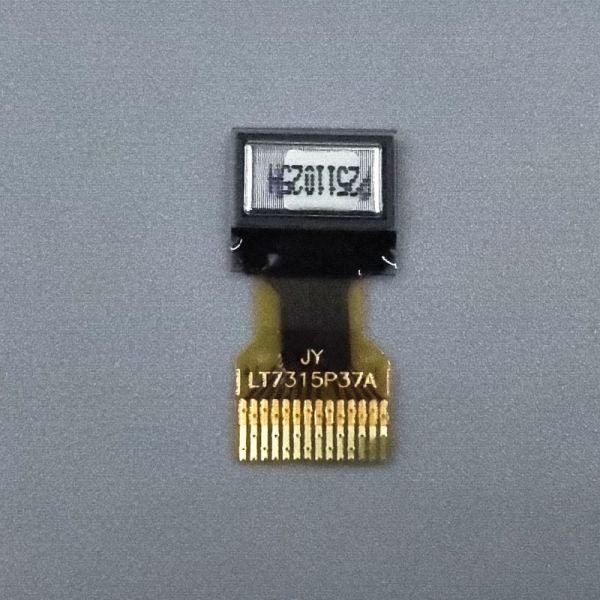

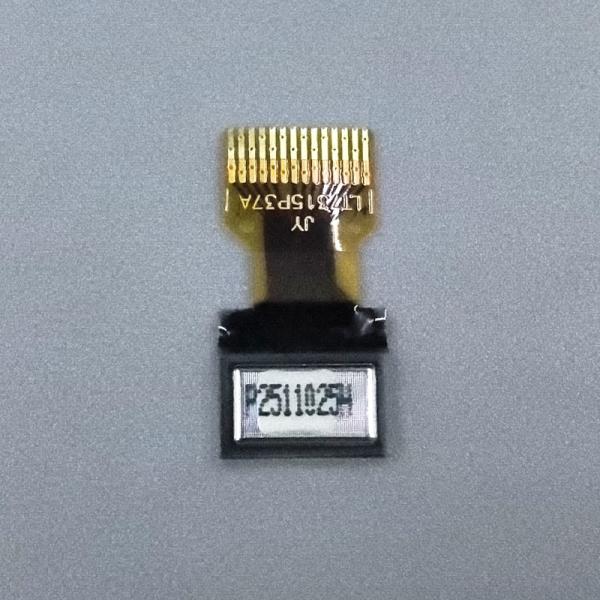

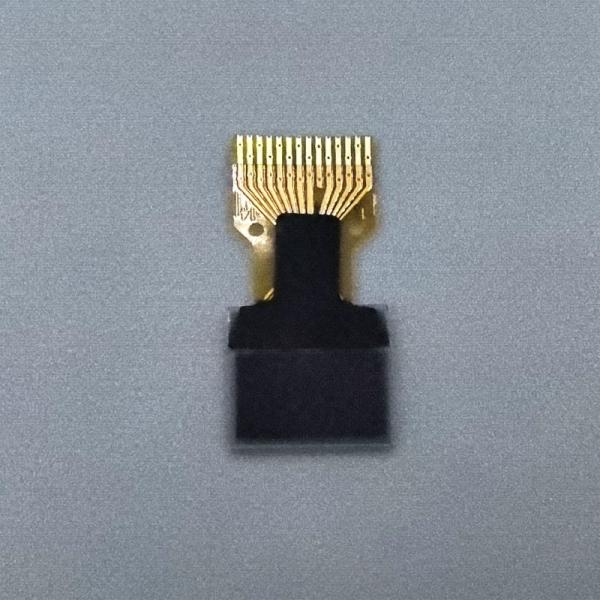

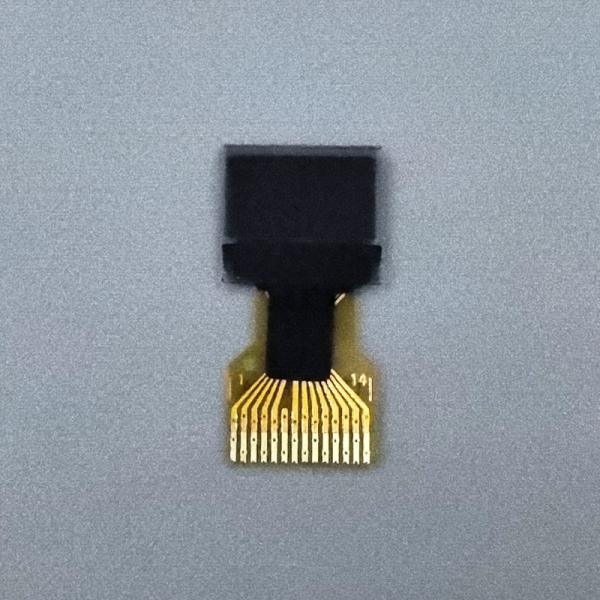

0.32 inch Monochrome OLED Display
0.32 inch Monochrome OLED Display
0.32 inch Monochrome OLED Display
0.32 inch Monochrome OLED Display
0.32 inch Monochrome OLED Display
0.32 inch Monochrome OLED Display
0.32 inch Monochrome OLED Display
0.32 inch Monochrome OLED Display
0.32 inch Monochrome OLED Display
0.32 inch Monochrome OLED Display
Specifications
Brand Name :
Limito
Model Number :
QG-6032TSWDG02
Place of Origin :
China
Diagonal Screen Size :
0.32
Drive IC :
ST7315
Interface :
4Line/SPI/I2C
Life Time :
50,000
Operating Temperature :
-40~70°C
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Description

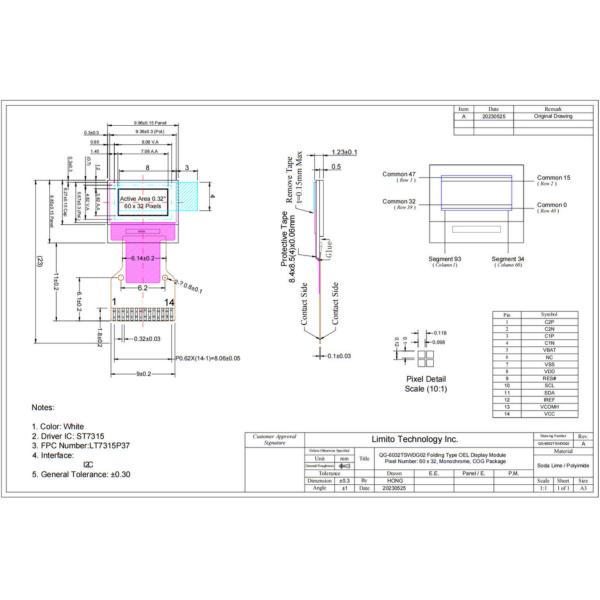

1.Mechanical Drawing0.32 inch Monochrome OLED Display

2.Basic specification

Part Name:
OLED Display Module
Limito Part ID:
QG-6032TSWDG02
Display Mode:
Passive Matrix
Display Color:
Monochrome (White)
Drive Duty:
1/32 Duty
Number of Pixels
60*32
Panel Size:
9.96*8.85*1.23 (mm)
Active Area:
7.06*3.82 (mm)
Pixel Pitch:
0.118*0.12 (mm)
Pixel Size:
0.098*0.1 (mm)

LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.

LIMITO OLED Benefits:

High Contrast Ration(10,000:1)

Free Viewing Angle

Fast Response Time(<15us)

Thinner &Lighter&Durable

Wide operation Temperature-40°c~+85°c

Self-emitting,No need of backlight

LIMITO OLED Application :

Industrial: Mearusring& meter,OA Equipment,POS&Server Card Reader,Door Security,USB Key

Communication:Mobile Phone,Bluetooth Device,Router,Set-Top Box

Automotive:Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard

PC peripheral: Keyboard, Mouse,Printer,Scanner,NAS, Digital Pen

Medical:Glucose Meter,Oximeter,Blood-pressure Meter,Beauty&Cosmetic Equipment

Consumer:IoT,E-Cigarette,Wearable Device,Remote Controller,Game Machine,Digital Camera,Audio Video Equipment
