2.23 Inch OLED Display Module 128X32 Pixels Dots Cog Monochrome SSD1305
2.23 Inch OLED Display Module 128X32 Pixels Dots Cog Monochrome SSD1305
Specifications
Brand Name :
Limito
Model Number :
QG-2832ALBCG01P1
Place of Origin :
China
Diagonal Screen Size :
2.23
Drive IC :
SSD1305
Interface :
8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
Life Time :
25000
Operating Temperature :
-40~85°C
Number of Pixels :
128x32
Brightness :
120
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Description

2.23'' OLED Display Module 128X32 Dots Cog Monochrome SSD1305

LIMITO OLED Description:

The 2.23'' OLED display module features a resolution of 128 x 32 dots and utilizes the SSD1305 driver, making it well-suited for various applications requiring clear visual output.

Key Features:

Screen Size: 2.23 inches

Resolution: 128 x 32 dots

Driver IC: SSD1305

Color: Monochrome (typically white or blue on black background)

Display Type: COG (Chip on Glass) design for improved performance

Low Power Consumption: Efficient for battery-powered devices

High Contrast: Excellent visibility in different lighting conditions

Compact Size: Ideal for space-limited projects

LIMITO OLED Specification:

Part Name: OLED Display Module
Limito Part ID:
QG-2832ALBCG01P1
Display Mode: Passive Matrix
Display Color: Monochrome(Blue)
Drive Duty: 1/32 Duty
Number of Pixels: 128 x 32
Panel Size:
62.00 x24.00 x 2.00 (mm)
Module Size
 66.5 x 35 x 5.15 (mm)
Active Area: 55.02 x 13. 10 (mm)
Pixel Pitch: 0.43 x 0.41 (mm)
Pixel Size:
0.41 x 0.39 (mm)

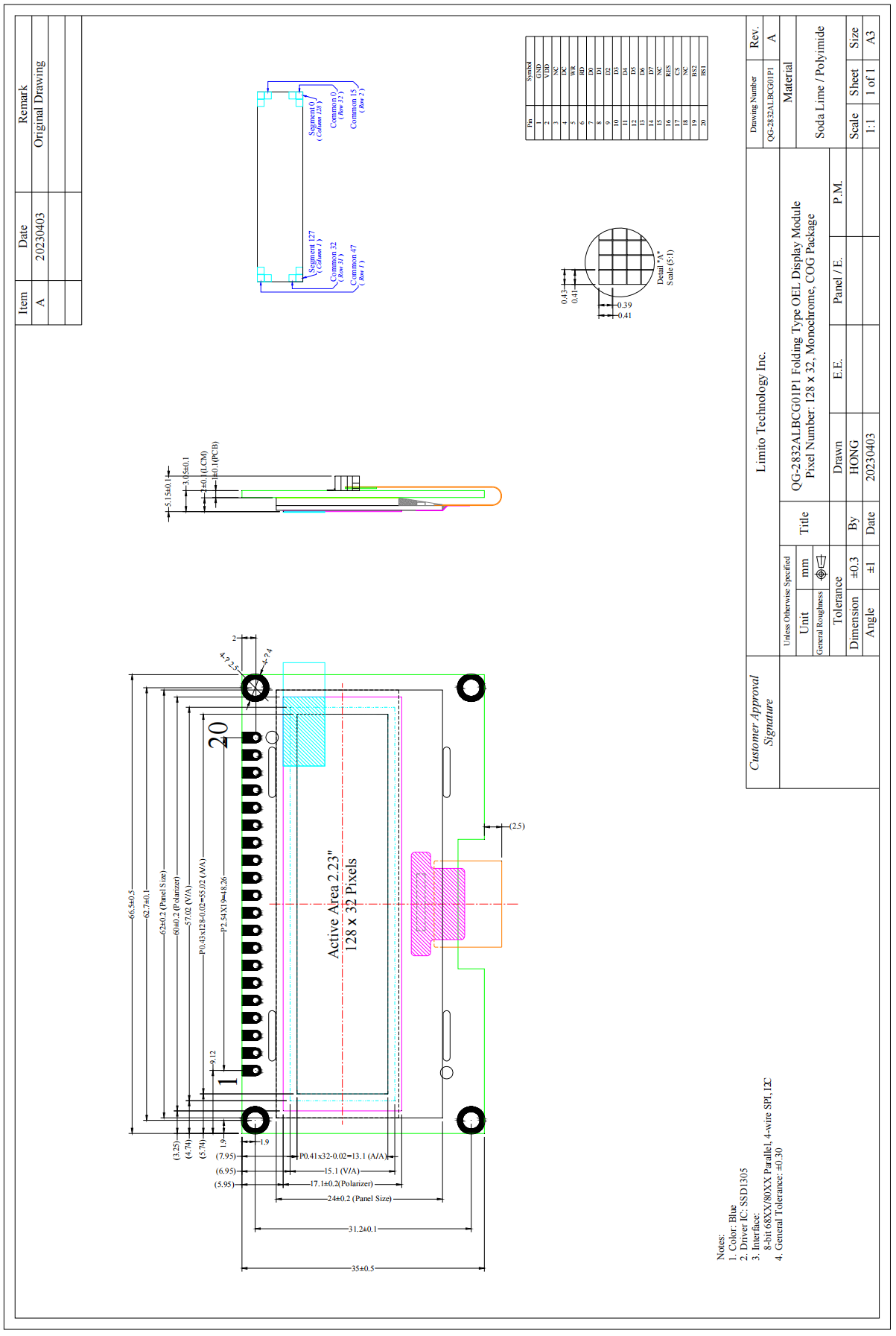

LIMITO OLED Mechanical Drawing

2.23 Inch OLED Display Module 128X32 Pixels Dots Cog Monochrome SSD1305

LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.

LIMITO OLED Benefits:

High Contrast Ration(10,000:1)

Free Viewing Angle

Fast Response Time(<15us)

Thinner & Lighter & Durable

Wide operation Temperature-40°c~+85°c

Self-emitting, no need for a backlight

LIMITO OLED Application:

Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key

Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box

Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard

PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen

Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment

Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
