Specifications
Brand Name :
Limito
Model Number :
QGX-2864TMBYG01
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
0.96
Drive IC :
ST7315
Interface :
8-bit 68XX/80XX Parallel, 3/4-wire SPI, I2C
Life Time :
50,000
Operating Temperature :
-40~70°C
Number of Pixels :
128x64
Brightness :
120
Description

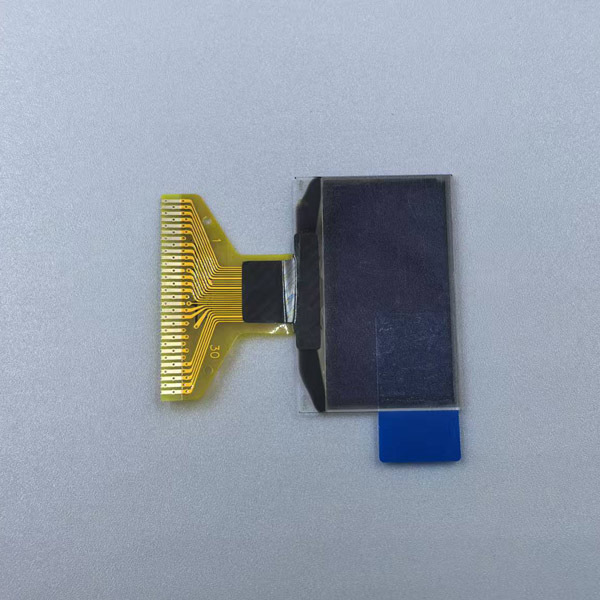

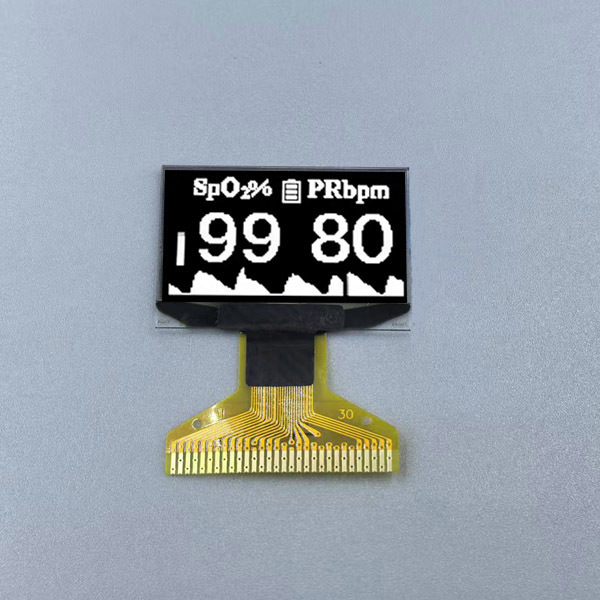

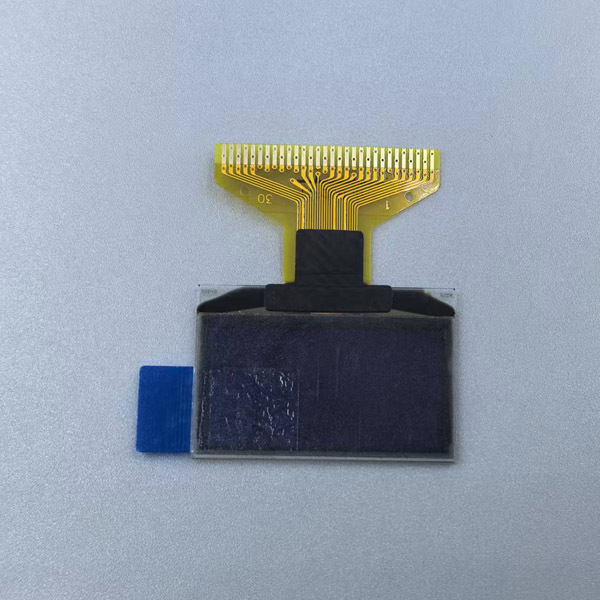

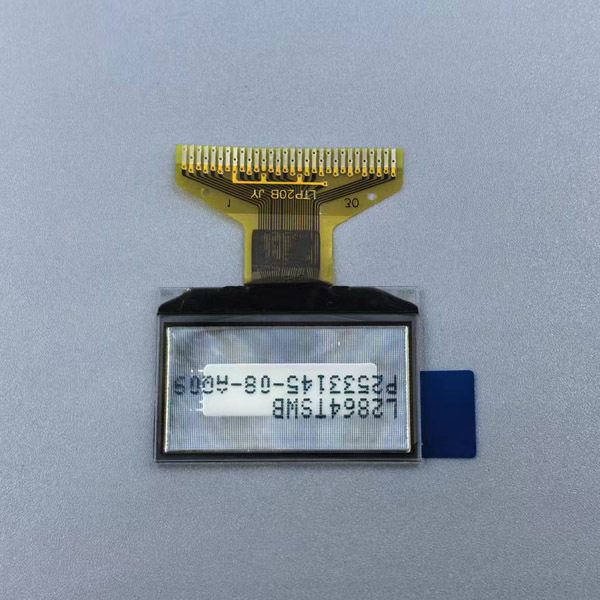

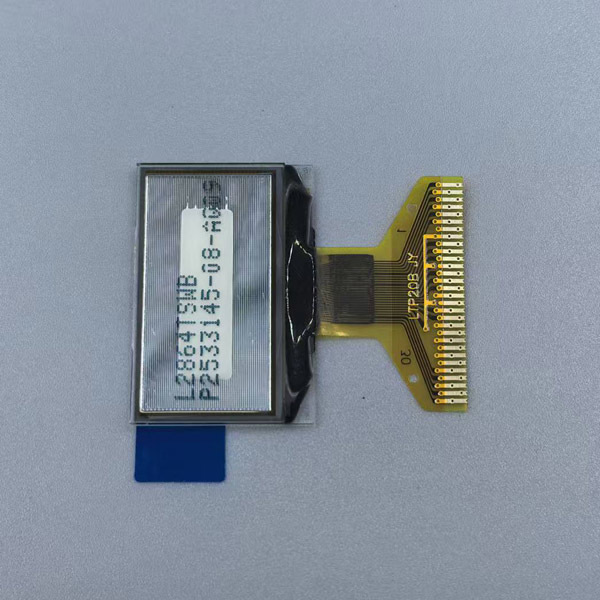

0.96" Small OLED Display 128x64 Pixels ST7315

LIMITO OLED Description:

  • Size: 0.96 inches
  • Resolution: 128x64 pixels
  • Colors: Yellow and blue OLED for vibrant contrast
  • Driver: ST7315 for reliable operation
  • Low Power Consumption: Ideal for battery-powered projects

LIMITO OLED specification:

Part Name: OLED Display Module
Limito Part ID: QGX-2864TMBYG01
Display Mode: Passive Matrix
Display Color: Monochrome (Yellow&Blue)
Drive Duty: 1/64 Duty
Number of Pixels: 128*64
Panel Size: 26.70*19.26*1.27(mm)
Active Area: 21.74*11.2(mm)
Pixel Pitch: 0.17*0.17(mm)
Pixel Size: 0.15*0.15(mm)

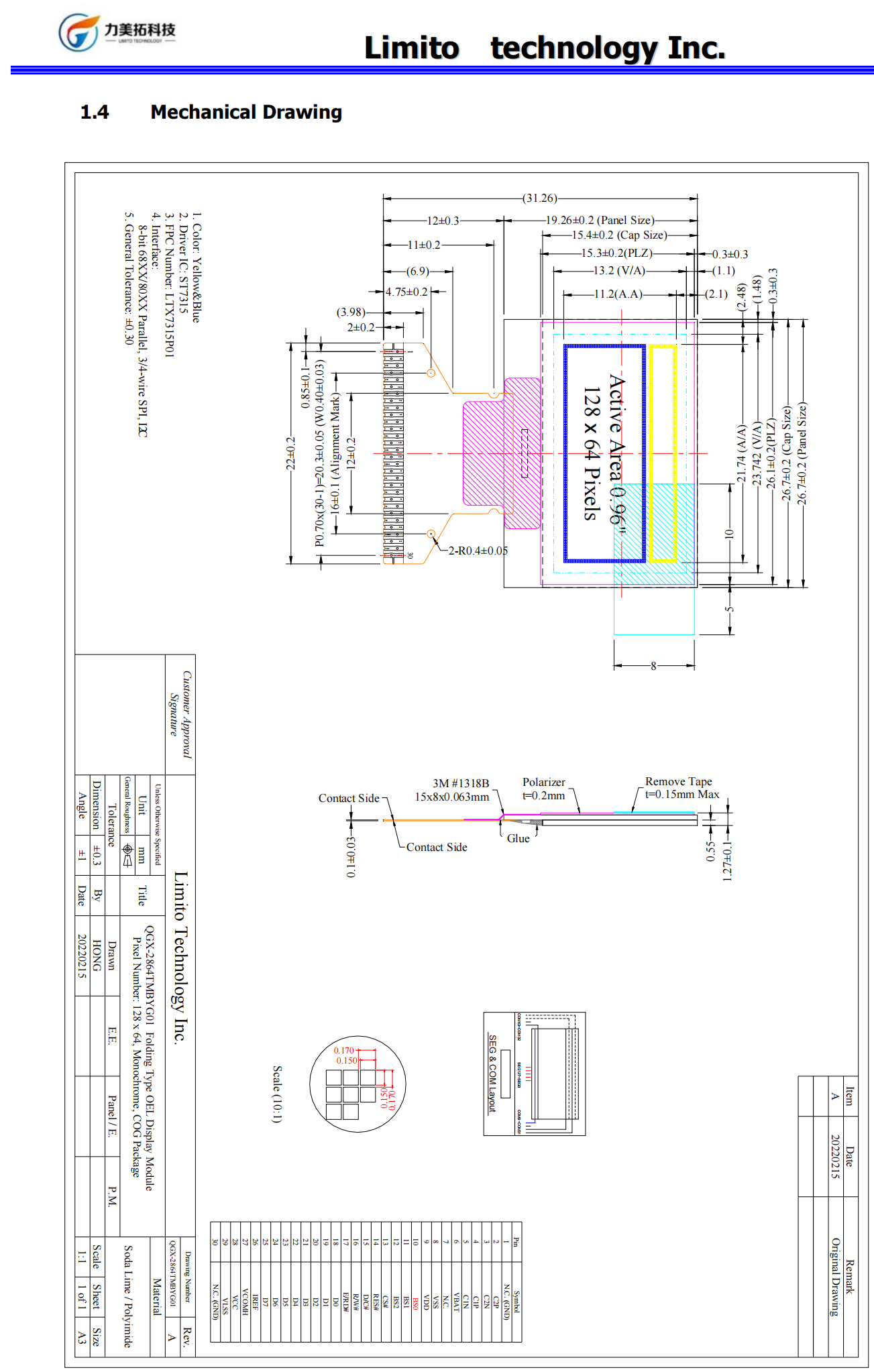

LIMITO OLED Mechanical Drawing

0.96 Inch Small Monochrome OLED Display 128x64 Pixels ST7315

LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.

LIMITO OLED Benefits:

High Contrast Ration(10,000:1)

Free Viewing Angle

Fast Response Time(<15us)

Thinner & Lighter & Durable

Wide operation Temperature-40°c~+85°c

Self-emitting, no need for a backlight

LIMITO OLED Application:

Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key

Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box

Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard

PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen

Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment

Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
