2.23 Inch OLED Display With 128x32 Resolution 8 Bit Parallel 4 Wire SPI I2C Interface
2.23 Inch OLED Display With 128x32 Resolution 8 Bit Parallel 4 Wire SPI I2C Interface
Specifications
Brand Name :
Limito
Model Number :
QG-2832ALBCG01
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
2.23
Drive IC :
SSD1305
Interface :
8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
Life Time :
25000
Operating Temperature :
-40~85°C
Number of Pixels :
128x32
Brightness :
120
Description

2.23 Inch OLED Display With 128x32 Resolution 8 Bit Parallel 4-Wire SPI I2C Interface

LIMITO OLED Description:

  • 2.23 inch size for a compact and portable display.
  • White light display for enhanced visibility.
  • Supports 8 Bit Parallel 4-Wire SPI I2C interfaces for easy integration.
  • Driver IC SSD1305 for stable and reliable performance.
  • Resolution of 128x32 for detailed images and text.
  • Brightness of 120 for good visibility in various lighting conditions.

LIMITO OLED Specification:

Part Name: OLED Display Module
Limito Part ID:
QG-2832ALBCG01
Display Mode: Passive Matrix
Display Color: Monochrome (Blue)
Drive Duty: 1/32 Duty
Number of Pixels: 128x32
Panel Size:
62.00 x24.00 x 2.00 (mm)
Active Area: 55.02 x 13. 10 (mm)
Pixel Pitch: 0.43 x 0.41 (mm)
Pixel Size: 0.41 x 0.39 (mm)

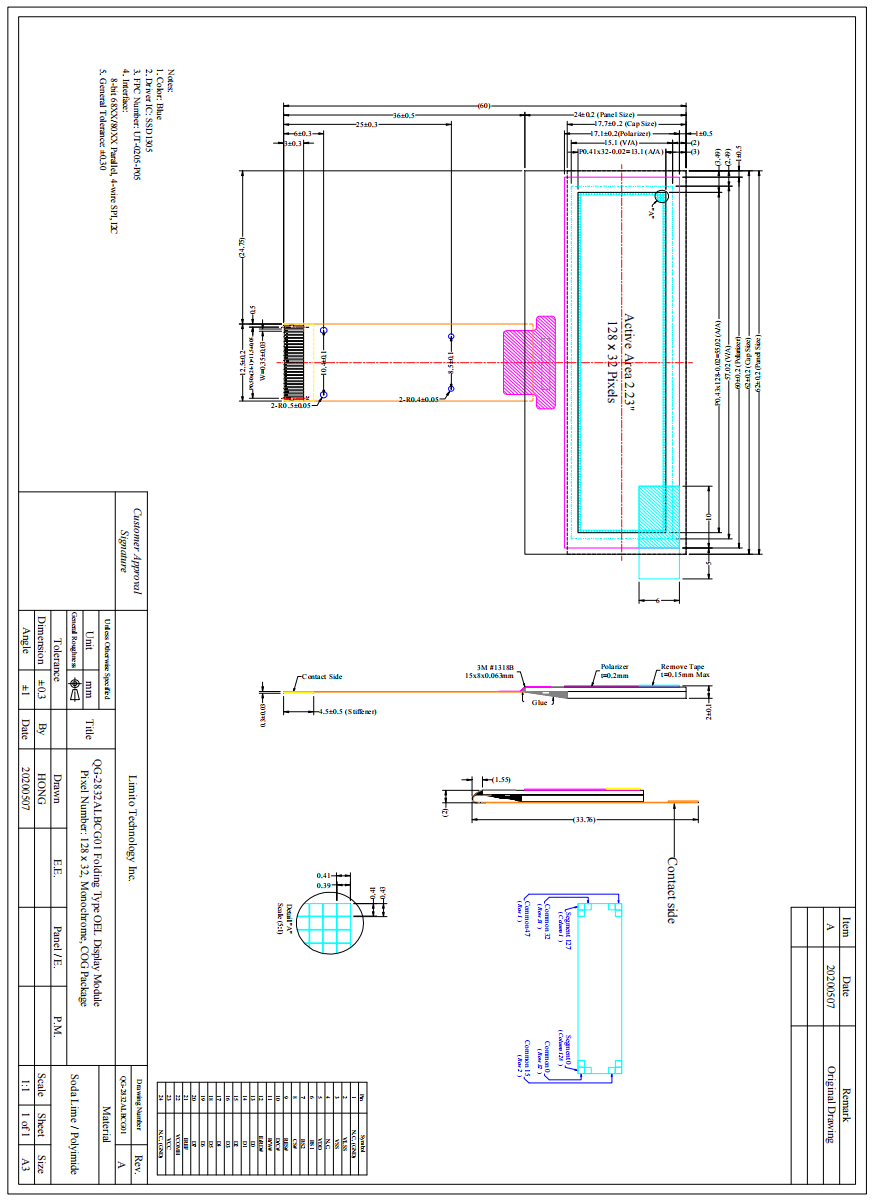

LIMITO OLED Mechanical Drawing

2.23 Inch OLED Display With 128x32 Resolution 8 Bit Parallel 4 Wire SPI I2C Interface

LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.

LIMITO OLED Benefits:

High Contrast Ration(10,000:1)

Free Viewing Angle

Fast Response Time(<15us)

Thinner & Lighter & Durable

Wide operation Temperature-40°c~+85°c

Self-emitting, no need for a backlight

LIMITO OLED Application:

Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key

Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box

Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard

PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen

Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment

Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
