Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export
Specifications
Transmission :
Fast 8-speed Gearbox
Packaging Details :
Nude Packed（Adjust according to the needs of different export countries）.
Chassis Dimension :
6740×2530×2890mm
Price :
Pricing Tailored to Your Needs
Engine :
B190 33
MOQ :
1
GVW (Gross Vehicle Weight) :
18000kg
Supply Ability :
Unlimited
Step Height from Ground :
630mm
Delivery Time :
5-7 working days; large orders depend on the factory's schedule.
Description

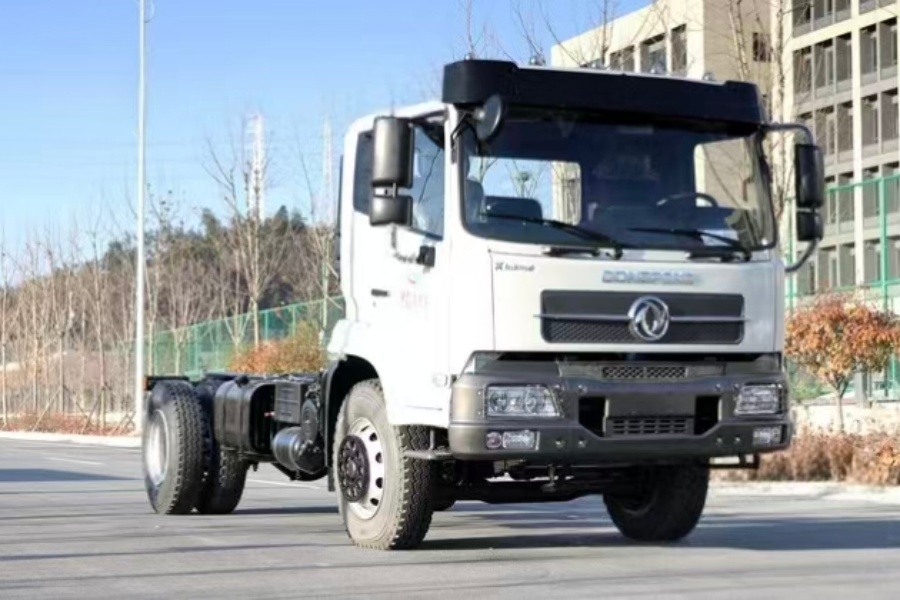

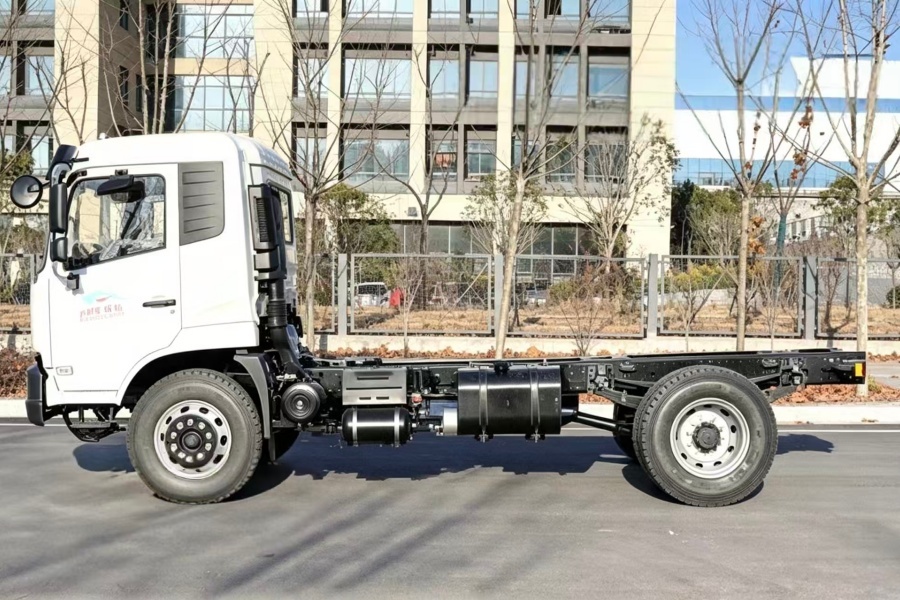

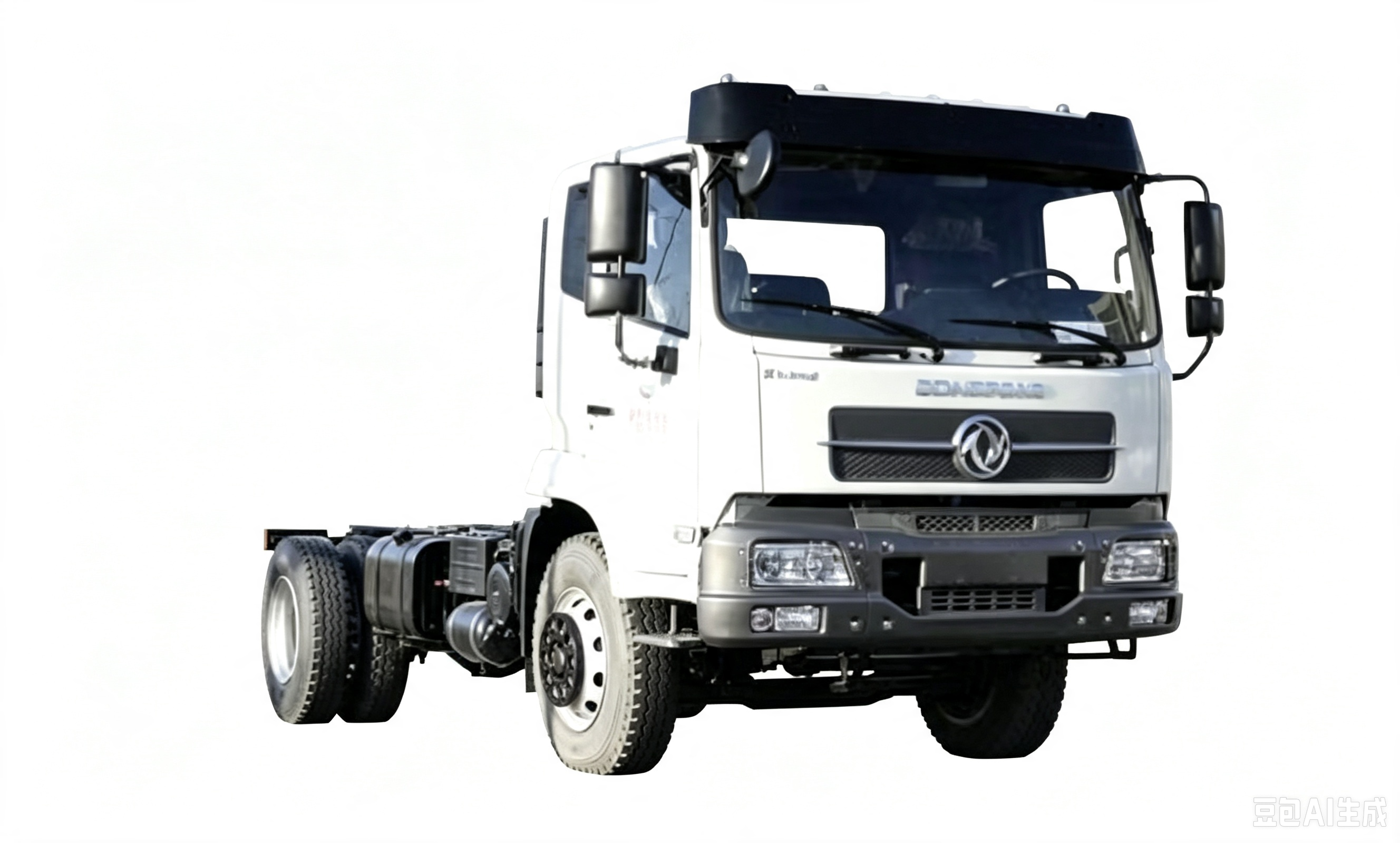

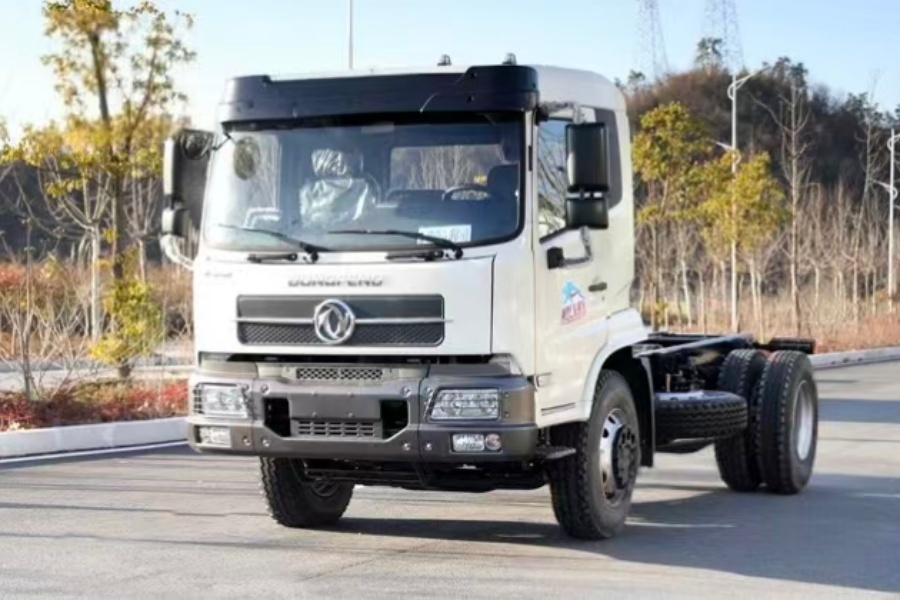

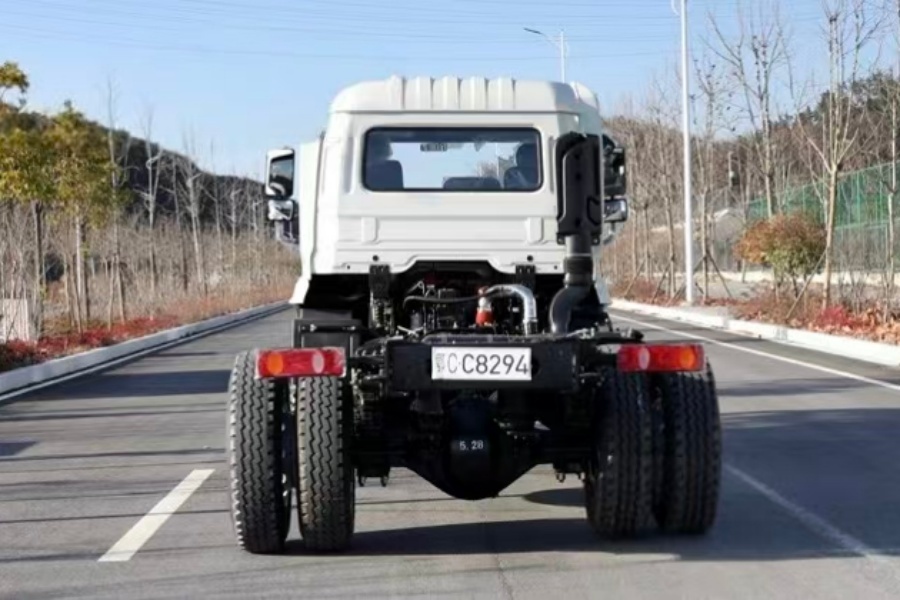

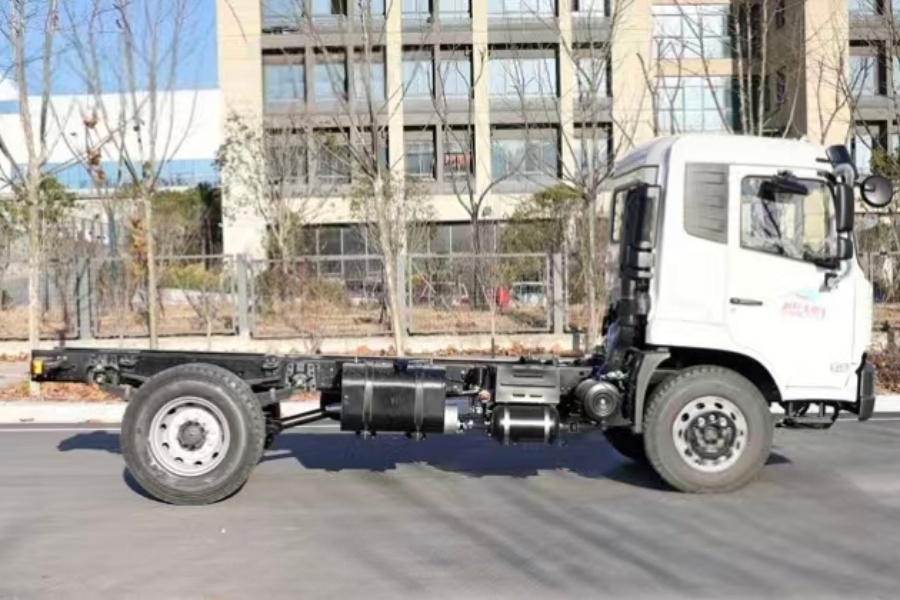

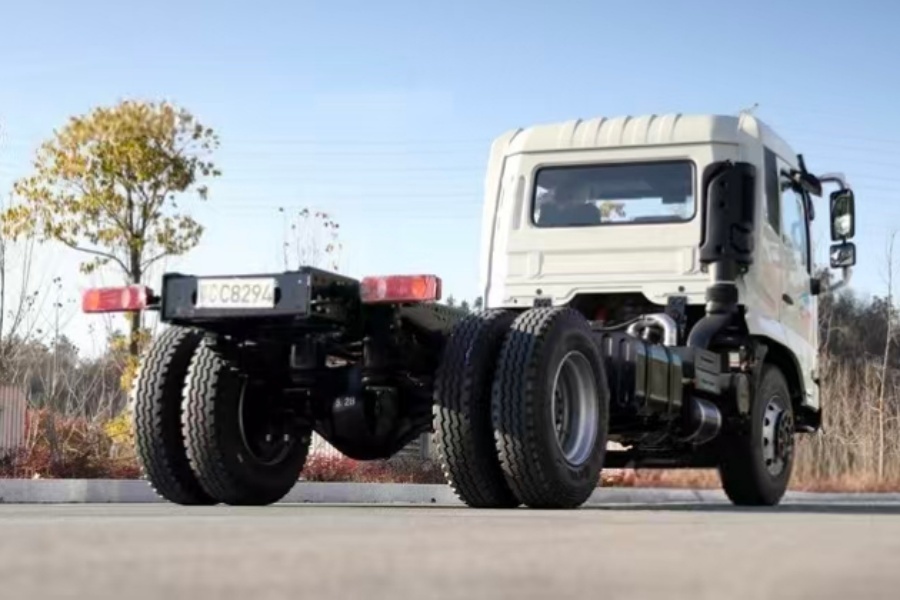

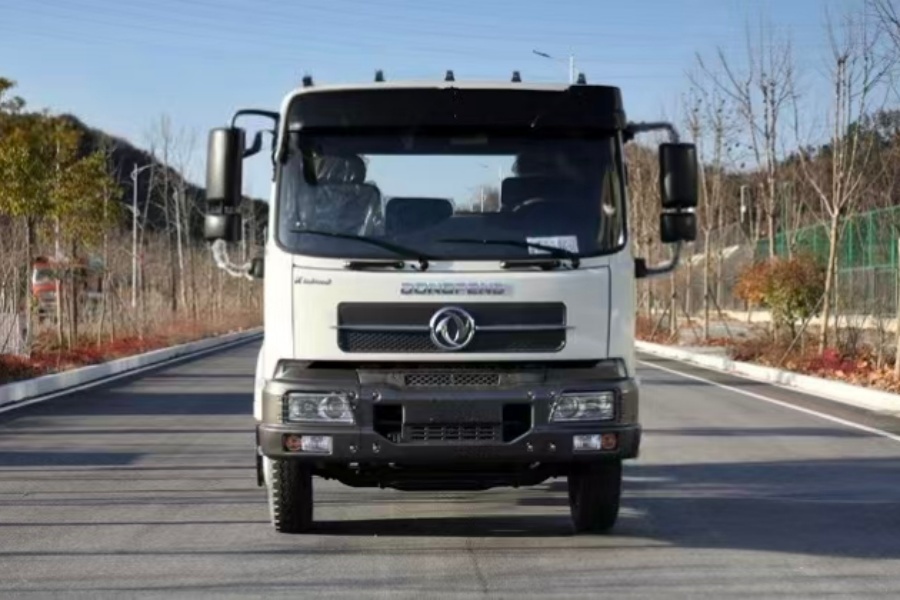

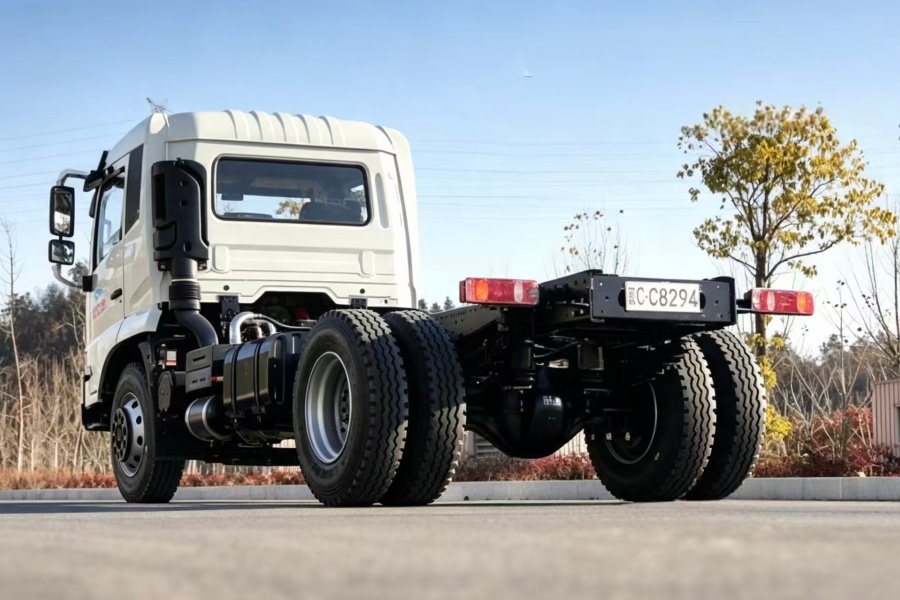

This Dongfeng 4×2 chassis is customized for swing arm garbage trucks. Equipped with B190 engine, Faster 8-speed transmission, reinforced axles and suspension. Max GVW 18t, wheelbase 3950mm. 24V electrical system, top-mounted removable warning light. Suitable for special vehicle modification.

Dongfeng 4×2 Swing Arm Garbage Truck Chassis B190 18Ton For Export

Basic Configuration
Cab Dongfeng Flat Roof Semi-berth Cab (with bunk)
Engine B190 33
Transmission Fast 8-speed Gearbox
Axle Front axle 5.5 tons / Rear axle 13 tons
Tire 11R22.5 (6+1 spare tire)
Electrical System 24V Circuit System
Suspension Leaf Spring 8/8+12
Detailed Parameters
Chassis Dimension 6740×2530×2890mm
Refitting Length ≥4450mm
Wheelbase 3950mm
Track Width 1955/1865mm
Front Overhang 1430mm
Rear Overhang 1370mm
GVW (Gross Vehicle Weight) 18000kg
Seating Capacity 3 persons
Step Height from Ground 630mm
Fuel Tank Capacity 210L
Displacement 5.9L
Power 140kw
Max. Speed 90km/h
Approach/Departure Angle 24°/34°
Drive Type 4×2

Note:Specifications are for reference only, subject to the actual vehicle.
