Specifications
Brand Name :
Dong Feng
Model Number :
Truck Chassis
Place of Origin :
Shiyan City, Hubei Province, China
MOQ :
1
Price :
Pricing Tailored to Your Needs
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
Unlimited
Delivery Time :
5-7 working days; large orders depend on the factory's schedule.
Packaging Details :
Nude Packed（Adjust according to the needs of different export countries）.
Color :
Camel gray，Blue, White, Red，Champagne,gray,Black gold,silver...
Customized :
Cargo box, engine, axle...
Compatibility :
Universal/Specific vehicle models
Dimensions :
Customizable based on vehicle
Manufacturer :
OEM
Material :
Steel/Aluminum
Description

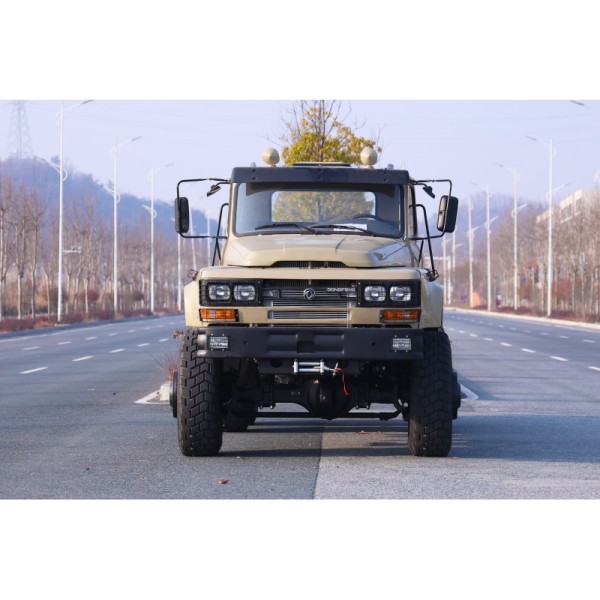

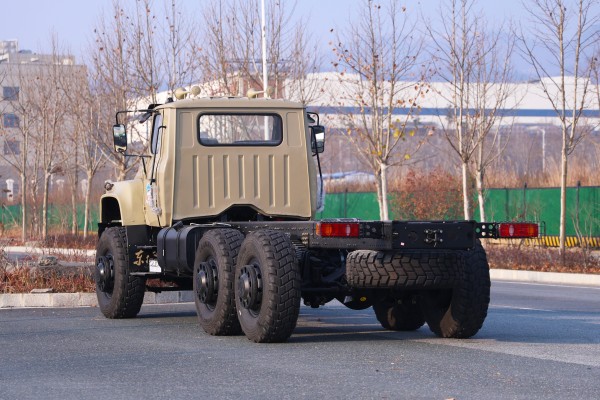

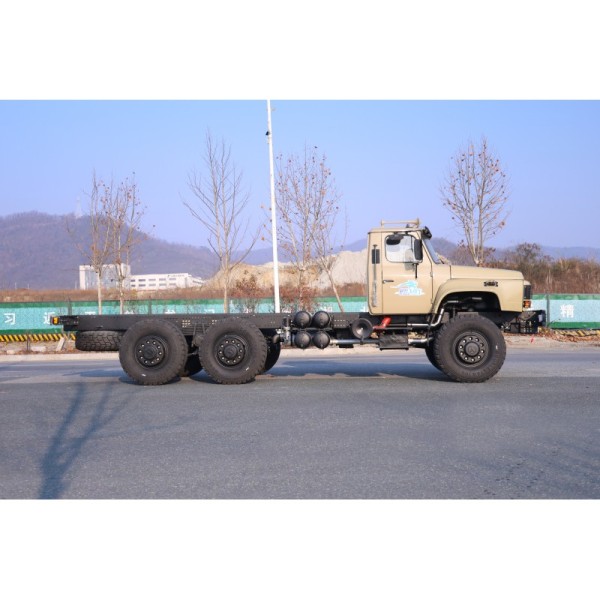

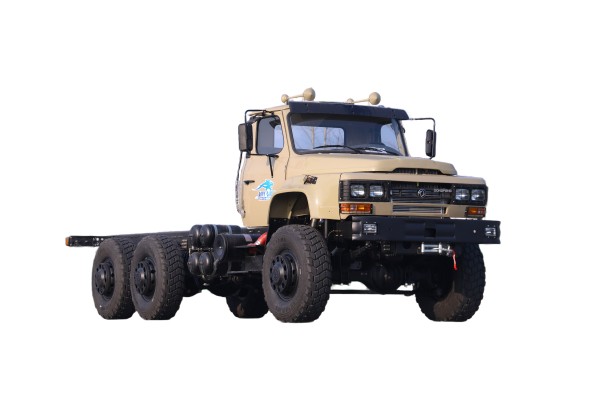

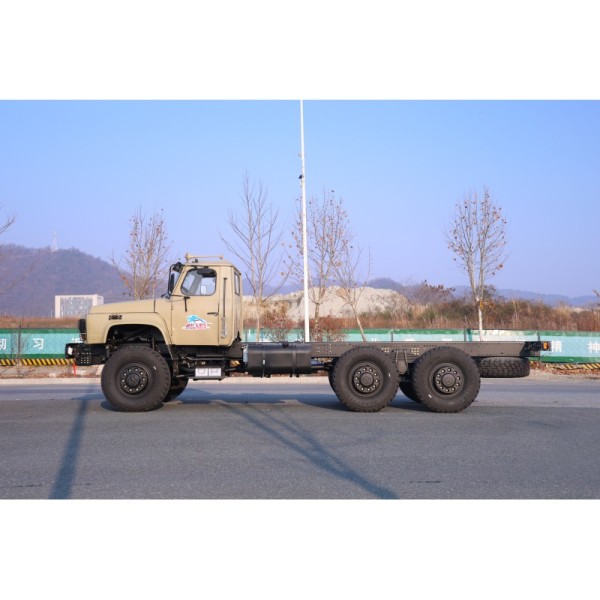

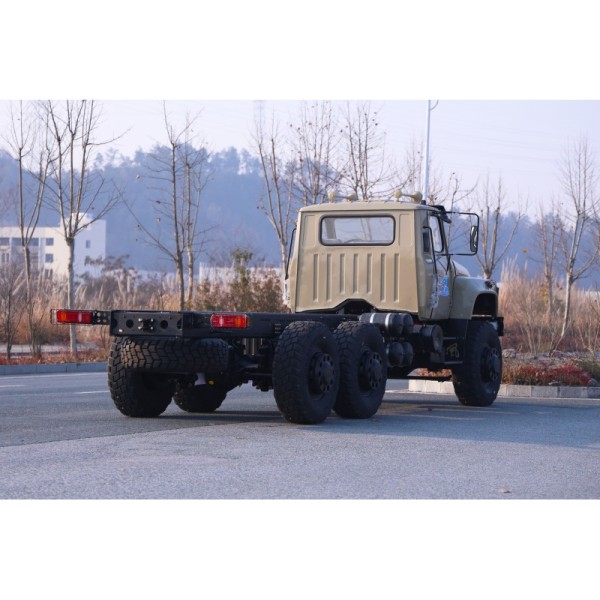

This 260-horsepower 6x6 cab-over chassis is a custom-built special platform developed for demanding environments. It is powered by a 260 HP engine with six-wheel drive for strong traction. Equipped with 12.5R20 deep-tread tires, it delivers reliable grip even in desert and snowy conditions.

All-Wheel Drive 25-Ton Off-Road Special Vehicle Chassis Modification _ 6*6 Truck Chassis Sales and Customization _ 260HP 6x6 Off-Road Chassis

Basic Configuration
Engine C260 33
Transmission 8-speed Manual

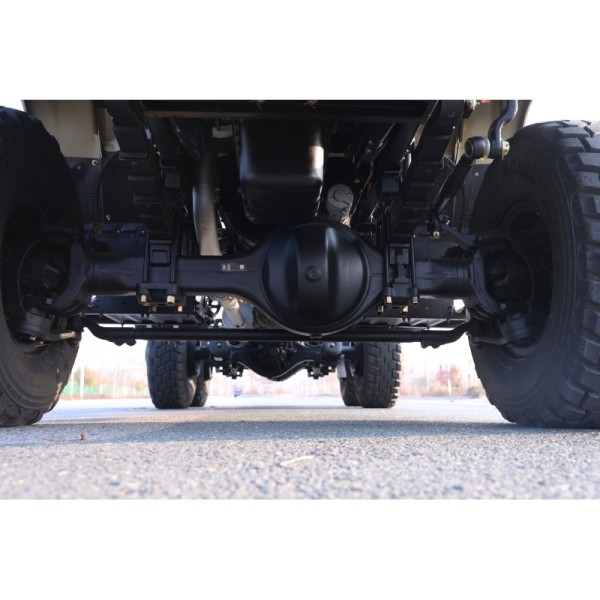

Axles Front: 6.5t / Middle: 10t / Rear: 10t
Cab Dongfeng Cab-Over Single Cab
Tires 12.5R20 (6+1 spare)
Electrical System 24V System
Optional Equipment A/C, PTO, Winch, Headlight Grilles

An electric winch can be installed at the front, and all lights can be fitted with protective grilles, making it ideal for forest and swamp operations.

Detailed Parameters
Chassis Dimensions 8230×2525×2740 mm
Body Mounting Length ≥ 5250 mm
Wheelbase 3850 + 1350 mm
Track Width 2010 mm
Gross Vehicle Weight 25000 kg
Chassis Curb Weight 7410 kg
Seating Capacity 3 persons
Max Power 191 kW
Displacement 8.3 L
Fuel Tank Capacity 300 L
Frame Rear End Height 1220 mm
Max Speed ≥ 90 km/h
Gradeability 60%
Gradient Holding Capability 40%
Fording Depth 620 mm
Obstacle Crossing Height 480 mm
Min. Ground Clearance 295 mm
Approach / Departure Angle 31° / 22°


All-Wheel Drive 25-Ton Off-Road Special Vehicle Chassis Modification _ 6*6 Truck Chassis Sales and Customization _ 260HP 6x6 Off-Road Chassis

All-Wheel Drive 25-Ton Off-Road Special Vehicle Chassis Modification _ 6*6 Truck Chassis Sales and Customization _ 260HP 6x6 Off-Road Chassis

All-Wheel Drive 25-Ton Off-Road Special Vehicle Chassis Modification _ 6*6 Truck Chassis Sales and Customization _ 260HP 6x6 Off-Road Chassis

All-Wheel Drive 25-Ton Off-Road Special Vehicle Chassis Modification _ 6*6 Truck Chassis Sales and Customization _ 260HP 6x6 Off-Road Chassis

All-Wheel Drive 25-Ton Off-Road Special Vehicle Chassis Modification _ 6*6 Truck Chassis Sales and Customization _ 260HP 6x6 Off-Road Chassis

All-Wheel Drive 25-Ton Off-Road Special Vehicle Chassis Modification _ 6*6 Truck Chassis Sales and Customization _ 260HP 6x6 Off-Road Chassis

All-Wheel Drive 25-Ton Off-Road Special Vehicle Chassis Modification _ 6*6 Truck Chassis Sales and Customization _ 260HP 6x6 Off-Road Chassis

All-Wheel Drive 25-Ton Off-Road Special Vehicle Chassis Modification _ 6*6 Truck Chassis Sales and Customization _ 260HP 6x6 Off-Road Chassis
