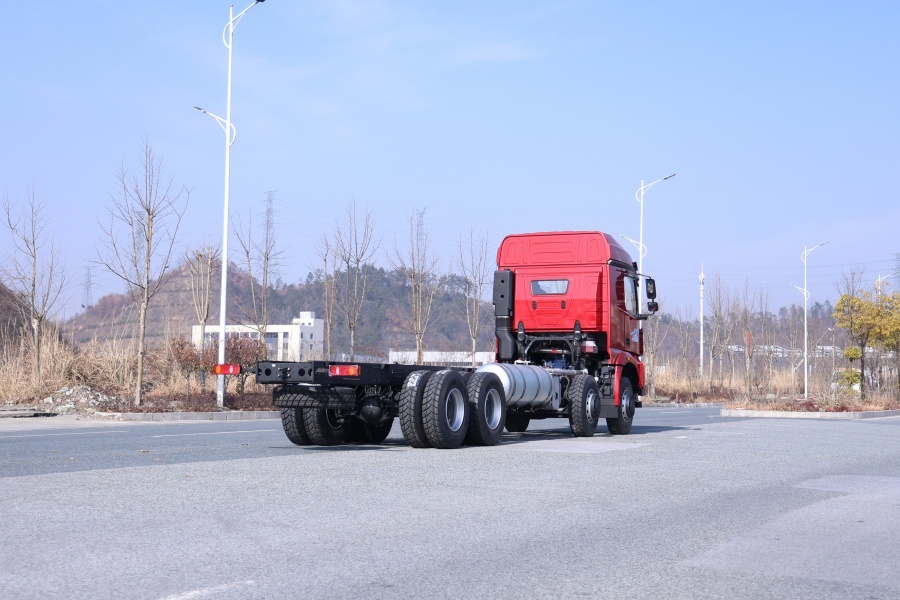

Dongfeng 8x4 Heavy-Duty Off-Road Truck Prototype Chassis
Dongfeng 8x4 Heavy-Duty Off-Road Truck Prototype Chassis
Dongfeng 8x4 Heavy-Duty Off-Road Truck Prototype Chassis
Dongfeng 8x4 Heavy-Duty Off-Road Truck Prototype Chassis
Dongfeng 8x4 Heavy-Duty Off-Road Truck Prototype Chassis
Dongfeng 8x4 Heavy-Duty Off-Road Truck Prototype Chassis
Dongfeng 8x4 Heavy-Duty Off-Road Truck Prototype Chassis
Dongfeng 8x4 Heavy-Duty Off-Road Truck Prototype Chassis
Dongfeng 8x4 Heavy-Duty Off-Road Truck Prototype Chassis
Dongfeng 8x4 Heavy-Duty Off-Road Truck Prototype Chassis
Dongfeng 8x4 Heavy-Duty Off-Road Truck Prototype Chassis
Dongfeng 8x4 Heavy-Duty Off-Road Truck Prototype Chassis
Dongfeng 8x4 Heavy-Duty Off-Road Truck Prototype Chassis
Dongfeng 8x4 Heavy-Duty Off-Road Truck Prototype Chassis
Dongfeng 8x4 Heavy-Duty Off-Road Truck Prototype Chassis
Dongfeng 8x4 Heavy-Duty Off-Road Truck Prototype Chassis
Specifications
Packaging Details :
Nude Packed（Adjust according to the needs of different export countries）.
Fuel Tank Capacity :
380L
Price :
Pricing Tailored to Your Needs
Engine :
WP13.500E201
MOQ :
1
Overall Dimensions :
11400×2520×3580mm
Supply Ability :
Unlimited
Cab :
Flat-nose extended cab
Delivery Time :
5-7 working days; large orders depend on the factory's schedule.
Power :
368kW
Description

This 8×4 heavy-duty chassis is equipped with WP13.500E201 engine and 12-speed manual gearbox. It delivers strong load capacity with solid leaf spring suspension. Boasting 660mm fording depth, reliable approach and departure angles. It also serves as an excellent platform for cargo body modification, built for heavy transport and global export business.

Dongfeng 8x4 Heavy-Duty Off-Road Truck Prototype Chassis

Basic Configuration
Engine WP13.500E201
Cab Flat-nose extended cab
Frame 850×300 (8+6+4) mm
Axle 7T / 7T / 16T / 16T
Gearbox Manual 12-speed
Tyres 12R22.5 (12+1)

8x4 heavy-duty truck chassis with reliable approach & departure angles and great wading performance. Super reliable rugged platform customized for global transport vehicle refitting and export sales.

Detailed Specifications
Overall Dimensions 11400×2520×3580mm
Displacement 12.54L
Wheelbase 1950+4600+1350mm
GVW 31000kg
Approach Angle 20°
Minimum ground clearance 290mm
Fording depth 660mm
MAX.Speed 90km/h
Modified Dimension ≥8700mm
Power 368kW
Wheel span 2020/1820mm
Curb weight 11350kg
Departure Angle 12°
Fuel Tank Capacity 380L
Obstacle height 435mm
Suspension 9/9/10 Leaf spring

Note: All configurations are for reference only, subject to the real finished vehicle.
