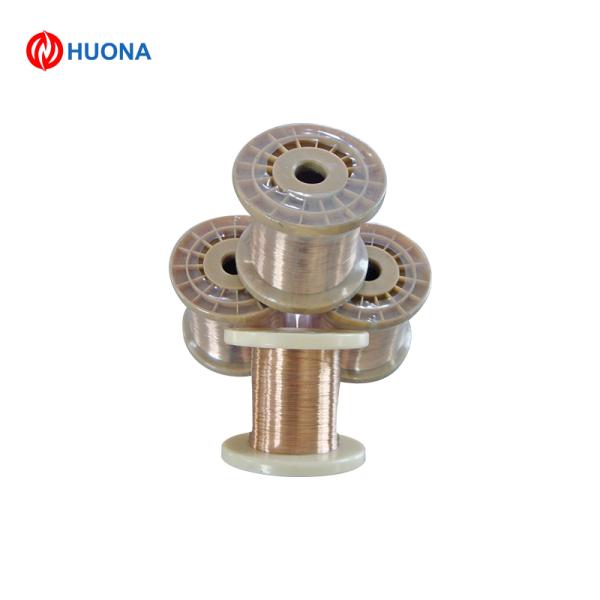

Tin Plated Copper Wire for Electronics with Custom Thickness
Tin Plated Copper Wire for Electronics with Custom Thickness
Specifications
Brand Name :
Huona
Model Number :
Tin Plated Copper Wire
Certification :
ISO9001,SGS
Place of Origin :
CHINA
MOQ :
10-50Kg
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,
Supply Ability :
500tons per month
Delivery Time :
5-21days
Packaging Details :
Carton/Wood case
Product Name :
Tin Plated Copper Wire
Tin Plating Thickness :
0.3um-3um (customizable)
Surface Finish :
Bright tin - plated(uniform coating)
Breaking Force :
5N-50N (varies by wirediameter)
Chemical Composition :
Tin and Copper
The Purity of Copper :
≥99.95%
Description
Tin Plated Copper Wire for Electronics with Custom Thickness
Product Attributes
Attribute Value
Product Name Tin Plated Copper Wire
Tin Plating Thickness 0.3um-3um (customizable)
Surface Finish Bright tin-plated (uniform coating)
Breaking Force 5N-50N (varies by wire diameter)
Chemical Composition Tin and Copper
The Purity of Copper ≥99.95%
Product Overview

Tinned copper wire integrates copper's high electrical conductivity with tin's solderability and corrosion resistance. The pure copper core ensures efficient current transmission, while the tin plating enhances solderability and protects against oxidation. It is widely used in electronics (circuit boards, connectors), electrical wiring, and automotive harnesses.

Standard Designations
  • Material Standards:
    • Copper: Complies with ASTM B3 (electrolytic tough-pitch copper)
    • Tin plating: Follows ASTM B545 (electrodeposited tin coatings)
  • Electrical conductors: Meets IEC 60228 standards
Key Features
  • High conductivity: Enables low-loss current transmission
  • Excellent solderability: Tin plating facilitates reliable soldering connections
  • Corrosion resistance: Protects copper core from oxidation and moisture damage
  • Good ductility: Allows easy bending and processing without breaking
  • Temperature stability: Performs stably in -40°C to 105°C environment
Technical Specifications
Attribute Value
Base Copper Purity ≥99.95%
Tin Plating Thickness 0.3μm–3μm (customizable)
Wire Diameters 0.3mm, 0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.6mm (customizable)
Tensile Strength 250–350 MPa
Elongation ≥20%
Electrical Conductivity ≥98% IACS
Operating Temperature -40°C to 105°C
Chemical Composition (Typical, %)
Component Content (%)
Copper (Core) ≥99.95
Tin (Plating) ≥99.5
Trace Impurities ≤0.5 (total)
Product Specifications
Item Specification
Available Lengths 50m, 100m, 500m, 1000m (customizable)
Packaging Spooled on plastic spools; packed in cartons or pallets
Surface Finish Bright tin-plated (uniform coating)
Breaking Force 5N–50N (varies by wire diameter)
OEM Support Custom labeling and packaging available

We also provide other plated copper wires such as silver-plated copper wire and nickel-plated copper wire. Free samples and detailed technical datasheets can be provided upon request. Custom specifications including tin plating thickness, wire diameter, and length are available to meet specific requirements.
